STEERING STEM

GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

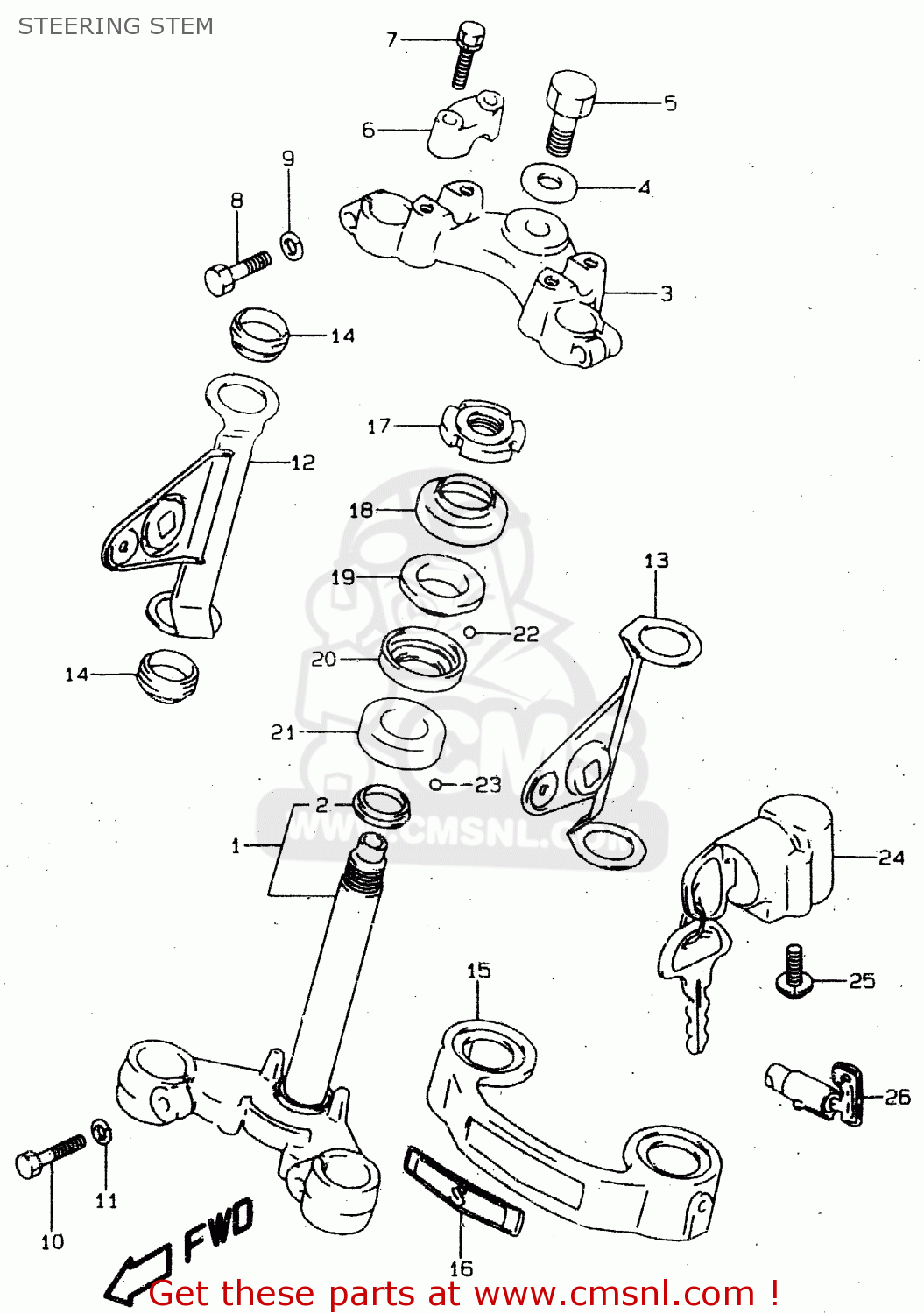

Steering stem diagram GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

STEERING STEM GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9
STEERING STEM GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9
STEERING STEM GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9
prices are in EUR
ref
part #
description
quantity
1
5141011311
ref: 1
STEM,STEERING
5141011311
€ 157.50
1
51410053B0
ref: 1
E18,E22
STEM,STEERING
51410053B0
€ 142.00
2
5162133001
ref: 2
RACE,STEERING OUTER LWR
5162133001
€ 10.00
3
5131111300291
ref: 3
HEAD,STEERING STEM(BLACK)
5131111300291
€ 128.00
4
5135622012
ref: 4
WASHER,STEM HEAD(10.5X30X3.2)
5135622012
€ 4.00
5
5135129400
ref: 5
BOLT,FR FORK(10X33)
5135129400
€ 25.00
6
5621129320291
ref: 6
HOLDER,HANDLE(BLACK)
5621129320291
€ 12.00
7
0125408357
ref: 7
BOLT
0125408357
€ 3.50
8
0150010407
ref: 8
BOLT
0150010407
€ 3.00
9
0832101107
ref: 9
WASHER,LOCK
0832101107
€ 2.00
10
5145128012
ref: 10
BOLT,FR FORK LWR(12X33)
5145128012
€ 11.50
11
0832101127
ref: 11
WASHER,LOCK
0832101127
€ 2.50
12
5153005300
ref: 12
BRACKET,HEADLAMP,R
€ 42.00
13
5154005300
ref: 13
BRACKET,HEADLAMP,L
5154005300
€ 42.00
14
5155311300
ref: 14
CUSHION,HEADLAMP BRACKET
5155311300
€ 3.50
15
5187105301
ref: 15
COVER,FR FORK
5187105301
€ 28.50
16
6821138300
ref: 16
EMBLEM,FR FORK COVER
6821138300
€ 13.50
17
5163128000
ref: 17
NUT,STEERING STEM(25X44X10)
5163128000
€ 12.50
18
5164325001
ref: 18
DUST SEAL,STEERING UPR
5164325001
€ 4.50
19
5162128000
ref: 19
RACE,STEERING OUTER UPR
5162128000
€ 7.00
20
5161120002
ref: 20
RACE,STEERING INNER UPR
5161120002
€ 5.50
21
5161133002
ref: 21
LACE,STEERING INNER LWR
5161133002
€ 7.00
22
0611106003
ref: 22
BALL
0611106003
€ 1.50
23
0611108003
ref: 23
BALL
0611108003
€ 1.50
24
5191025311
ref: 24
E1,E2,E4,E21,E30,E71
LOCK ASSY,STEERING
5191025311
€ 22.50
25
0211235123
ref: 25
E1,E2,E4,E21,E30,E71
SCREW
0211235123
€ 1.50
26
5190030901
ref: 26
E18
LOCK ASSY,STEERING(NEIMAN)
5190030901
€ 168.50
26
5190030901
ref: 26
E22, PURCHASE LOCALL
LOCK ASSY,STEERING(NEIMAN)
5190030901
€ 168.50
