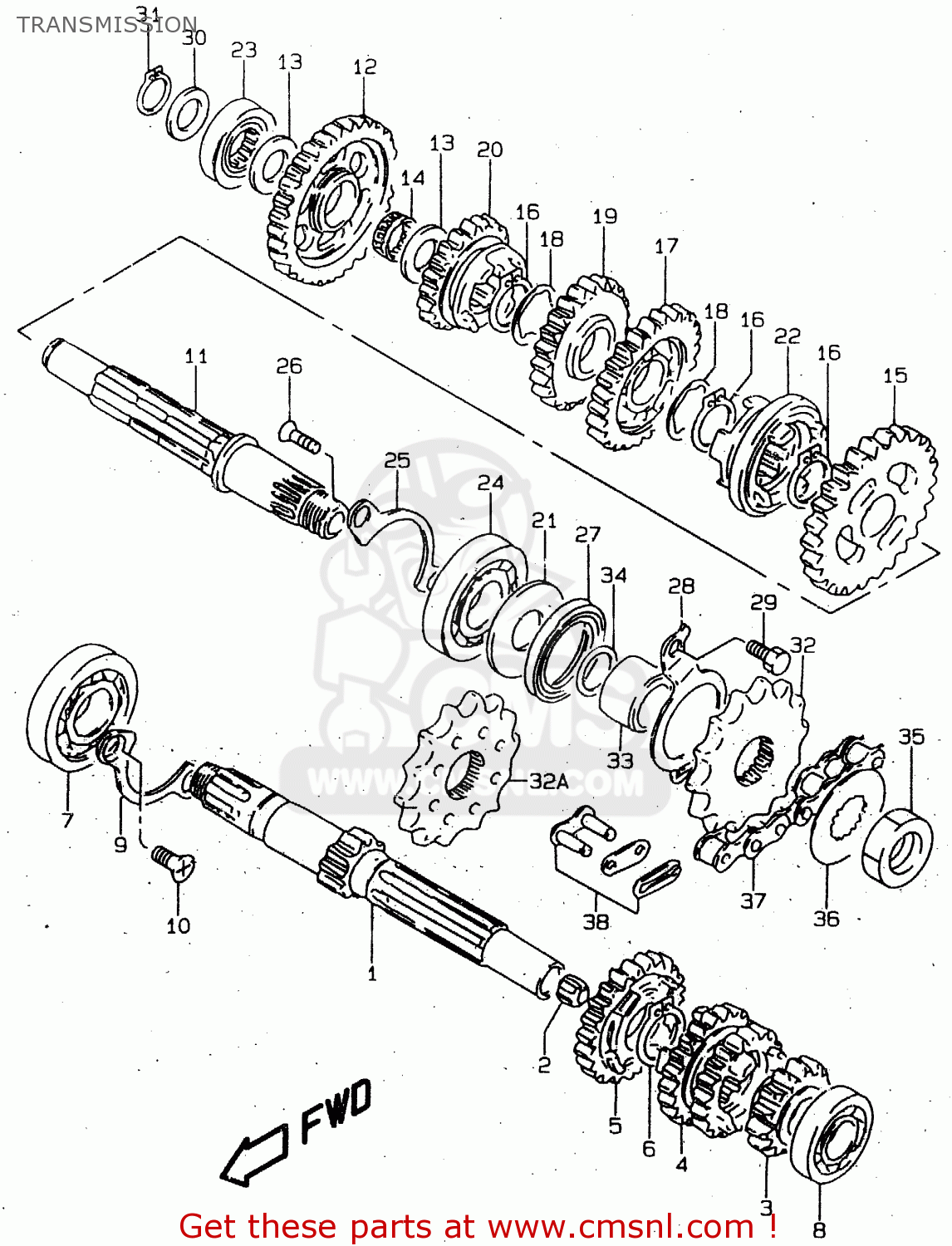

TRANSMISSION

ref

part #

description

quantity

1

2412005810
ref: 1

SHAFT,COUNTER (NT:11)

€ 97.00

2

2412538201
ref: 2

BUSH

€ 3.50

3

2422105301
ref: 3
<-24221-05300

GEAR,2ND DRIVE(NT:14)

€ 30.00

4

2423105203
ref: 4
<-24231-05202

GEAR,3RD & 4TH DRIVEN(NT:19/21

€ 61.50

5

2425105203
ref: 5
<-24251-05202

GEAR,FIFTH DRIVE (NT:23)

€ 54.50

6

0938020009
ref: 6

CIRCLIP

€ 2.00

7

0926220069
ref: 7

BEARING(20X47X14)

€ 28.00

8

0812360027
ref: 8

BEARING

€ 16.00

9

2474105200
ref: 9

RETAINER,DRIVE SHAFT BEARING

€ 3.50

10

0212206123
ref: 10

SCREW

€ 3.00

11

2413005300
ref: 11

SHAFT,DRIVE

€ 93.00

11

2413005310
ref: 11
E4,E22

SHAFT,DRIVE

€ 109.50

12

2431105201
ref: 12
<-24311-05200

GEAR,FIRST DRIVEN (NT:33)

€ 53.00

13

0821115251
ref: 13

WASHER

€ 2.00

14

0926315023
ref: 14

BEARING(15X19X7.8)

€ 10.50

15

2432005202
ref: 15
<-24320-05201

GEAR,2ND DRIVEN(NT:26)

€ 40.50

16

0938020009
ref: 16

CIRCLIP

€ 2.00

17

2433105203
ref: 17
<-24331-05201

GEAR,3RD DRIVEN(NT:26)

€ 50.00

18

0916720011
ref: 18

WASHER,LOCK

€ 2.50

19

2434105201
ref: 19
MODEL V

GEAR,FOURTH DRIVEN

€ 50.00

19

2434105203
ref: 19
MODEL W/X

GEAR,4TH DRIVEN(NT:23)

€ 50.00

20

2435105201
ref: 20
MODEL V

GEAR,FIFTH DRIVEN

€ 47.00

20

2435105202
ref: 20
MODEL W/X

GEAR,5TH DRIVEN(NT:21)

€ 47.00

21

2435905200
ref: 21

WASHER,OIL SEALING

€ 4.50

22

2442105300
ref: 22

WHEEL,SLIDING DOG

€ 33.00

23

0926315024
ref: 23

BEARING(15X33X12)

€ 50.00

24

0926220069
ref: 24

BEARING(20X47X14)

€ 28.00

25

2474105200
ref: 25

RETAINER,DRIVE SHAFT BEARING

€ 3.50

26

0212206123
ref: 26

SCREW

€ 3.00

27

0928327010
ref: 27

SEAL,OIL(27X40X6)

€ 8.00

28

2475105201
ref: 28
MODEL V

PLATE,DRIVESHAFT OIL

€ 3.00

28

2475105210
ref: 28
MODEL W/X

RETAINER,DRIVE SHAFT OIL SEAL

€ 3.00

29

0150006103
ref: 29

BOLT

€ 2.00

30

0918115111
ref: 30

SHIM(15X20X1)

€ 2.50

31

0833131156
ref: 31

CIRCLIP

€ 2.00

32

2751141310
ref: 32

SPROCKET,ENGINE

€ 19.00

32A

2751041730
ref: 32A
E4,E22

SPROCKET,ENGINE(NT:14)

€ 56.00

33

2753105200
ref: 33

SPACER

€ 13.50

34

0928019005
ref: 34

O RING(D:2.4,ID:19)

€ 2.00

35

0914016017
ref: 35

NUT

€ 4.00

36

0916720012
ref: 36

WASHER,LOCK

€ 2.50

36

0916720006
ref: 36
MODEL V/W E4,E22

WASHER,LOCK

€ 3.00

36

0916720030
ref: 36
MODEL X E4,E22

WASHER

€ 2.50

37

2760029B20124
ref: 37
L:124->114

CHAIN,DRIVE

€ 128.00

38

2762040220
ref: 38

JOINT(RK)

€ 7.00
