FRAME

GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

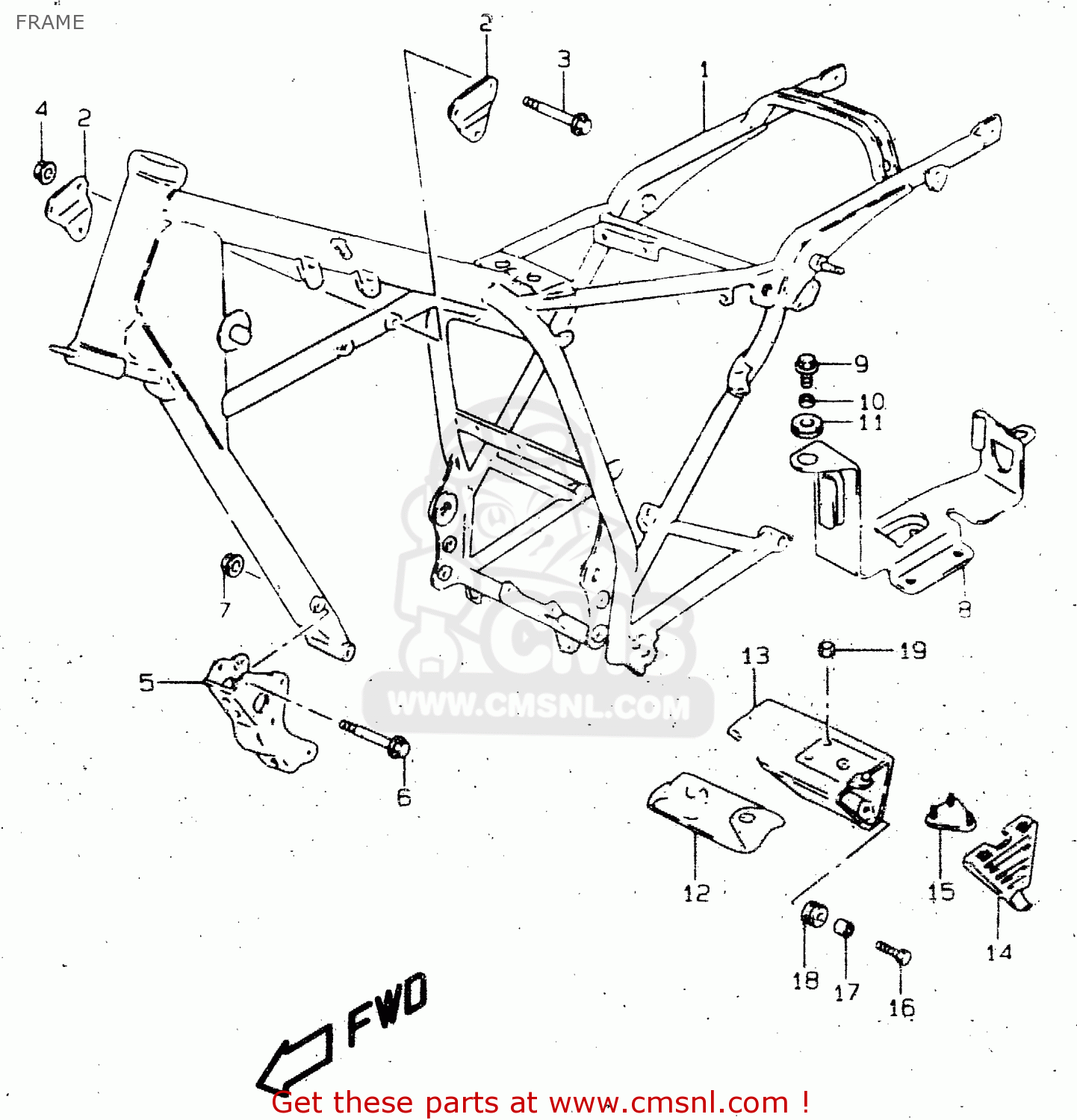

Frame diagram GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

FRAME GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

FRAME GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

prices are in EUR

ref

part #

description

quantity

1

41100053E0019
ref: 1

FRAME COMP

€ 926.00

1

41100053F0019
ref: 1
E18,E22

FRAME (BLACK)

€ 926.00

2

4199105300
ref: 2

PLATE,ENGINE MOUNTING

€ 3.50

3

0910308081
ref: 3

BOLT(8X50)

€ 3.50

4

0831931087
ref: 4

NUT

€ 2.50

5

4199205300
ref: 5

BRACKET,ENGINE MOUNTING LWR

€ 9.00

6

0155008657
ref: 6

BOLT

€ 3.00

7

0831931087
ref: 7

NUT

€ 2.50

8

4154038301
ref: 8

HOLDER,BATTERY

€ 18.50

9

0911606168
ref: 9

BOLT(6X16)

€ 2.50

10

0918006038
ref: 10

SPACER(6.1X9X7.5)

€ 2.00

11

0932008021
ref: 11

CUSHION

€ 4.00

12

0980021020
ref: 12

TOOL ASSY

€ 33.50

13

4743105300
ref: 13

BOX,TOOL

€ 15.00

14

4743205300
ref: 14

CAP,TOOL BOX

€ 2.50

15

4744005301
ref: 15

PLATE,TOOL HOLDER

€ 3.00

16

0911606168
ref: 16

BOLT(6X16)

€ 2.50

17

0918006038
ref: 17

SPACER(6.1X9X7.5)

€ 2.00

18

0932008021
ref: 18

CUSHION

€ 4.00

19

0831610063
ref: 19

NUT

€ 2.50
