CYLINDER HEAD

GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

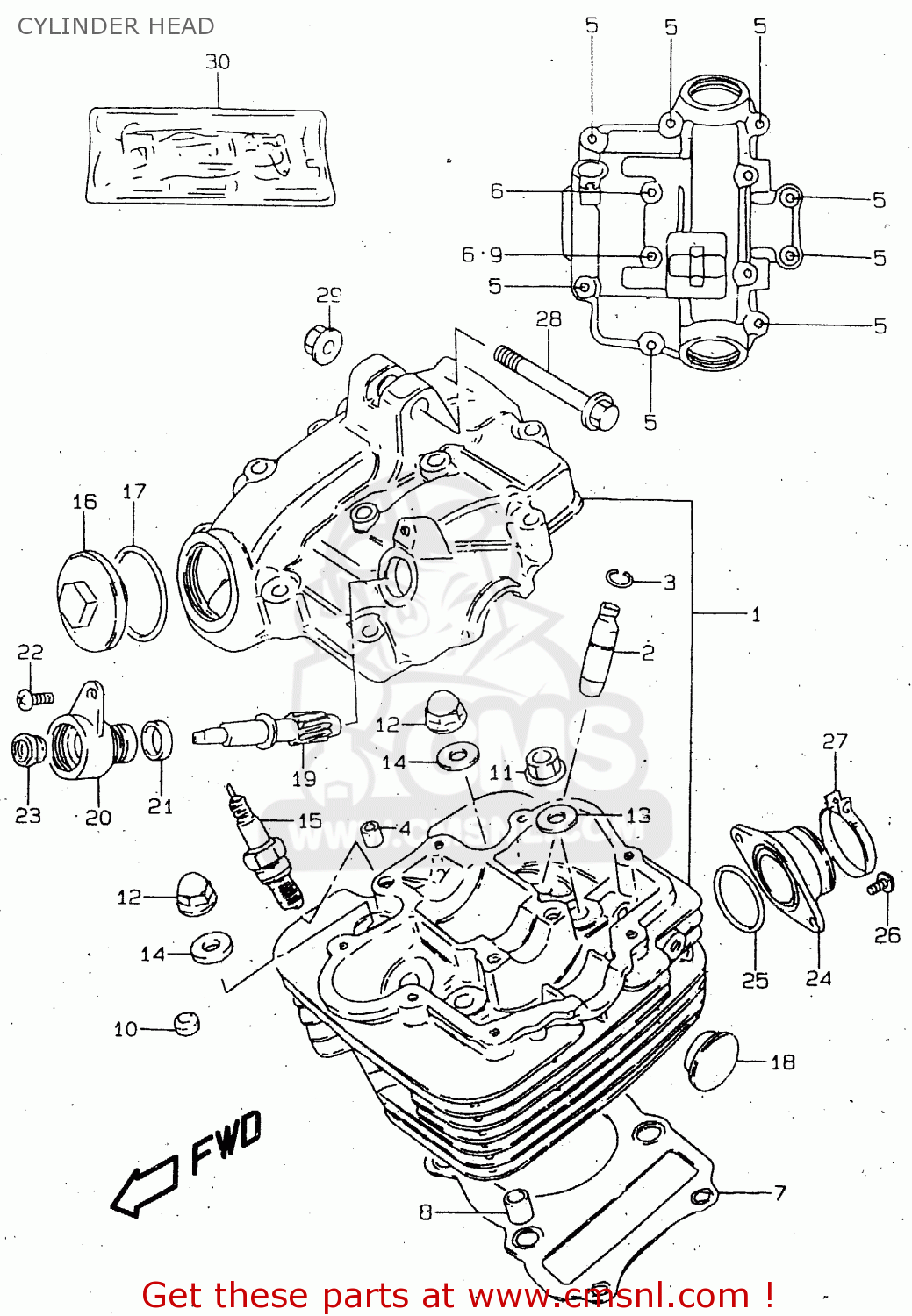

Cylinder head diagram GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

CYLINDER HEAD GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9
CYLINDER HEAD GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9
CYLINDER HEAD GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9
prices are in EUR
ref
part #
description
quantity
1
1110005263
ref: 1
HEAD ASSY,CYLINDER
€ 727.50
2
1111505270
ref: 2
GUIDE,VALVE
1111505270
€ 18.50
3
0938110004
ref: 3
RING,SNAP
0938110004
€ 1.50
4
0920608001
ref: 4
PIN(6.2X8X11)
0920608001
€ 2.00
5
0155006357
ref: 5
BOLT
0155006357
€ 2.50
6
0155006607
ref: 6
BOLT
0155006607
€ 2.50
7
1114105201
ref: 7
GASKET,CYLINDER HEAD (NAS)
1114105201
€ 7.50
8
0421111169
ref: 8
PIN
0421111169
€ 2.00
9
0916806023
ref: 9
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
10
1115145000
ref: 10
PAD,CYLINDER HEAD
1115145000
€ 3.00
11
0831610083
ref: 11
NUT
0831610083
€ 3.00
12
0915908049
ref: 12
NUT
0915908049
€ 7.00
13
0916008053
ref: 13
<-09160-08039
WASHER (8.5X19X2.3)
0916008053
€ 2.00
14
0916808021
ref: 14
GASKET(8.5X17X2.3) (NAS)
0916808021
€ 3.00
15
0948200144
ref: 15
MODEL V E30
SPARK PLUG D8EA
0948200144
€ 3.50
15
0948200145
ref: 15
MODEL V E30
SPARK PLUG X24ES-U
€ 3.50
15
0948200399
ref: 15
E2,E4,E18,E21,E22,E7
PLUG,SPARK(DR8EA)
0948200399
€ 3.50
15
0948200223
ref: 15
E2,E4,E18,E21,E22,E7
PLUG,SPARK(X24ESR-U)
€ 3.50
15
0948200144
ref: 15
GN125V E1
SPARK PLUG D8EA
0948200144
€ 3.50
15
0948200145
ref: 15
GN125V E1
SPARK PLUG X24ES-U
€ 3.50
15
0948200399
ref: 15
GN125EV E1
PLUG,SPARK(DR8EA)
0948200399
€ 3.50
15
0948200223
ref: 15
GN125EV E1
PLUG,SPARK(X24ESR-U)
€ 3.50
16
1117537111
ref: 16
MODEL V
CAP,INSPECTION HOLE
1117537111
€ 14.00
16
1117518900
ref: 16
MODEL W/X
CAP,INSPECTION
€ 14.00
17
0928030001
ref: 17
O RING(D:3,ID:29.5)
0928030001
€ 2.00
18
0924122002
ref: 18
PLUG(OD:22.5)
0924122002
€ 5.50
19
2643105201
ref: 19
GEAR,TACHOMETER DRIVEN
2643105201
€ 21.50
20
2644149000
ref: 20
SLEEVE,TACHOMETER DRIVE GEAR
2644149000
€ 18.00
21
2645145000A
ref: 21
SEAL,TACHOMETER DRIVEN
2645145000A
€ 4.50
22
0912805101
ref: 22
SCREW(5X12)
0912805101
€ 1.50
23
0928905002
ref: 23
SEAL,OIL(5X12X8)
0928905002
€ 11.00
24
1311005300
ref: 24
PIPE,INTAKE
1311005300
€ 33.50
24
1311005370
ref: 24
GN125UV/UW/UX E22
PIPE,INTAKE
1311005370
€ 21.00
25
0928032006
ref: 25
O RING(D:2.4,ID:31.7)
0928032006
€ 2.50
25
0928032006
ref: 25
GN125UVE22, ~F.NO.24
O RING(D:2.4,ID:31.7)
0928032006
€ 2.50
26
0211236163
ref: 26
SCREW
0211236163
€ 2.50
26
0913906014
ref: 26
GN125UV/UW/UX E22
SCREW(6X16)
0913906014
€ 2.50
27
0940244208
ref: 27
CLAMP
0940244208
€ 5.50
28
0910308081
ref: 28
BOLT(8X50)
0910308081
€ 3.50
29
0831931087
ref: 29
NUT
0831931087
€ 2.50
30
1140105862
ref: 30
~F.NO.239071
GASKET SET (NAS)
€ 79.50
30
1140105863
ref: 30
F.NO.239072~
GASKET SET (NAS)
€ 79.50
