HEADLAMP (E4,E18,E21,E22)

GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

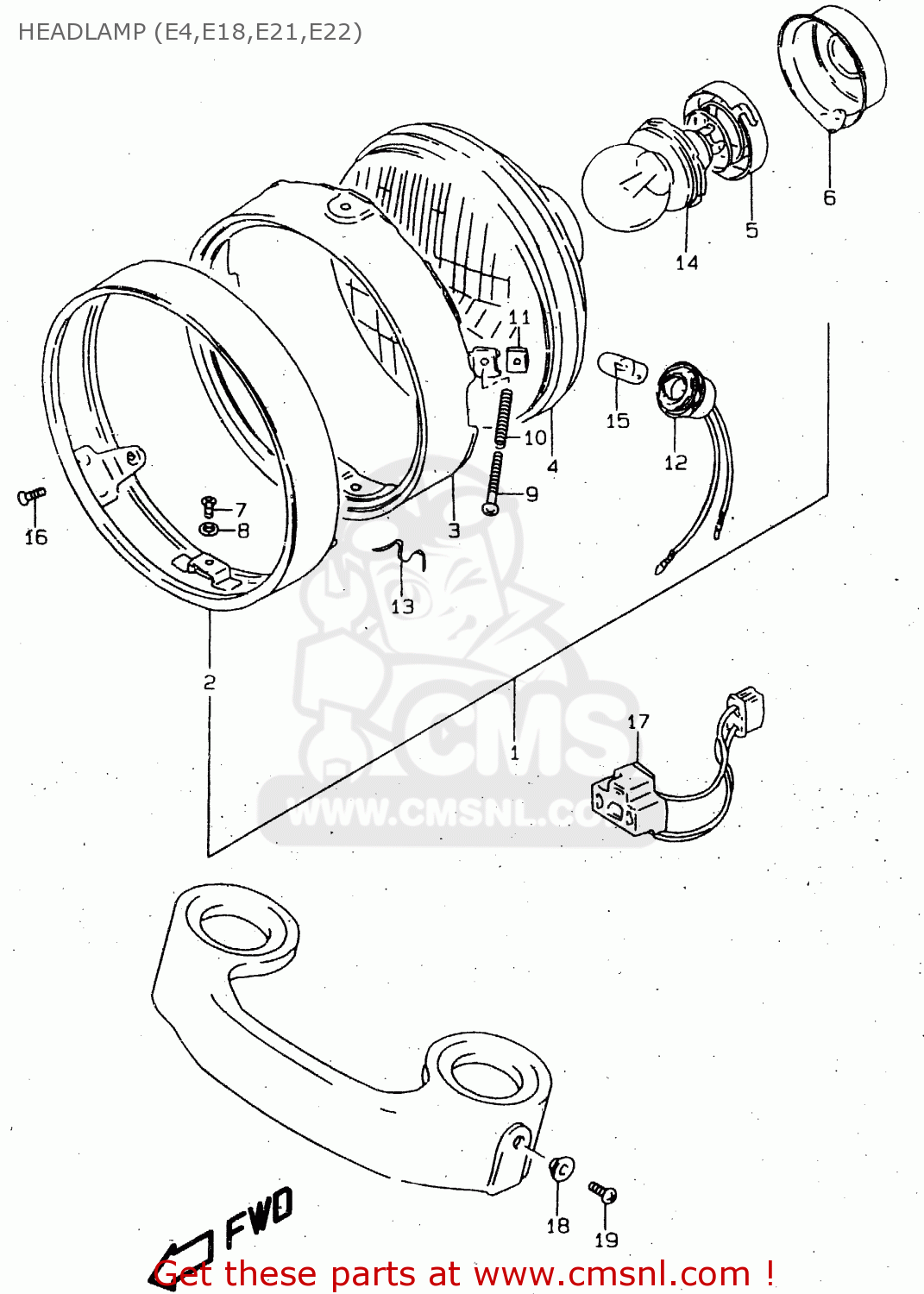

Headlamp (e4,e18,e21,e22) diagram GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

prices are in EUR

ref

part #

description

quantity

3510044260999
ref: 1

HEADLAMP ASSY

€ 138.50

3511144250
ref: 2

RIM

€ 34.50

3512729610
ref: 3

RETAINER

€ 15.50

3512144260
ref: 4

LAMP UNIT

€ 67.00

3513634670
ref: 5

SETTER,BULB

€ 4.00

3517972600
ref: 6

COVER,HEADLAMP BULB

€ 4.00

3513629610
ref: 7

SCREW

€ 3.00

0832101057
ref: 8

WASHER,LOCK

€ 2.00

3515131610
ref: 9

SCREW

€ 4.00

3515433630
ref: 10

SPRING

€ 2.50

3515215611
ref: 11

NUT

€ 3.50

3611830500
ref: 12

SOCKET

€ 10.00

3512846720
ref: 13

SPRING

€ 4.50

0947112048
ref: 14
PURCHASE LOCALLY

BULB(12V45/40W)

€ 7.50

0947112063
ref: 15
PURCHASE LOCALLY

BULB(12V4W)

€ 6.00

0212205127
ref: 16

SCREW

€ 2.50

3685330500
ref: 17

LEAD WIRE,HEADLAMP

€ 13.00

0916905008
ref: 18

WASHER

€ 3.00

0214205087
ref: 19

SCREW

€ 2.00
