CRANKCASE COVER

GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

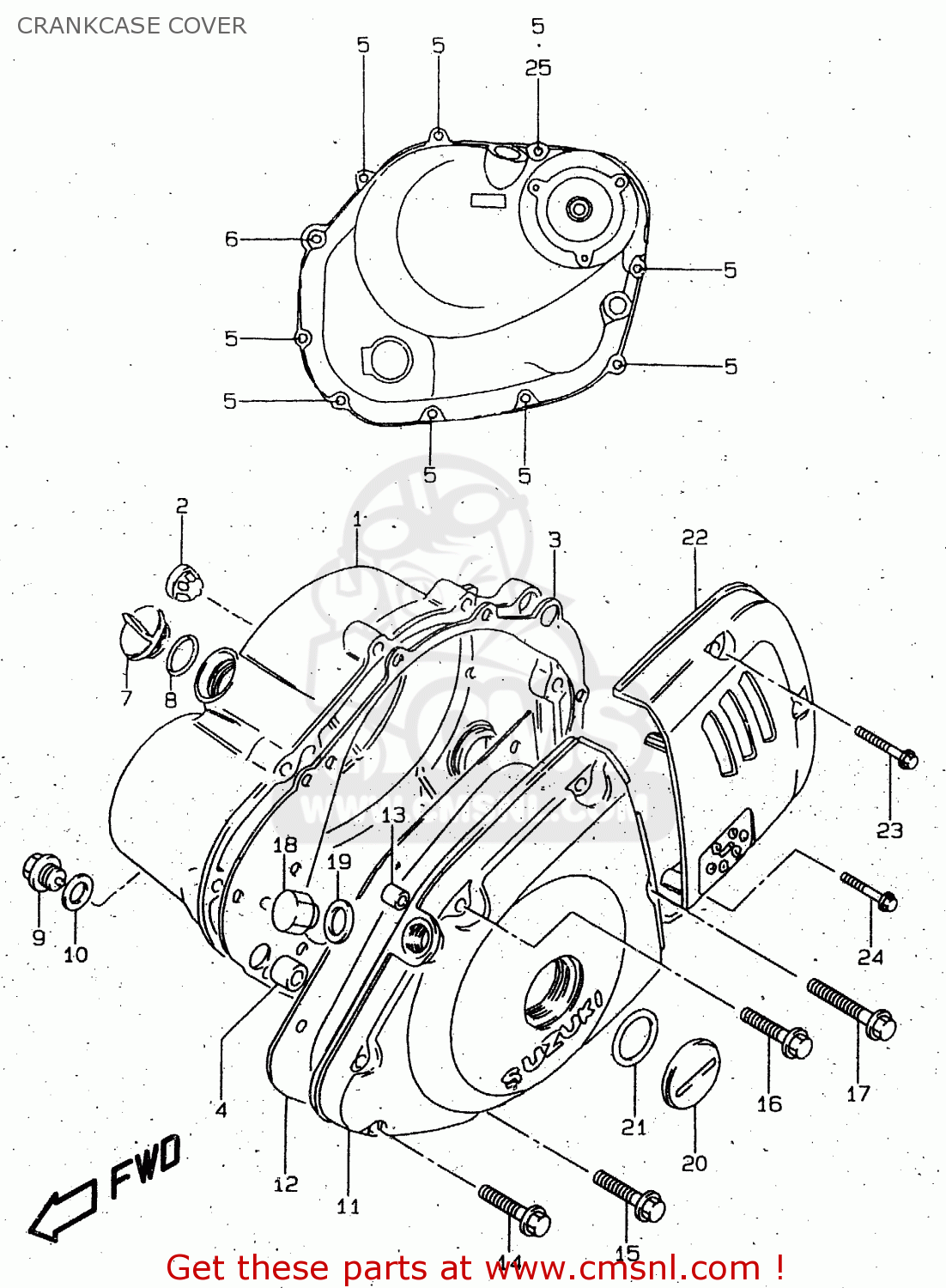

Crankcase cover diagram GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

CRANKCASE COVER GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9
CRANKCASE COVER GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9
CRANKCASE COVER GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9
prices are in EUR
ref
part #
description
quantity
1
1134005303
ref: 1
COVER,CLUTCH
1134005303
€ 112.50
2
1197145010
ref: 2
LENS,OIL LEVEL CHECK
1197145010
€ 13.00
3
1148205311
ref: 3
GASKET,CLUTCH COVER (NAS)
1148205311
€ 16.00
4
0421113189
ref: 4
PIN
0421113189
€ 2.50
5
0154706307
ref: 5
BOLT
0154706307
€ 2.50
6
0154706457
ref: 6
BOLT
0154706457
€ 2.50
7
0925920007
ref: 7
PLUG(20X10)
0925920007
€ 6.50
8
0928017003
ref: 8
O RING(D:3.1,ID:16.8)
0928017003
€ 2.00
9
0924714026
ref: 9
PLUG(14X12)
0924714026
€ 3.50
10
0916814002
ref: 10
GASKET(13.8X18.8X4.8) (NAS)
0916814002
€ 2.50
11
1135105302
ref: 11
COVER,MAGNETO
1135105302
€ 100.00
12
1148305311
ref: 12
~F.NO.239071
GASKET,MAGNETO COVER (NAS)
1148305311
€ 8.50
12
1148305312
ref: 12
F.NO.239072~
GASKET,MAGNETO COVER (NAS)
1148305312
€ 8.50
13
0421109129
ref: 13
PIN
0421109129
€ 2.00
14
0154706307
ref: 14
BOLT
0154706307
€ 2.50
15
0154706357
ref: 15
BOLT
0154706357
€ 2.50
16
0154706407
ref: 16
BOLT
0154706407
€ 2.50
17
0154706507
ref: 17
BOLT
0154706507
€ 2.50
18
0924712104
ref: 18
PLUG,12X9
0924712104
€ 2.50
19
0916812002
ref: 19
GASKET(12.1X16.2X3.7) (NAS)
0916812002
€ 2.00
20
0925926011
ref: 20
PLUG(26X9)
0925926011
€ 8.50
21
0928022008
ref: 21
O RING(D:3.1,ID:22.7)
0928022008
€ 2.50
22
1136105301
ref: 22
COVER,ENGINE SPROCKET
1136105301
€ 22.50
23
0154705357
ref: 23
BOLT
0154705357
€ 2.50
24
0154705257
ref: 24
BOLT
0154705257
€ 2.00
25
0916806024
ref: 25
GASKET(5.8X11X1.2) (NAS)
0916806024
€ 2.00
