REAR SHOCK ABSOBER

GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

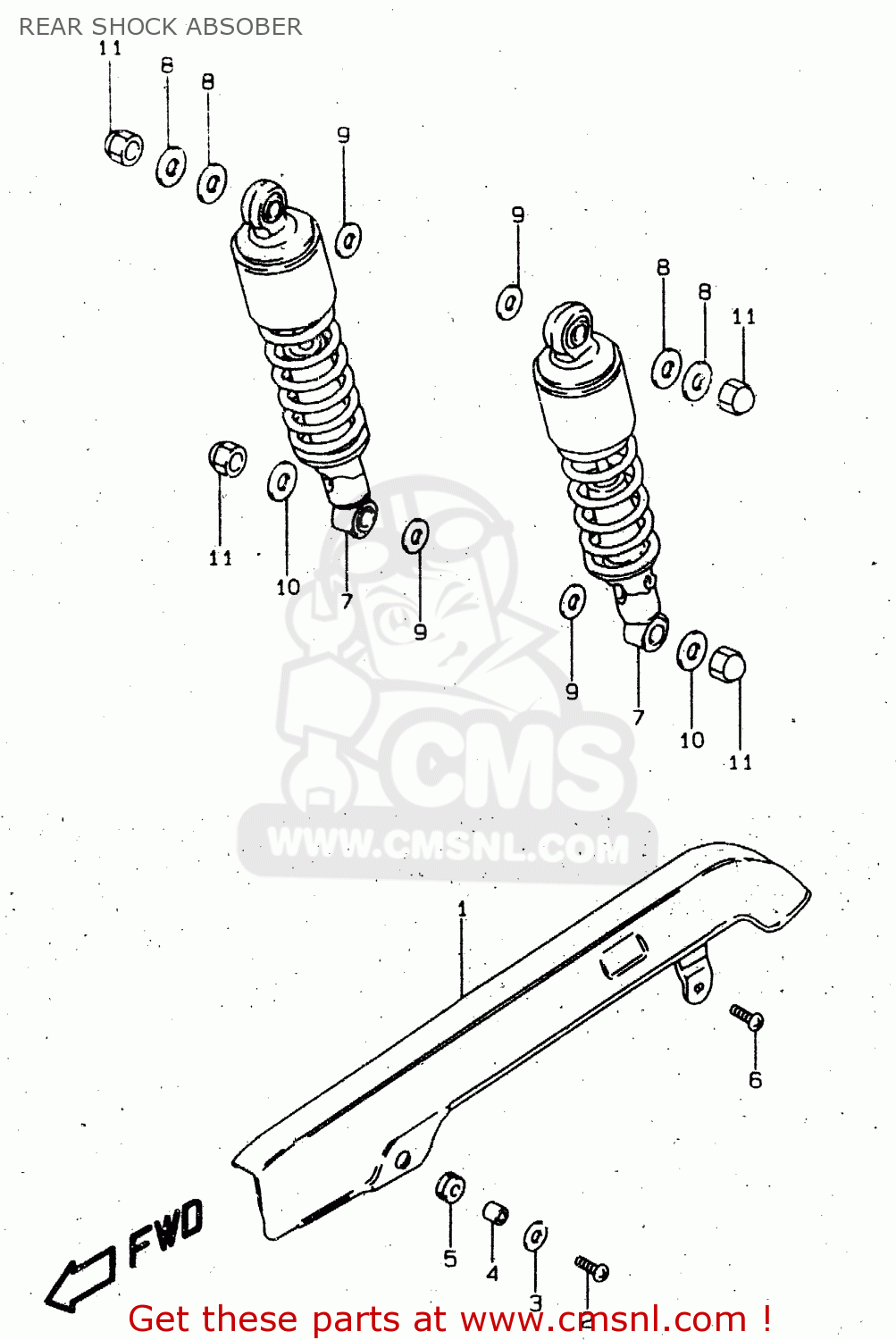

Rear shock absober diagram GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

REAR SHOCK ABSOBER GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

REAR SHOCK ABSOBER GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

prices are in EUR

ref

part #

description

quantity

1

6131005301
ref: 1

CASE,CHAIN

€ 43.50

2

0211236163
ref: 2

SCREW

€ 2.50

3

0916006077
ref: 3

WASHER(6.5X20X1.2)

€ 2.00

4

0918006259
ref: 4

SPACER(6.5X9X7)

€ 2.50

5

0932008021
ref: 5

CUSHION

€ 4.00

6

0211236163
ref: 6

SCREW

€ 2.50

7

6210005330
ref: 7

ABSORBER ASSY,RR SHOCK

€ 178.00

8

0916010127
ref: 8
E2,E4,E21,E71,P9, GN

WASHER (10.5X24X2.3)

€ 2.00

8

0916010127
ref: 8
E18,E22,E30, GN125EV

WASHER (10.5X24X2.3)

€ 2.00

9

0916012090
ref: 9

WASHER (12.5X26X1.6)

€ 2.00

10

0916010127
ref: 10

WASHER (10.5X24X2.3)

€ 2.00

11

0831310107
ref: 11

NUT

€ 2.50
