ELECTRICAL

GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

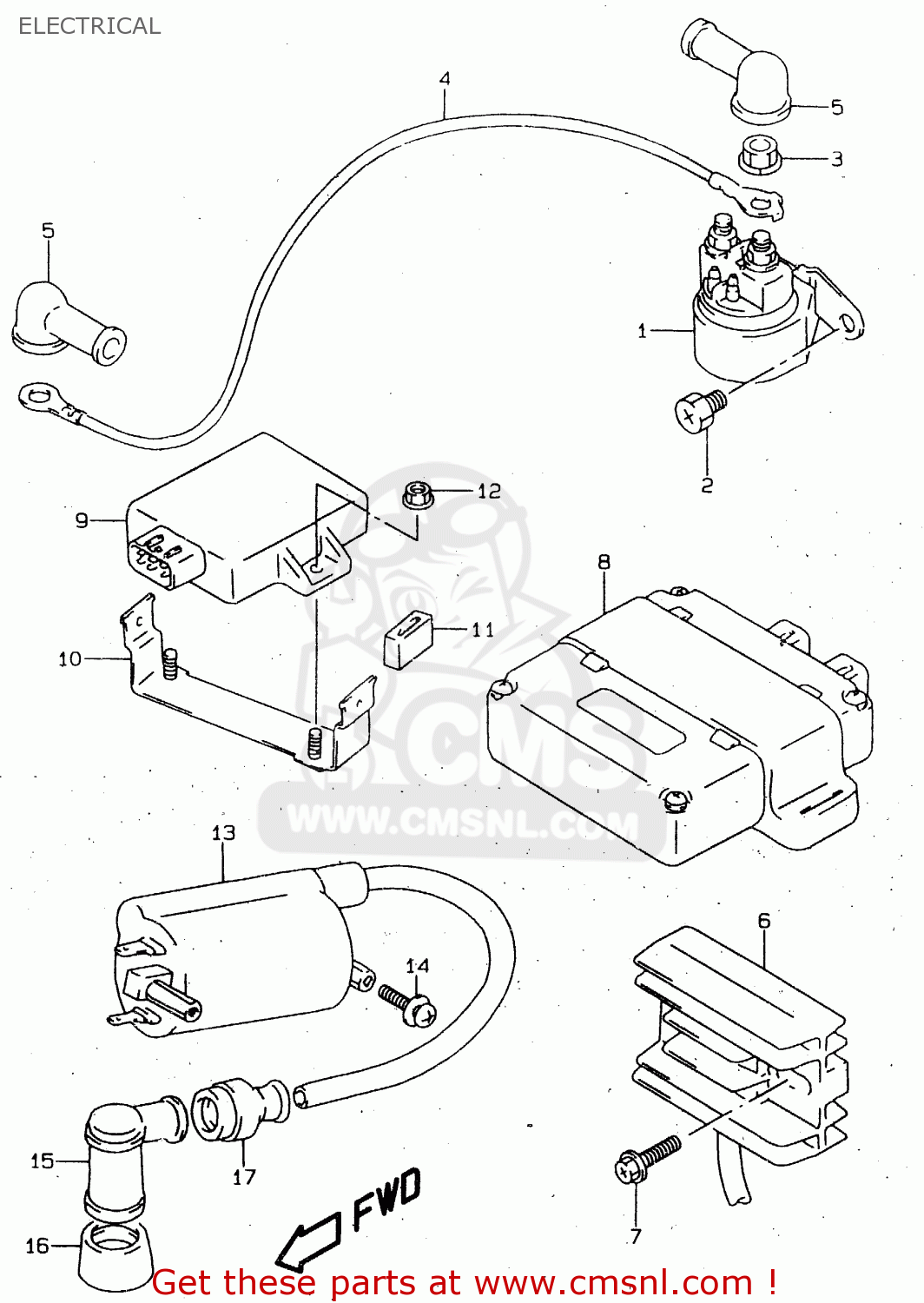

Electrical diagram GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

ELECTRICAL GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9
ELECTRICAL GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9
ELECTRICAL GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9
prices are in EUR
ref
part #
description
quantity
1
3180049100
ref: 1
RELAY ASSY,STARTING MOTOR
3180049100
€ 89.00
2
0912806004
ref: 2
MODEL V/W
SCREW(6X10)
0912806004
€ 1.50
2
0912806044
ref: 2
MODEL X
SCREW(6X10)
0912806044
€ 1.50
3
0836135068
ref: 3
NUT
0836135068
€ 2.00
4
3385005301
ref: 4
WIRE,STARTER MOTOR
3385005301
€ 16.50
5
3186131500
ref: 5
CAP,TERMINAL
3186131500
€ 3.00
6
3280029B00
ref: 6
RECTIFIER ASSY
3280029B00
€ 266.50
7
0912806057
ref: 7
BOLT(6X20)
0912806057
€ 2.00
8
3290005300
ref: 8
IGNITOR UNIT
3290005300
€ 435.00
9
3290005330
ref: 9
E4
IGNITOR ASSY
€ 0.00
9
3290005340
ref: 9
E22
IGNITOR ASSY
€ 0.00
10
32931053A0
ref: 10
E4,E22
BRACKET,IGNITOR
€ 0.00
11
3298005300
ref: 11
E4,E22
CUSHION,IGNITOR
€ 8.00
12
0831610063
ref: 12
E4,E22
NUT
0831610063
€ 2.50
13
3341005350
ref: 13
COIL ASSY,IGNITION
3341005350
€ 128.00
14
0214205103
ref: 14
SCREW
0214205103
€ 2.50
15
3351022010
ref: 15
CAP ASSY,SPARK PLUG
3351022010
€ 16.50
16
3354124510
ref: 16
SEAL,SPARK PLUG CAP
3354124510
€ 7.00
17
3354238B00
ref: 17
SEAL,HIGH TENSION CORD
3354238B00
€ 4.50
