HEADLAMP (GN125E E1,E30)

GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

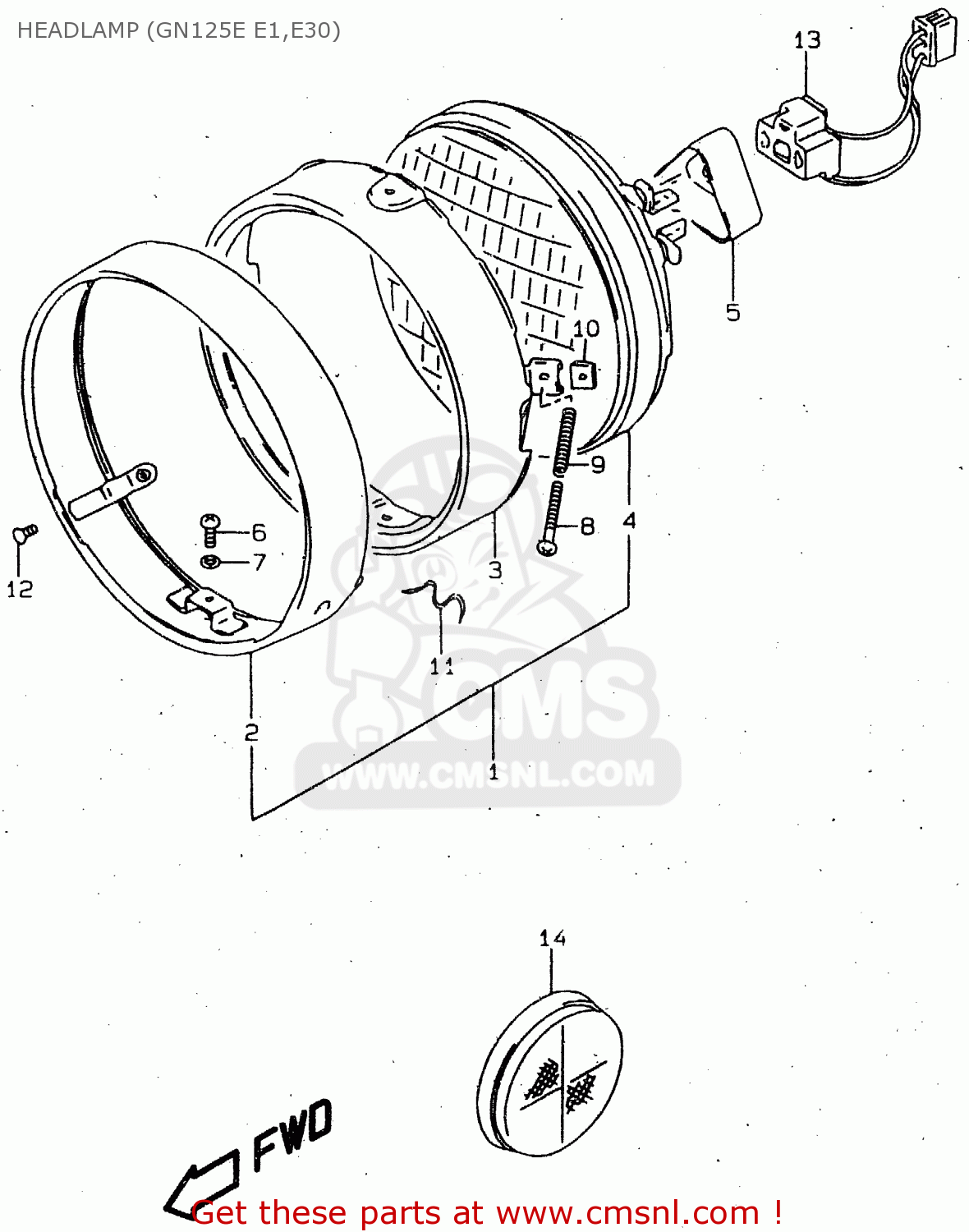

Headlamp (gn125e e1,e30) diagram GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

HEADLAMP (GN125E E1,E30) GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

HEADLAMP (GN125E E1,E30) GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

prices are in EUR

ref

part #

description

quantity

1

3510044250
ref: 1

LAMP ASSEMBLY,HEAD

€ 124.00

2

3511144250
ref: 2

RIM

€ 34.50

3

3512729610
ref: 3

RETAINER

€ 15.50

4

3512144250
ref: 4
12V,45/40W

LAMP UNIT

€ 124.00

5

3517329610
ref: 5

COVER

€ 3.00

6

3513629610
ref: 6

SCREW

€ 3.00

7

0832101057
ref: 7

WASHER,LOCK

€ 2.00

8

3515131610
ref: 8

SCREW

€ 4.00

9

3515433630
ref: 9

SPRING

€ 2.50

10

3515215611
ref: 10

NUT

€ 3.50

11

3512829611
ref: 11

SPRING,HEAD LAMP UNIT

€ 3.50

12

0211205127
ref: 12

SCREW

€ 2.50

13

3685330500
ref: 13

LEAD WIRE,HEADLAMP

€ 13.00

14

3595049080
ref: 14

REFLEX REFLECTOR,RR

€ 17.50
