FRONT MASTER CYLINDER

GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

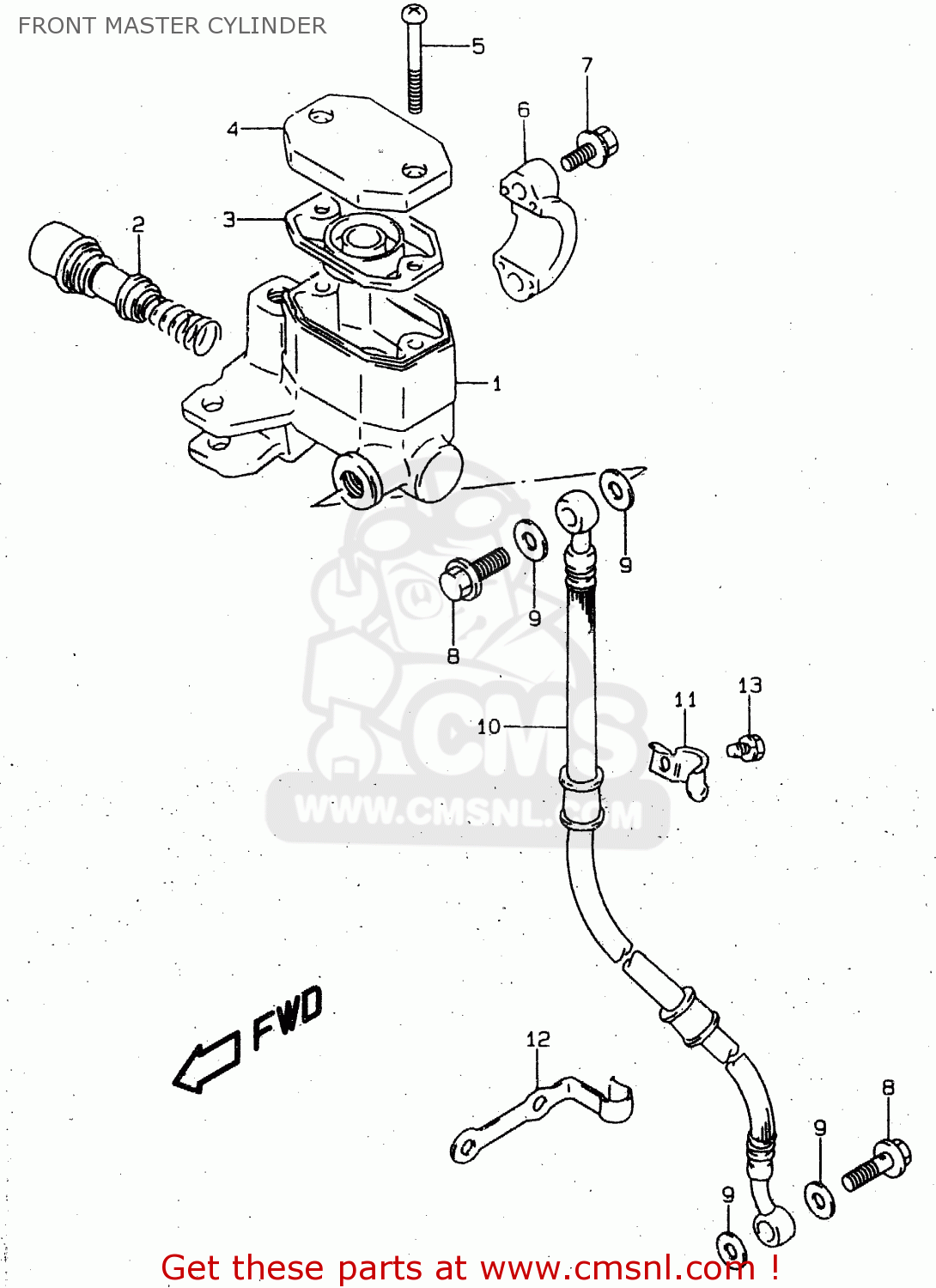

Front master cylinder diagram GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

FRONT MASTER CYLINDER GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

FRONT MASTER CYLINDER GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

prices are in EUR

ref

part #

description

quantity

1

5960005360
ref: 1

CYLINDER ASSY,FR MASTER

€ 263.00

2

5960004810
ref: 2

PISTON/CUP SET

€ 37.50

3

5966736500
ref: 3

DIAPHRAGM

€ 8.00

4

5966936510
ref: 4

CAP

€ 9.00

5

5969136500
ref: 5

SCREW

€ 1.50

6

5967105300
ref: 6

HOLDER

€ 13.00

7

5967519C00
ref: 7

BOLT(6X25)

€ 3.00

8

0936010039
ref: 8

BOLT UNION

€ 6.50

9

0916110009
ref: 9

WASHER(10X15X1.5)

€ 2.00

10

5948005350
ref: 10

HOSE,FR BRAKE

€ 86.50

11

5924639100
ref: 11

CLAMP,BRAKE HOSE

€ 5.00

12

5926811300
ref: 12

CLAMP,BRAKE HOSE

€ 5.50

13

0157006123
ref: 13

BOLT

€ 1.50
