MUFFLER

GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

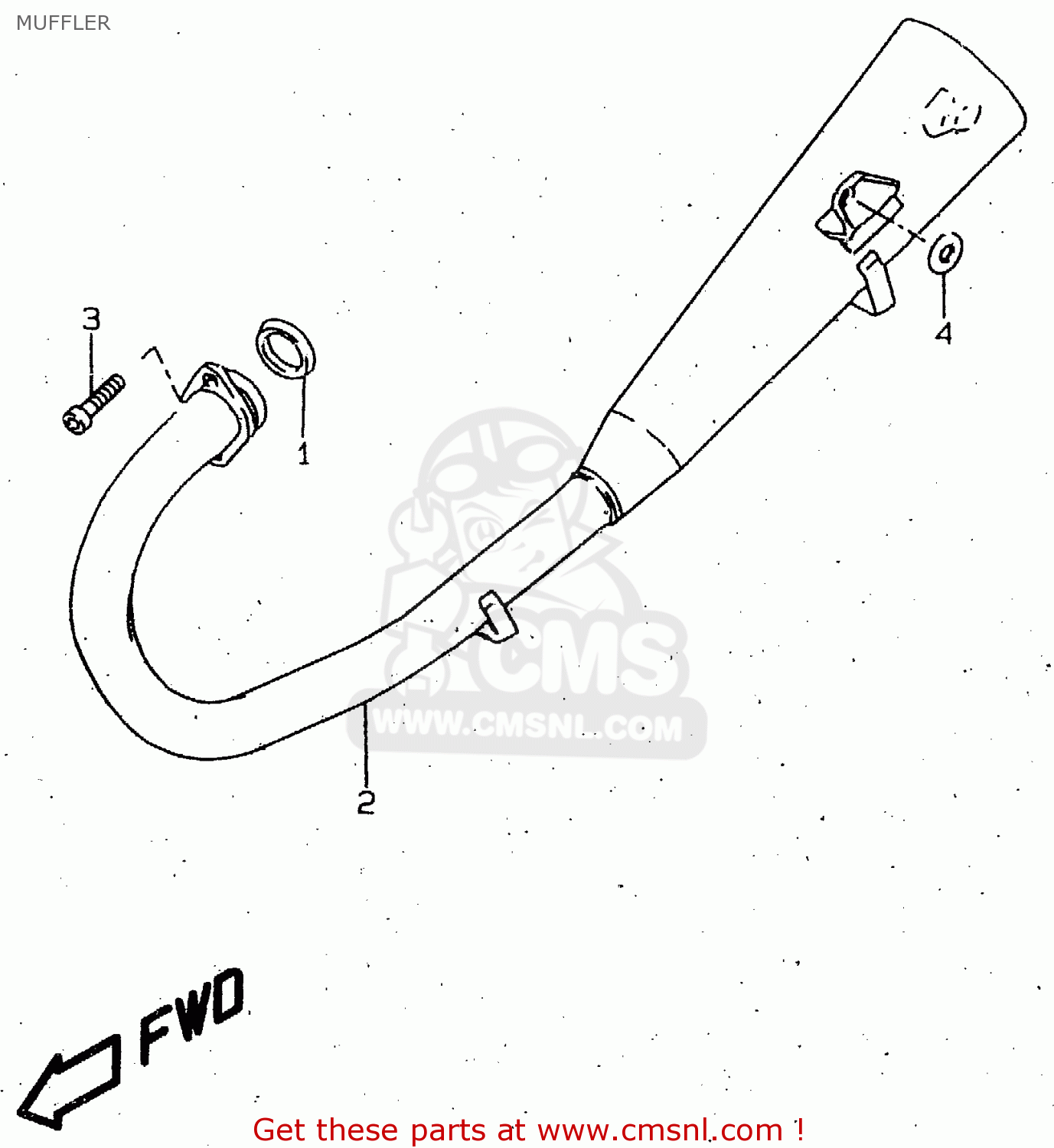

Muffler diagram GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

prices are in EUR

ref

part #

description

quantity

1418118000
ref: 1

GASKET, EXHAUST PIPE

€ 0.00

14305053A0
ref: 2
E2,E21,E71,P9

MUFFLER ASSY

€ 228.50

1430505313H01
ref: 2
E18,E30

MUFFLER ASSEMBLY

€ 213.50

14305053B0
ref: 2
E4,E22

MUFFLER

€ 295.00

14305053A0
ref: 2
GN125V E1

MUFFLER ASSY

€ 228.50

1430505313H01
ref: 2
GN125EV E1

MUFFLER ASSEMBLY

€ 213.50

0713008253
ref: 3

BOLT

€ 3.50

0832201103
ref: 4

WASHER

€ 2.50
