FOOTREST

GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

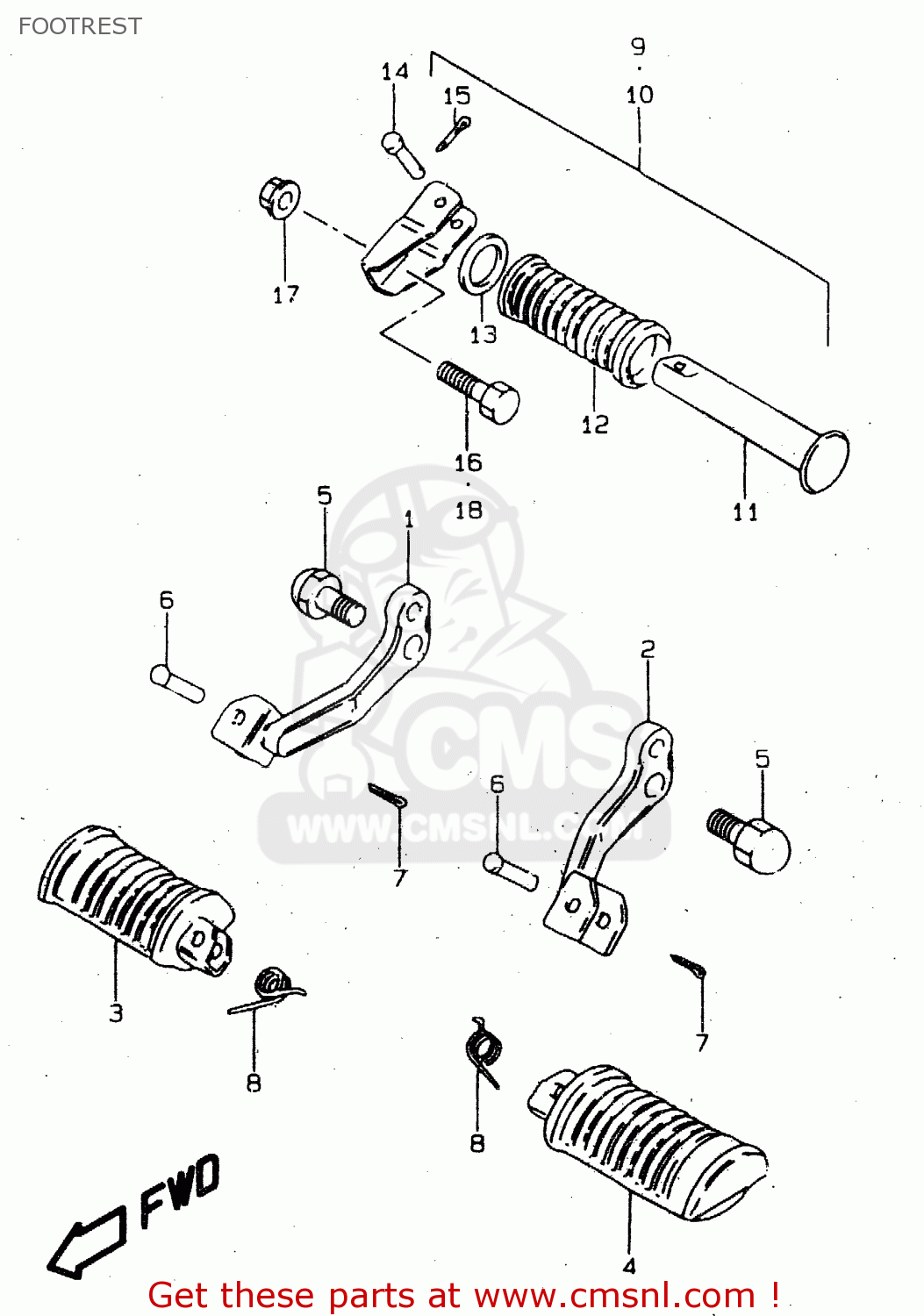

Footrest diagram GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

FOOTREST GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

FOOTREST GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

prices are in EUR

ref

part #

description

quantity

1

4351005330
ref: 1

HOLDER,FR FOOTREST,R

€ 35.50

2

4352005330
ref: 2

HOLDER,FR FOOTREST,L

€ 35.50

3

4355037301
ref: 3

RUBBER,PILLION FOOTREST,R

€ 22.50

4

4356037301
ref: 4

RUBBER,PILLION FOOTREST,L

€ 22.50

5

0155012257
ref: 5

BOLT

€ 2.50

6

0920008002
ref: 6

PIN

€ 2.00

7

0411120208
ref: 7

PIN 20X20

€ 1.50

8

0944814012
ref: 8

SPRING

€ 3.00

9

4360005301
ref: 9

FOOTREST ASSY,PILLION,R

€ 21.00

10

4370005301
ref: 10

FOOTREST ASSY,PILLION,L

€ 21.00

11

4361003001
ref: 11

BAR,FOOTREST RUBBER

€ 5.50

12

4361233200
ref: 12

RUBBER,PILLION FOOTREST

€ 4.50

13

0916019006
ref: 13
MODEL V

WASHER (19.5X32X2)

€ 2.00

13

0916019023
ref: 13
MODEL W/X

WASHER

€ 2.00

14

0920006033
ref: 14

PIN

€ 2.00

15

0411120158
ref: 15

PIN

€ 1.50

16

0155010453
ref: 16

BOLT

€ 3.00

17

0831610103
ref: 17

NUT

€ 2.00

18

0155010253
ref: 18

BOLT

€ 3.00
