CARRIER

GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

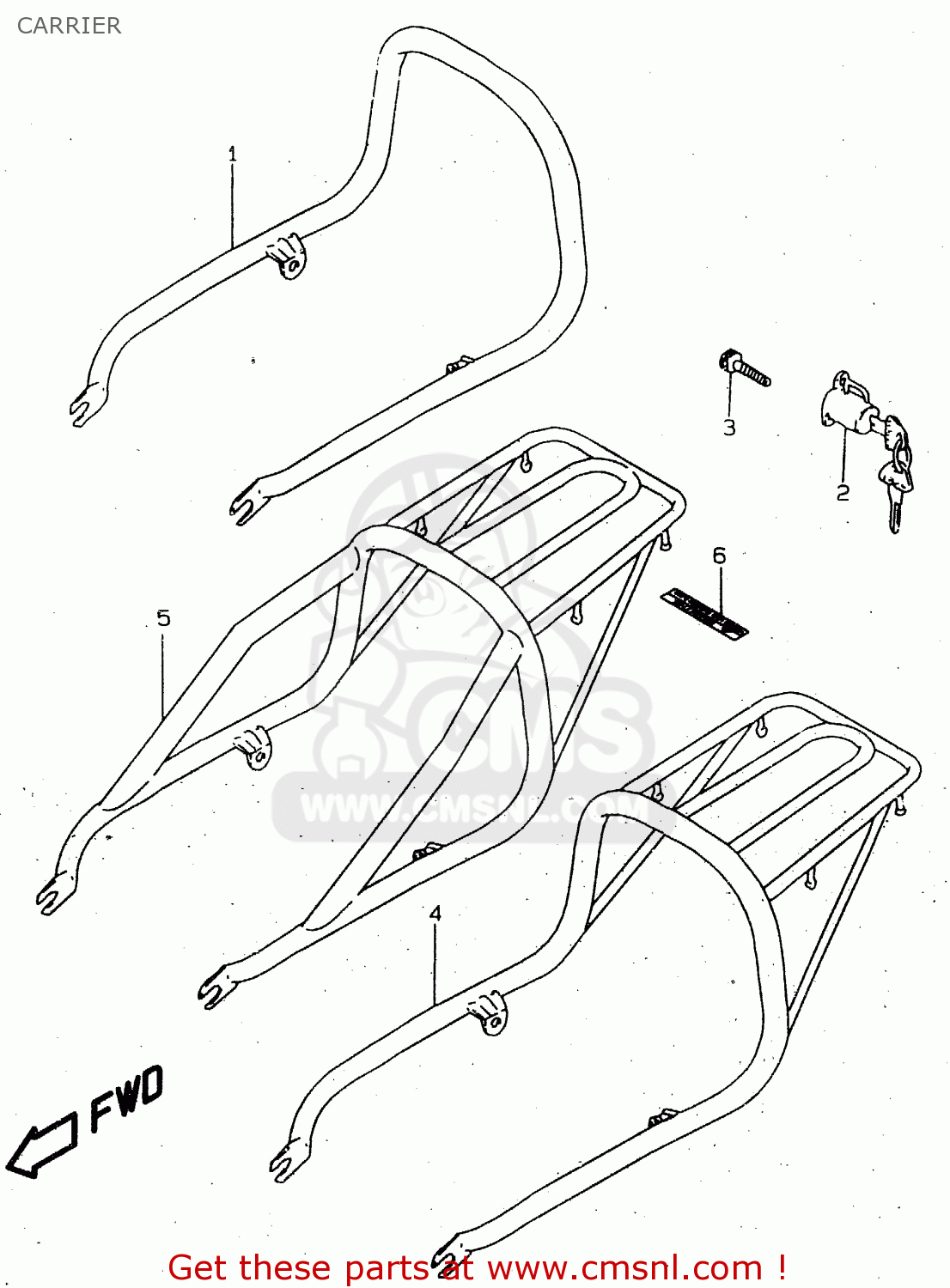

Carrier diagram GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

CARRIER GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

CARRIER GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

prices are in EUR

ref

part #

description

quantity

1

4621005300
ref: 1

HANDLE,PILLION RIDER

€ 686.00

2

9570037810
ref: 2

LOCK SET,HELMET

€ 36.00

3

0913906075
ref: 3

SCREW(6X12)

€ 3.00

4

4631005300
ref: 4
OPT

CARRIER

€ 161.50

5

4630005860
ref: 5
OPT E22

CARRIER SET,SUPPORT

€ 161.50

6

6839144AD0
ref: 6
OPT E22

LABEL,RR CARRIER

€ 4.50
