FRONT FENDER - HEADLAMP HOUSING

GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

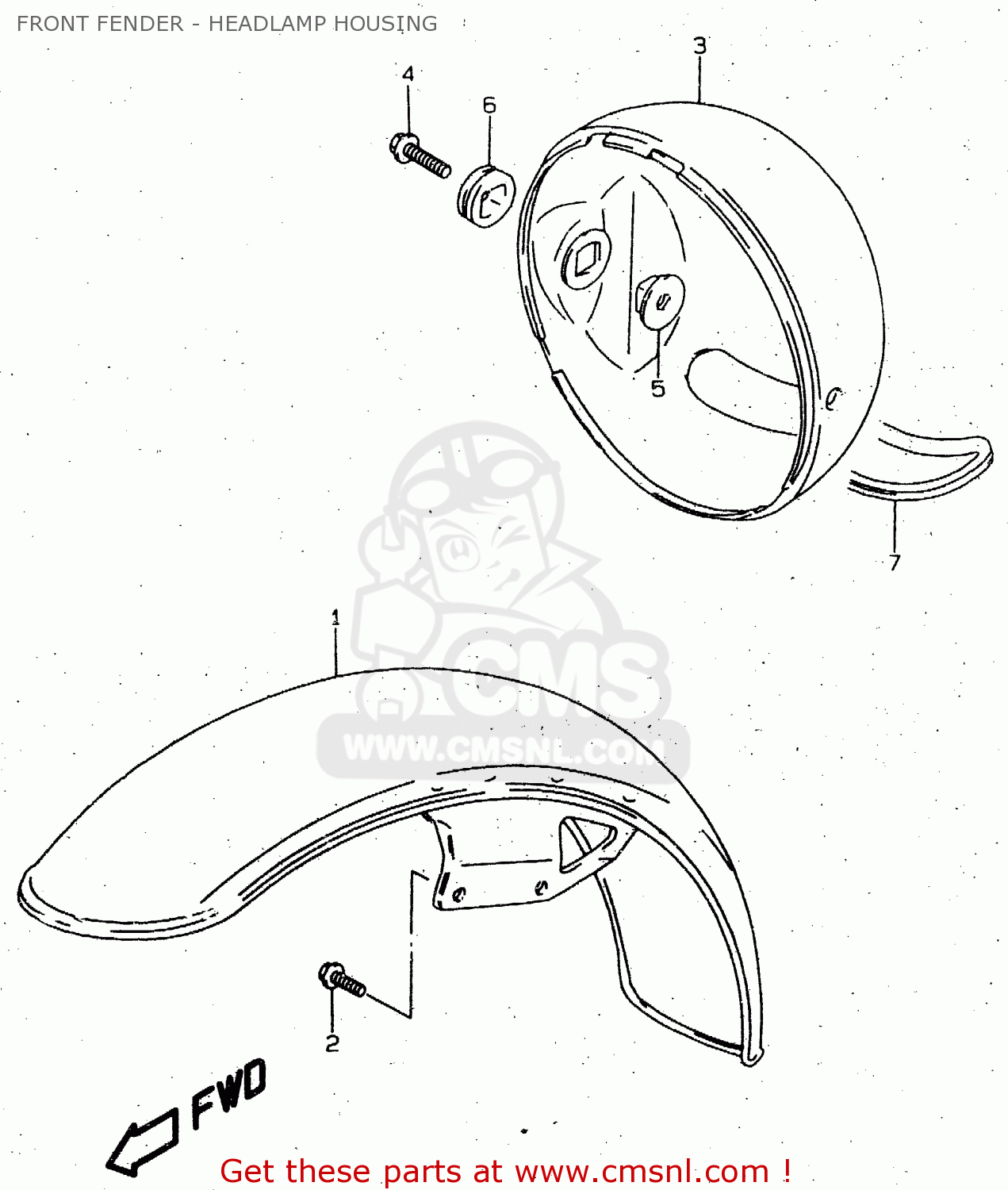

Front fender - headlamp housing diagram GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

FRONT FENDER - HEADLAMP HOUSING GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

FRONT FENDER - HEADLAMP HOUSING GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

prices are in EUR

ref

part #

description

quantity

1

5311005301
ref: 1

FENDER,FR

€ 87.00

2

0157008163
ref: 2

BOLT, UPPER

€ 2.00

3

5181044201
ref: 3

HOUSING,HEADLAMP

€ 76.50

4

0126408207
ref: 4

BOLT

€ 3.00

5

5182136200
ref: 5

SPACER,HEADLAMP HOUSING

€ 7.50

6

5182727302
ref: 6

CUSHION,HEADLAMP HOUSING

€ 3.00

7

9463133C01
ref: 7

MOLDING WINDSCREEN

€ 10.00
