REAR COMBINATION LAMP (E18,E22)

GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

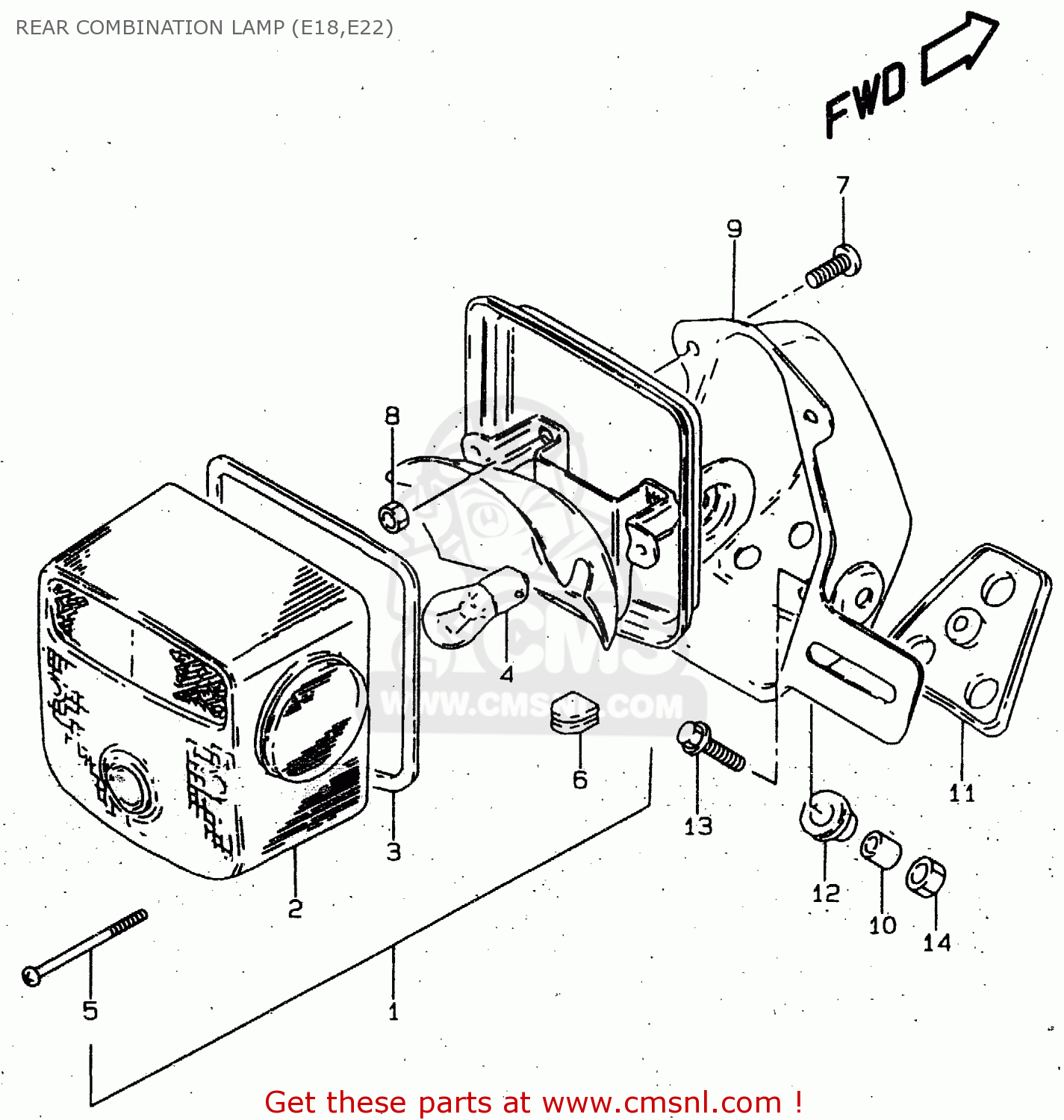

Rear combination lamp (e18,e22) diagram GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

REAR COMBINATION LAMP (E18,E22) GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

REAR COMBINATION LAMP (E18,E22) GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

prices are in EUR

ref

part #

description

quantity

1

3571038300
ref: 1
REFLEX REFLECTOR:RR0

LAMP ASSY,RR COMBINATION

€ 149.00

2

3571238350
ref: 2

LENS

€ 66.00

3

3571330510
ref: 3

GASKET (NAS)

€ 6.00

4

0947112083
ref: 4

BULB(12V21/5W)

€ 6.00

5

0912504002
ref: 5

SCREW (4X55)

€ 1.50

6

3572830640
ref: 6

GROMMET,REAR COMBINATION LAMP

€ 3.00

7

0211206167
ref: 7

SCREW

€ 2.50

8

0831000067
ref: 8

NUT

€ 2.50

9

3573038380
ref: 9

BRACKET UNIT,TAIL LAMP

€ 51.00

10

3576626470
ref: 10

SPACER

€ 2.00

11

3576526470
ref: 11

CUSHION

€ 10.00

12

3576426470
ref: 12

CUSHION

€ 2.50

13

0911606167
ref: 13

BOLT(6X20)

€ 2.00

14

0831000063
ref: 14

NUT 6MM

€ 2.00
