2ND AIR (E18)

XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

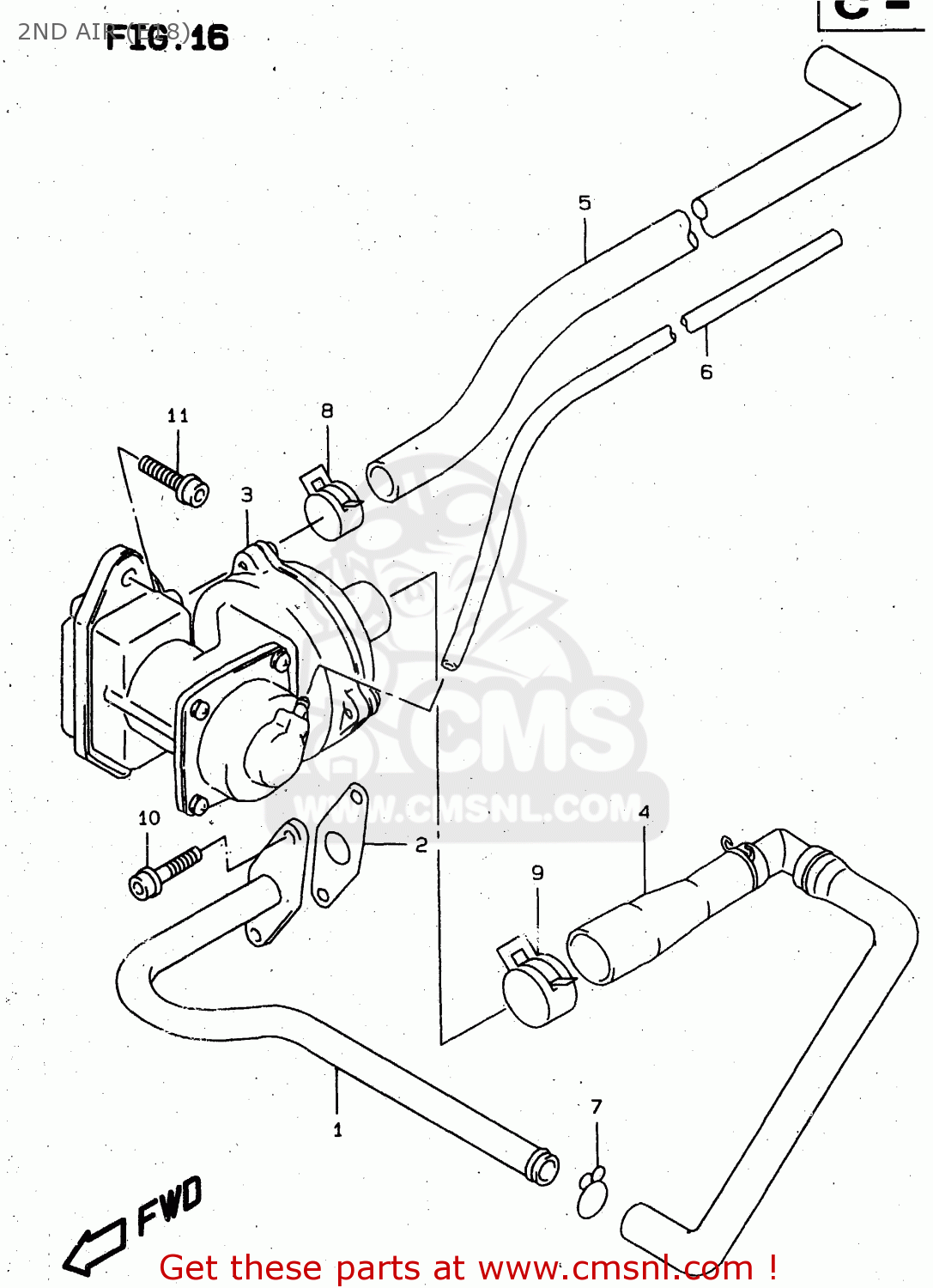

2nd air (e18) diagram XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

2ND AIR (E18) XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

2ND AIR (E18) XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

prices are in EUR

ref

part #

description

quantity

1

1841032E00
ref: 1

PIPE, 2ND AIR

€ 36.50

2

1844145C00
ref: 2

GASKET,SECOND AIR PIPE (N (NAS)

€ 6.00

3

1845014D00
ref: 3

VALVE ASSY,2ND AIR REED

€ 377.50

4

1846004F00
ref: 4

HOSE ASSY, 2ND AIR

€ 48.50

5

1871102F00
ref: 5

HOSE,2ND AIR INLET

€ 12.50

6

0935940701600
ref: 6
L:600->500

HOSE(4X7X600)

€ 9.00

7

0940113413
ref: 7
MODEL V

CLIP

€ 2.50

7

0940113417
ref: 7
MODEL W/X

CLIP

€ 2.50

8

0940115404
ref: 8

CLIP

€ 2.50

9

0940122404
ref: 9

CLIP,SECOND AIR HOSE

€ 3.00

10

0712006163
ref: 10

BOLT MAGNETO S

€ 2.50

11

0712006203
ref: 11

BOLT

€ 3.50
