STARTER CLUTCH

XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

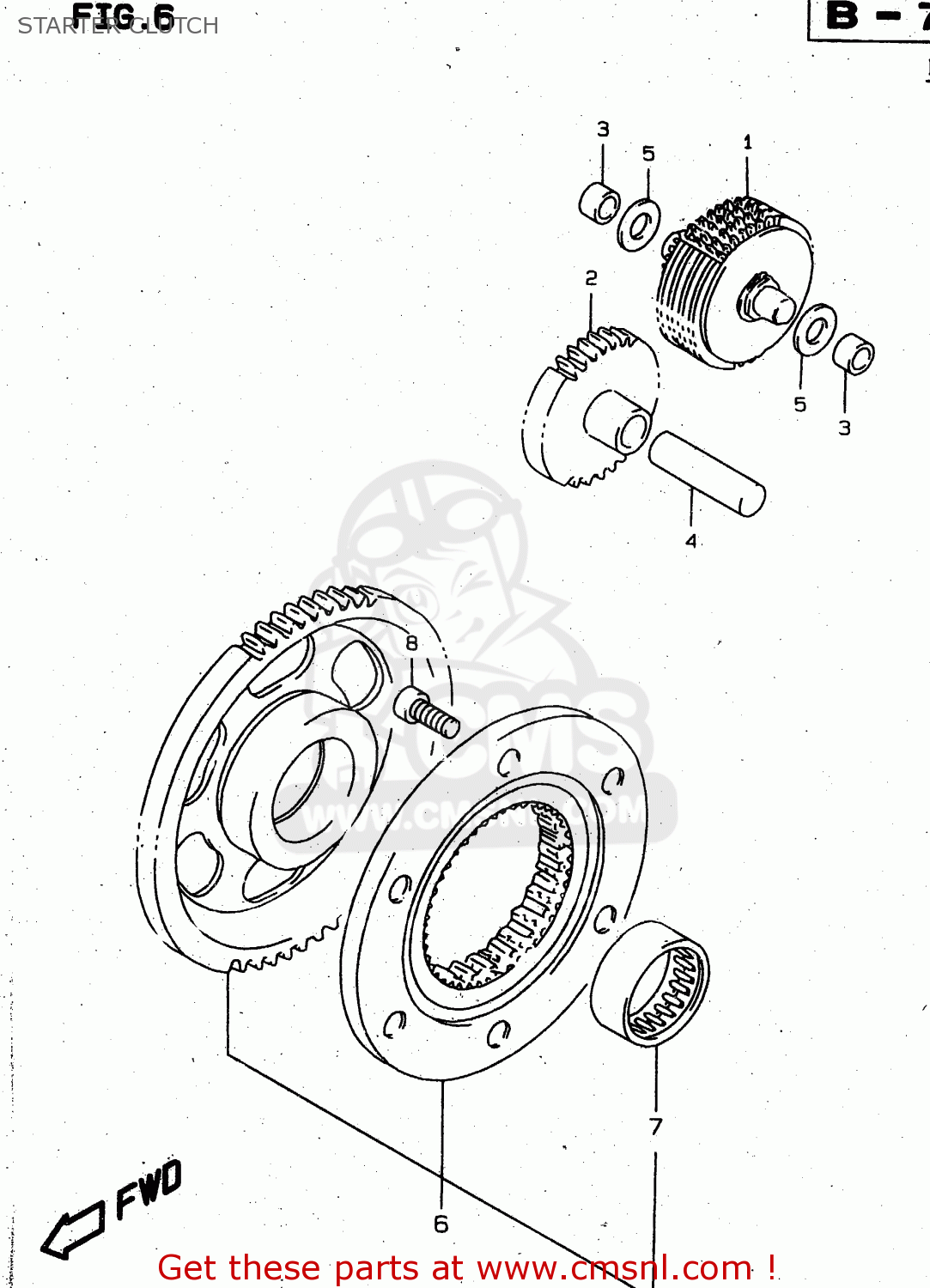

Starter clutch diagram XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

STARTER CLUTCH XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

STARTER CLUTCH XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

prices are in EUR

ref

part #

description

quantity

1

1260012D00
ref: 1

LIMITER ASSEMBLY,STARTER IDLER GEAR

€ 122.50

2

1261212D01
ref: 2

GEAR,STARTER IDLE NO.2(NT:27)

€ 40.50

3

1261831D01
ref: 3

BUSH,LIMITER GEAR SHAFT

€ 17.50

4

0920212002
ref: 4

PIN

€ 7.50

5

0821110221
ref: 5

WASHER

€ 2.50

6

1260009860
ref: 6
<-12600-12810

CLUTCH SET,STARTER

€ 210.00

7

0926331009
ref: 7

BEARING(31X39X17.8)

€ 25.50

8

0713008203
ref: 8

BOLT

€ 3.00
