XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

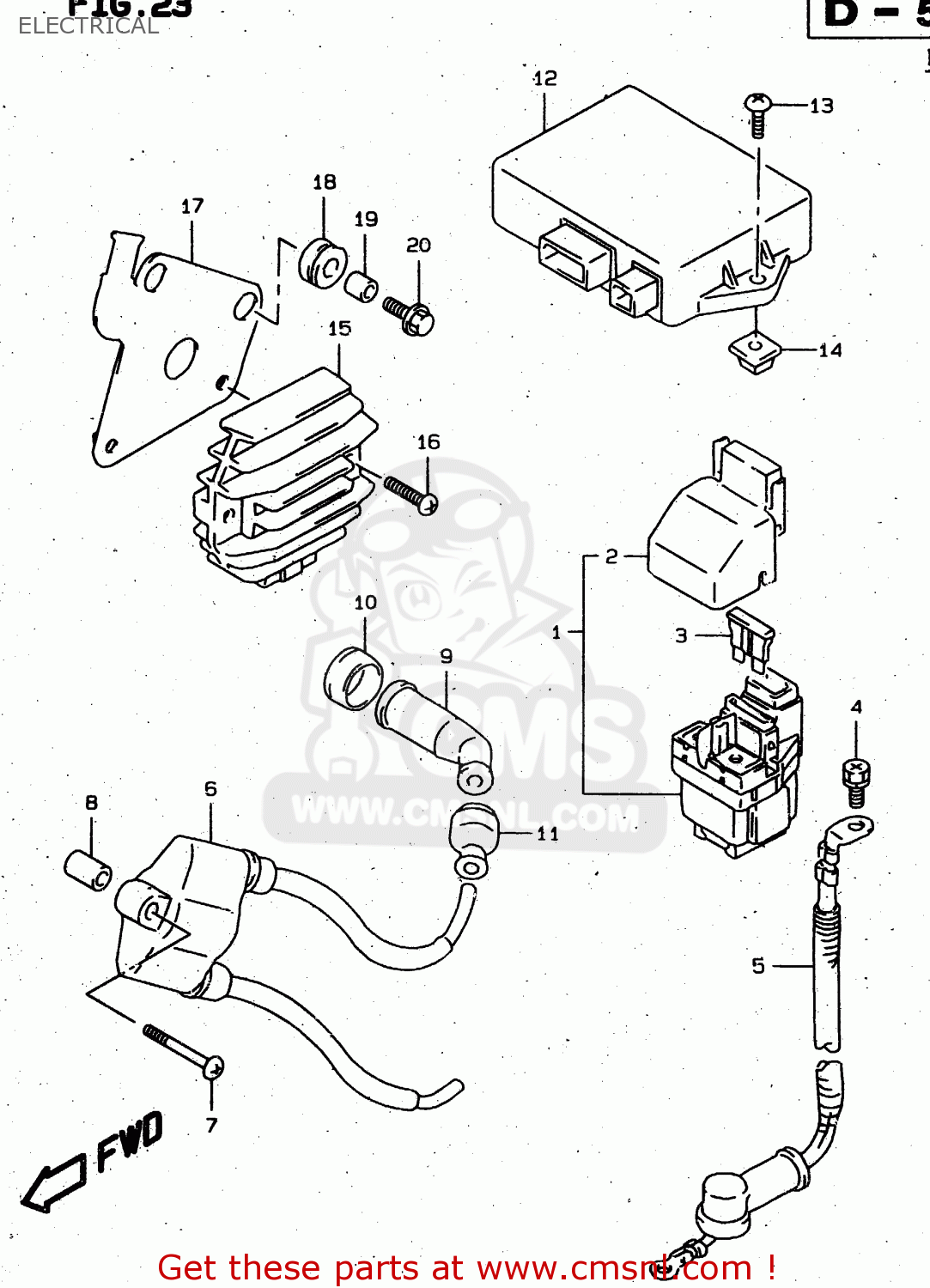

Electrical diagram XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

prices are in EUR

ref

part #

description

quantity

3180026E00
ref: 1

RELAY ASSY,STARTING MOTOR

€ 77.50

3186126E00
ref: 2

COVER,STARTER RELAY

€ 3.50

0948130101
ref: 3

FUSE(30A)

€ 6.00

0912806013
ref: 4

SCREW(6X8)

€ 1.50

3381021E00
ref: 5

WIRE,STARTER MOTOR LEAD

€ 25.50

3341004F00
ref: 6

COIL ASSY,IGNITION

€ 135.50

0214206403
ref: 7

SCREW

€ 2.00

0918006079
ref: 8
6.5X10.5X15

SPACER(6.5X10.5X15)

€ 2.50

3351043010
ref: 9

CAP,SPARK PLUG

€ 11.50

3354147D00
ref: 10

SEAL,SPARK PLUG

€ 7.00

3354238B00
ref: 11

SEAL,HIGH TENSION CORD

€ 4.50

3290004F00
ref: 12

CDI UNIT

€ 460.00

0354206203
ref: 13

SCREW

€ 2.00

0914806006
ref: 14

NUT

€ 1.50

3280032E00
ref: 15

RECTIFIER ASSY

€ 182.50

0214206203
ref: 16

SCREW

€ 2.00

3283104F00
ref: 17

BRACKET,ELEC PARTS

€ 7.50

0932009036
ref: 18

CUSHION

€ 4.00

0918006258
ref: 19

SPACER(6.5X9X6.7)

€ 3.00

0156006163
ref: 20

BOLT

€ 2.00
