REAR COMBINATION LAMP

XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

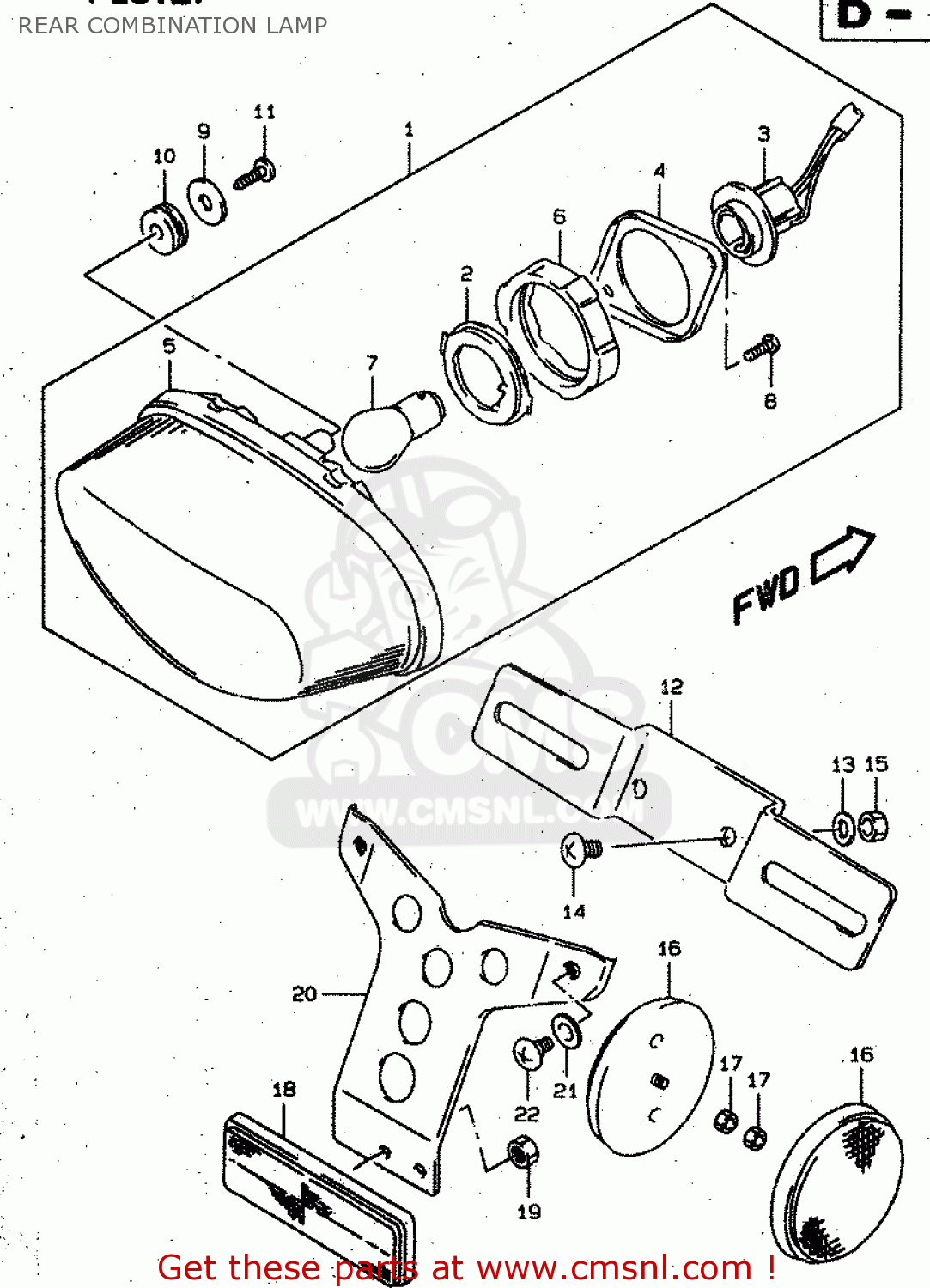

Rear combination lamp diagram XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

REAR COMBINATION LAMP XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9
REAR COMBINATION LAMP XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9
REAR COMBINATION LAMP XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9
prices are in EUR
ref
part #
description
quantity
1
3571042E10
ref: 1
MODEL V/W
LAMP ASSY,REAR
€ 270.50
1
3571042E11
ref: 1
MODEL X
LAMP ASSY,RR COMBINATION
3571042E11
€ 270.50
2
3571648B21
ref: 2
PLATE NO.1
3571648B21
€ 25.00
3
3571842E10
ref: 3
SOCKET & CORD
3571842E10
€ 56.50
4
3573648B21
ref: 4
PLATE NO.2
€ 16.50
5
3574042E10
ref: 5
MODEL V/W
LAMP UNIT
€ 92.00
5
3574042E11
ref: 5
MODEL X
LAMP UNIT
3574042E11
€ 92.00
6
3576542E00
ref: 6
CUSHION
€ 10.50
7
0947112083
ref: 7
BULB(12V21/5W)
0947112083
€ 6.00
8
0321104123
ref: 8
SCREW
0321104123
€ 1.50
9
0916005501
ref: 9
WASHER(5.5X20X1.2)
0916005501
€ 2.00
10
0932010015
ref: 10
CUSHION
0932010015
€ 2.50
11
0354105123
ref: 11
SCREW
0354105123
€ 2.00
12
3592704F00
ref: 12
BRACKET,LICENSE PLATE
€ 8.00
12
3592704F10
ref: 12
E18
BRACKET,LICENSE PLATE
€ 10.50
13
0916006088
ref: 13
WASHER(6.5X20X1.6)
0916006088
€ 2.00
14
0214206123
ref: 14
SCREW 6X12
0214206123
€ 2.00
15
0831000063
ref: 15
NUT 6MM
0831000063
€ 2.00
16
3595014A10
ref: 16
E18
REFLECTOR,REFLEX
3595014A10
€ 11.00
17
0831000053
ref: 17
E18
NUT
€ 2.50
18
3597024D60
ref: 18
REFLECTOR ASSY,RR
3597024D60
€ 19.50
19
0831000053
ref: 19
NUT
€ 2.50
20
3597433E00
ref: 20
BRACKET,RR REFLECTOR
3597433E00
€ 12.00
21
0916008114
ref: 21
WASHER(8.5X18X1.6)
0916008114
€ 2.50
22
0912266004
ref: 22
<-09139-06081
SCREW (6X14)
€ 2.00
