STARTING MOTOR

XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

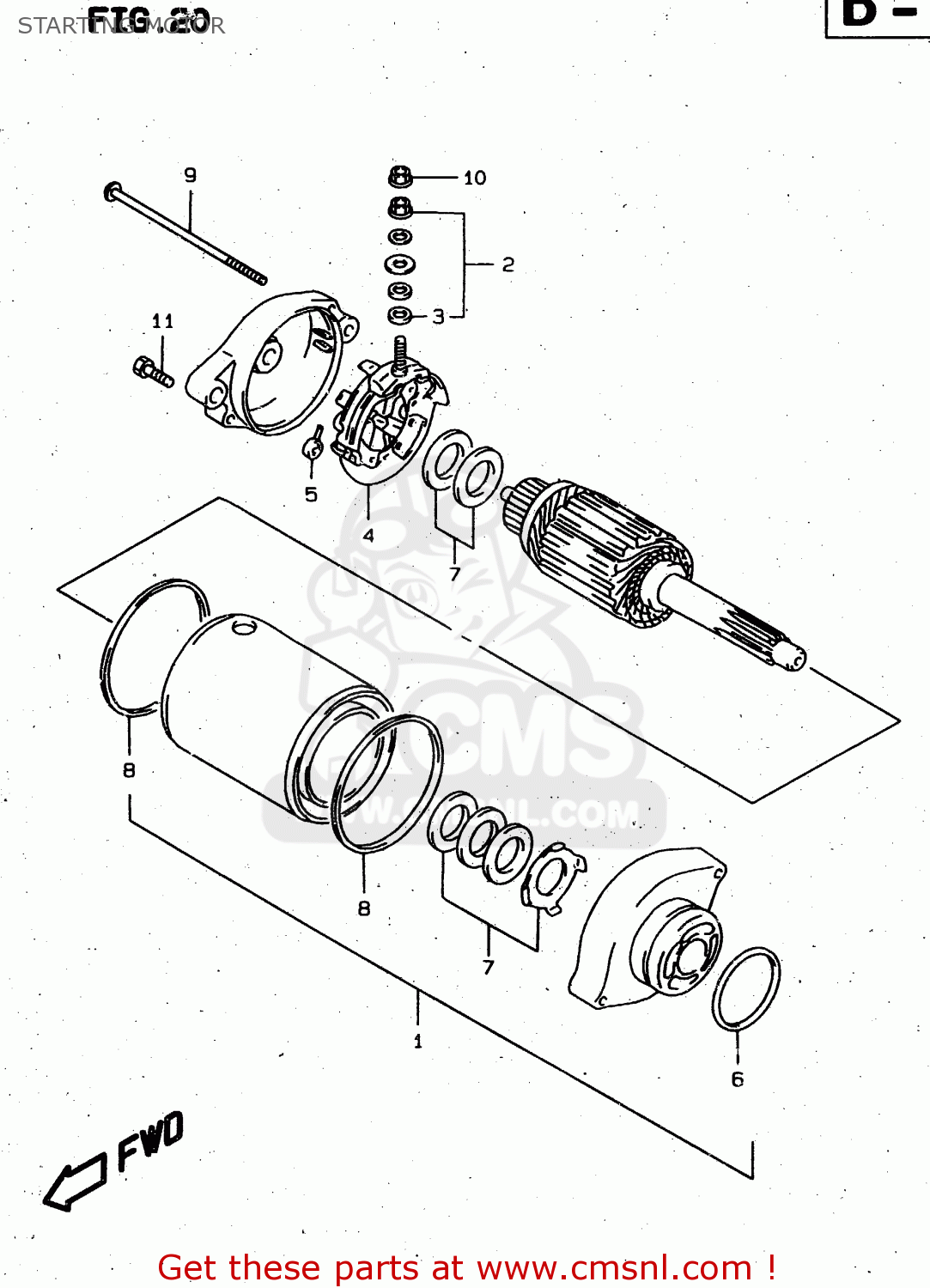

Starting motor diagram XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

STARTING MOTOR XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

STARTING MOTOR XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

prices are in EUR

ref

part #

description

quantity

1

3110032E01
ref: 1
<-31100-32E00

MOTOR ASSY,STARTING

€ 606.00

2

3113038B00
ref: 2

TERMINAL SET,BRUSH

€ 45.00

3

3114349040
ref: 3

O RING

€ 3.00

4

3113238B00
ref: 4

HOLDER SET,BRUSH

€ 45.00

5

3113538B00
ref: 5

SPRING,BRUSH

€ 3.50

6

3115648B00
ref: 6

O RING

€ 8.50

7

3117032E00
ref: 7

WASHER SET

€ 8.00

8

3126432E00
ref: 8
<-31264-31300

SQUARE RING

€ 7.50

9

3128026D00
ref: 9

BOLT

€ 12.50

10

0836135068
ref: 10

NUT

€ 2.00

11

0154706303
ref: 11

BOLT,G/S SWITC

€ 3.00
