HEADLAMP (E4, E17, E18, E22, E25, E34, P9)

XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

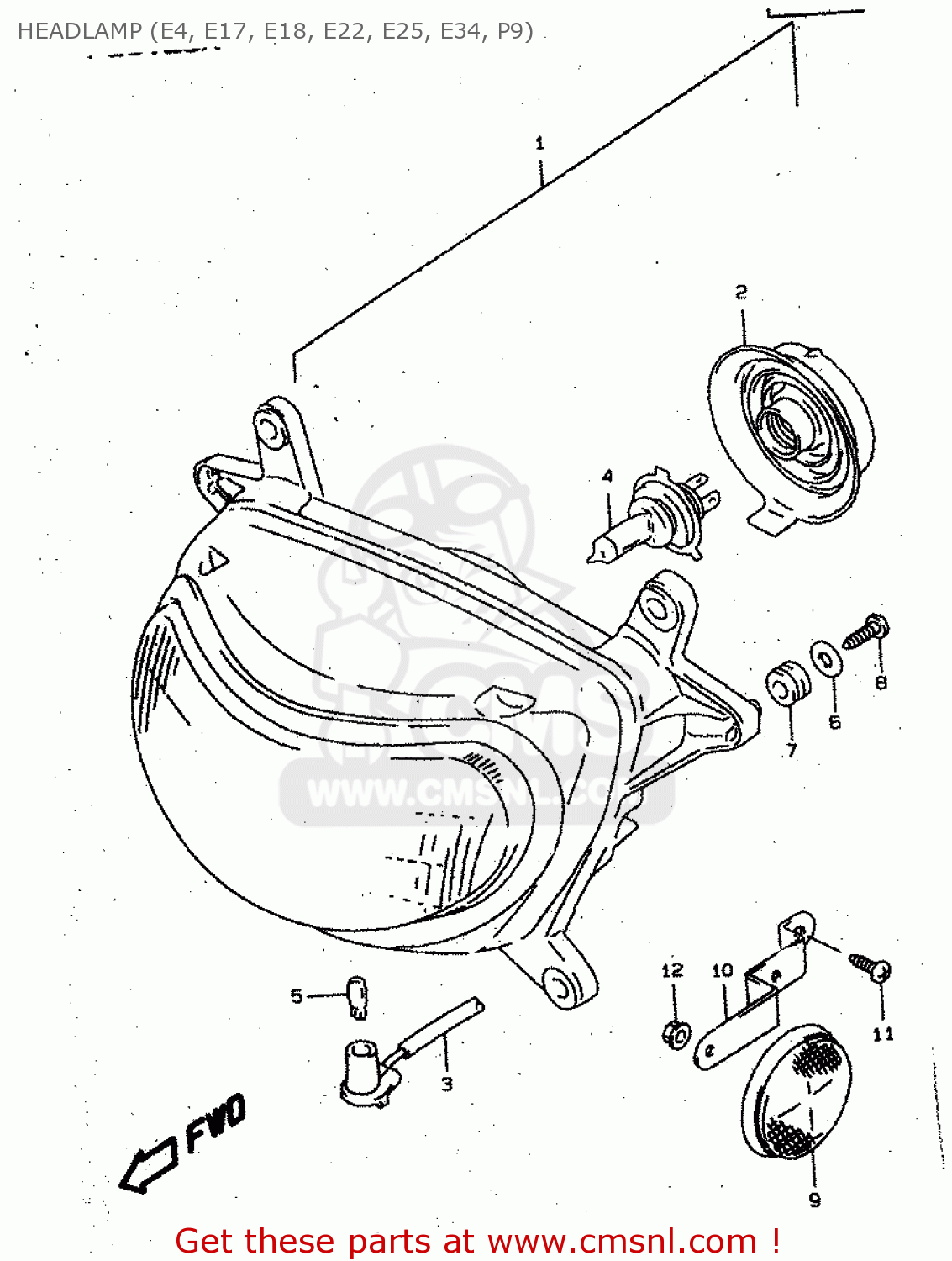

Headlamp (e4, e17, e18, e22, e25, e34, p9) diagram XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

HEADLAMP (E4, E17, E18, E22, E25, E34, P9) XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

HEADLAMP (E4, E17, E18, E22, E25, E34, P9) XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

prices are in EUR

ref

part #

description

quantity

1

3510004F50999
ref: 1

HEADLAMP ASSY

€ 338.00

2

3517342E00
ref: 2

COVER

€ 20.50

3

3611804F20
ref: 3

CORD ASSY

€ 16.50

4

0947112185
ref: 4

BULB(12V60/55W,H4)

€ 8.00

5

0947112081
ref: 5

BULB(12V5W)

€ 1.50

6

0916005045
ref: 6
<-09160-05003

WASHER(5.5X18X1)

€ 2.00

7

0932008051
ref: 7

CUSHION

€ 7.50

8

0351205163
ref: 8

SCREW

€ 2.50

9

3595014A10
ref: 9
E18

REFLECTOR,REFLEX

€ 11.00

10

3595604F00
ref: 10
E18

BRACKET,FR SIDE RR

€ 0.00

11

0351105163
ref: 11
E18

SCREW,SIDE HOL

€ 2.50

12

0831610053
ref: 12
E18

NUT

€ 2.50
