TURNSIGNAL LAMP

XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

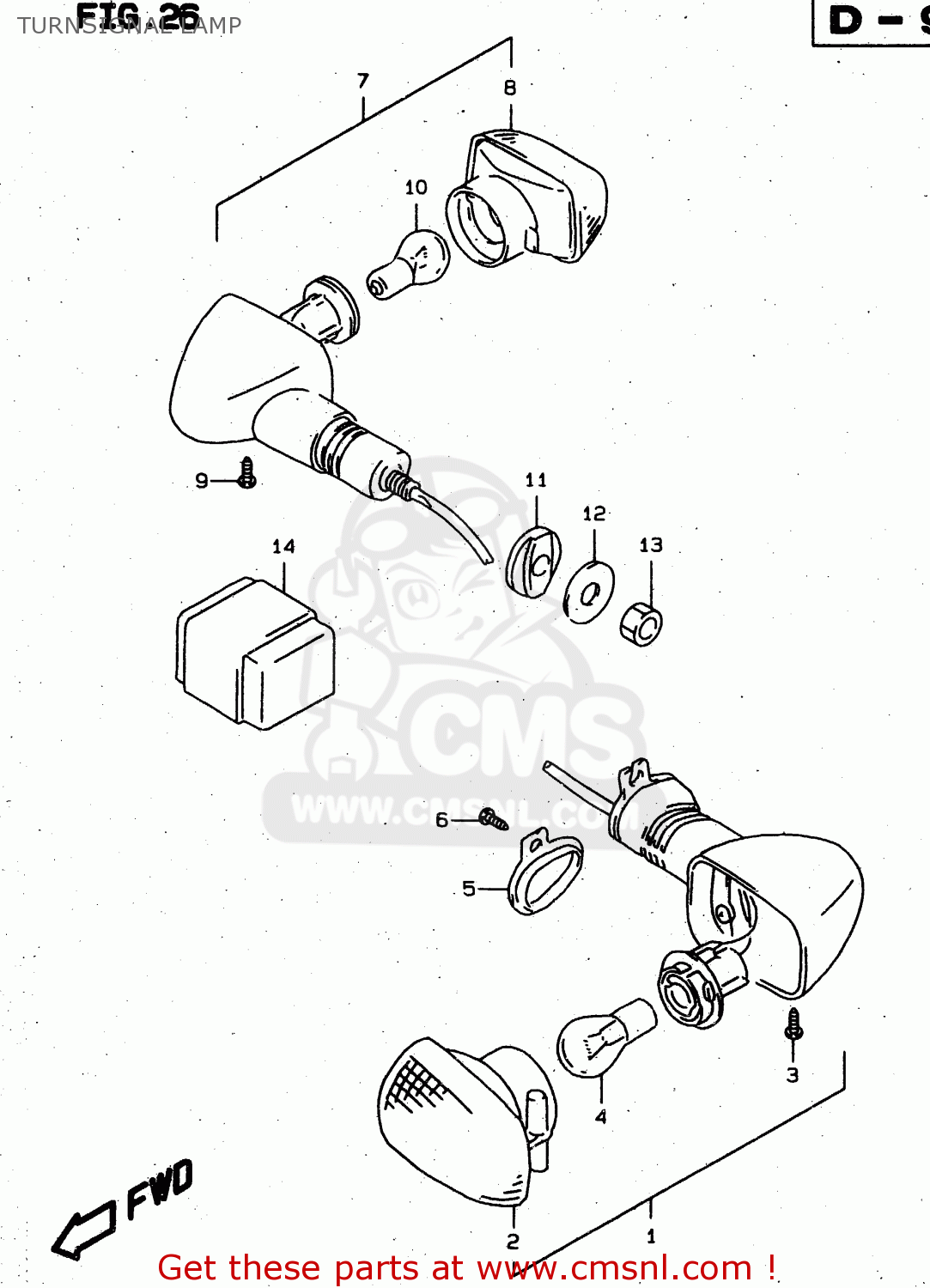

Turnsignal lamp diagram XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

prices are in EUR

ref

part #

description

quantity

3560133E00
ref: 1

LAMP ASSEMBLY,FRONT TURN SIGNAL

€ 84.00

3560233E00
ref: 1

LAMP ASSEMBLY,FRONT TURN SIGNAL

€ 84.00

3561033E00
ref: 2

LAMP UNIT

€ 31.00

0324204123
ref: 3

SCREW

€ 2.00

0947112045
ref: 4

BULB(12V21W)

€ 5.00

3562933E00
ref: 5

PLATE,FR TURNSIGNAL LAMP

€ 25.50

0351105103
ref: 6

SCREW

€ 2.00

3560333E30
ref: 7

LAMP ASSY,RR TURNSIGNAL,R

€ 70.50

3560433E30
ref: 7

LAMP ASSY,RR TURNSIGNAL,L

€ 70.50

3561033E00
ref: 8

LAMP UNIT

€ 31.00

0324204123
ref: 9

SCREW

€ 2.00

0947112045
ref: 10

BULB(12V21W)

€ 5.00

3569517C00
ref: 11

SPACER,RR TURNSIGNAL

€ 3.00

0916010501
ref: 12

WASHER(10.5X30X2.3)

€ 2.50

0831000103
ref: 13

NUT

€ 2.00

3861045D01
ref: 14
MODEL V

RELAY ASSY,TURNSIGNAL LAMP

€ 68.50

3861026E00
ref: 14
MODEL W/X

RELAY ASSY

€ 47.00
