Buy Suzuki XF Parts Online


FUEL TANK

XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

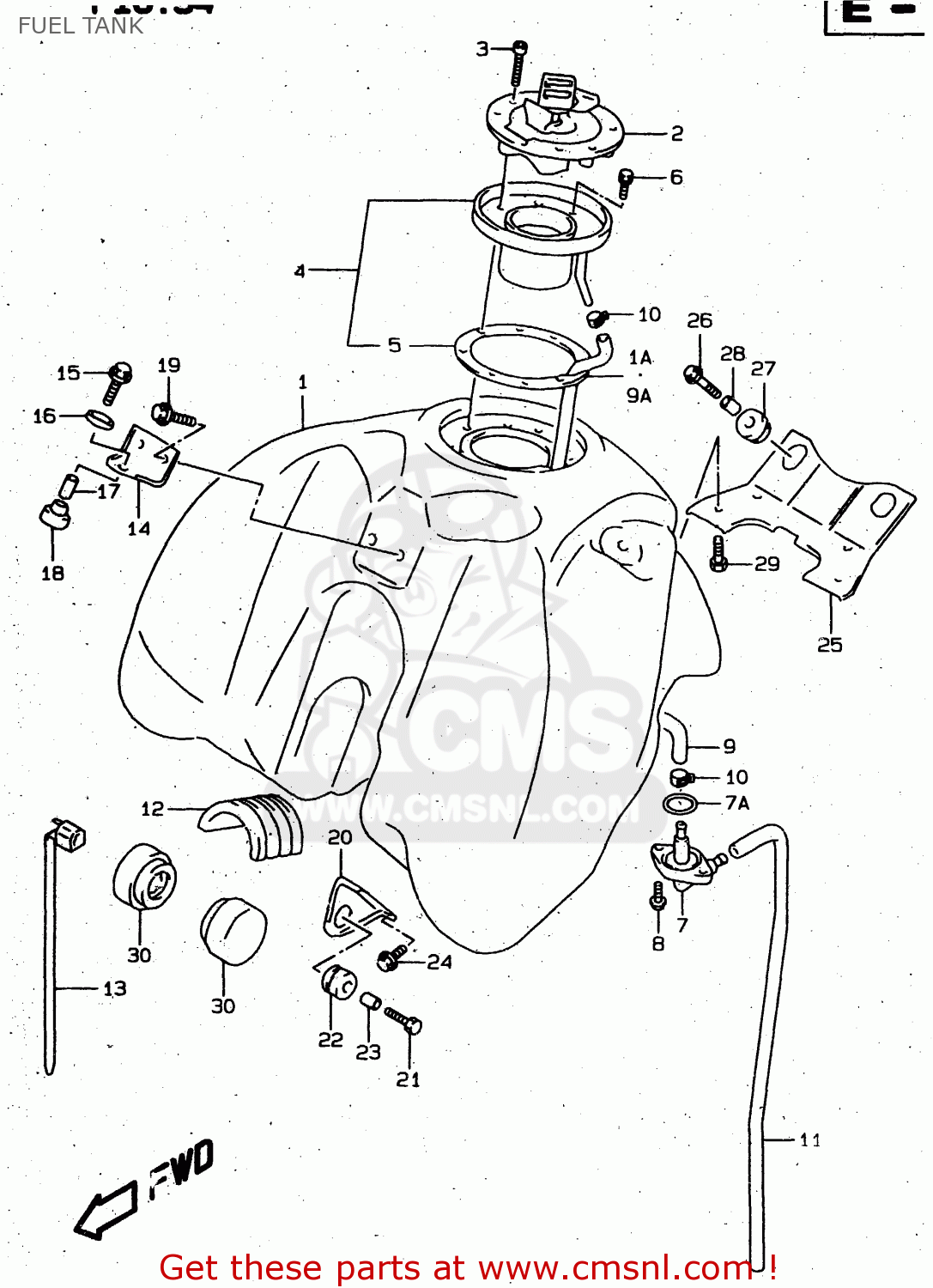

Fuel tank diagram XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

FUEL TANK XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9
FUEL TANK XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9
FUEL TANK XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9
prices are in EUR
ref
part #
description
quantity
1
4410004820
ref: 1
TANK SET,FUEL
€ 476.00
1A
4419404F00
ref: 1A
PACKING,FUEL TANK,INLET (NAS)
4419404F00
€ 9.00
2
4420033870
ref: 2
CAP SET,FUEL TANK
4420033870
€ 253.50
3
4424404F00
ref: 3
BOLT, CAP
€ 2.50
4
4419004820
ref: 4
INLET SET,FUEL
4419004820
€ 56.50
5
4419404F00
ref: 5
PACKING,FUEL TANK,INLET (NAS)
4419404F00
€ 9.00
6
0911705003
ref: 6
BOLT 5X10
€ 2.00
7
4440004F00
ref: 7
JOINT ASSY,FUEL TANK WATER DRN
4440004F00
€ 14.50
7A
4434804F00
ref: 7A
O RING,JOINT
4434804F00
€ 6.50
8
0211276163
ref: 8
SCREW
0211276163
€ 2.00
9
4442004820
ref: 9
HOSE SET, INNER
€ 7.50
9A
4419404F00
ref: 9A
PACKING,FUEL TANK,INLET (NAS)
4419404F00
€ 9.00
10
0940110409
ref: 10
CLIP
0940110409
€ 2.50
11
4442304F00
ref: 11
HOSE,WATER DRAIN OUTER
€ 15.00
12
4454113E00
ref: 12
MODEL V
CUSHION,FUEL TANK UPR
4454113E00
€ 11.00
12
4454104F00
ref: 12
MODEL W/X
CUSHION,FUEL TANK LWR
€ 8.00
13
0940725402
ref: 13
CLAMP(L:250)
0940725402
€ 4.50
14
4412104F00
ref: 14
BRACKET,FUEL TANK FR UPR
€ 8.00
15
0911606172
ref: 15
BOLT(6X30)
0911606172
€ 2.50
16
4451242E00
ref: 16
CUSHION,FUEL TANK RR
4451242E00
€ 3.50
17
0918006271
ref: 17
SPACER(6.5X9X18)
0918006271
€ 2.00
18
0932010020
ref: 18
CUSHION
0932010020
€ 4.00
19
0155006103
ref: 19
BOLT
0155006103
€ 2.50
20
4413004F00
ref: 20
BRACKET,FUEL TANK SIDE
€ 8.50
21
0911606147
ref: 21
BOLT(6X25)
0911606147
€ 4.00
22
4451204F00
ref: 22
CUSHION,FUEL TANK SIDE
4451204F00
€ 3.00
23
0918006268
ref: 23
SPACER(6.5X9X13.5)
0918006268
€ 2.00
24
0155006103
ref: 24
BOLT
0155006103
€ 2.50
25
4414004F00
ref: 25
BRACKET,FUEL TANK RR
€ 20.00
26
0911606147
ref: 26
BOLT(6X25)
0911606147
€ 4.00
27
4451204F00
ref: 27
CUSHION,FUEL TANK SIDE
4451204F00
€ 3.00
28
0918006268
ref: 28
SPACER(6.5X9X13.5)
0918006268
€ 2.00
29
0155006103
ref: 29
BOLT
0155006103
€ 2.50
30
4451504F00
ref: 30
CUSHION,FUEL TANK SIDE INNER
4451504F00
€ 10.00
