FRONT MASTER CYLINDER

XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

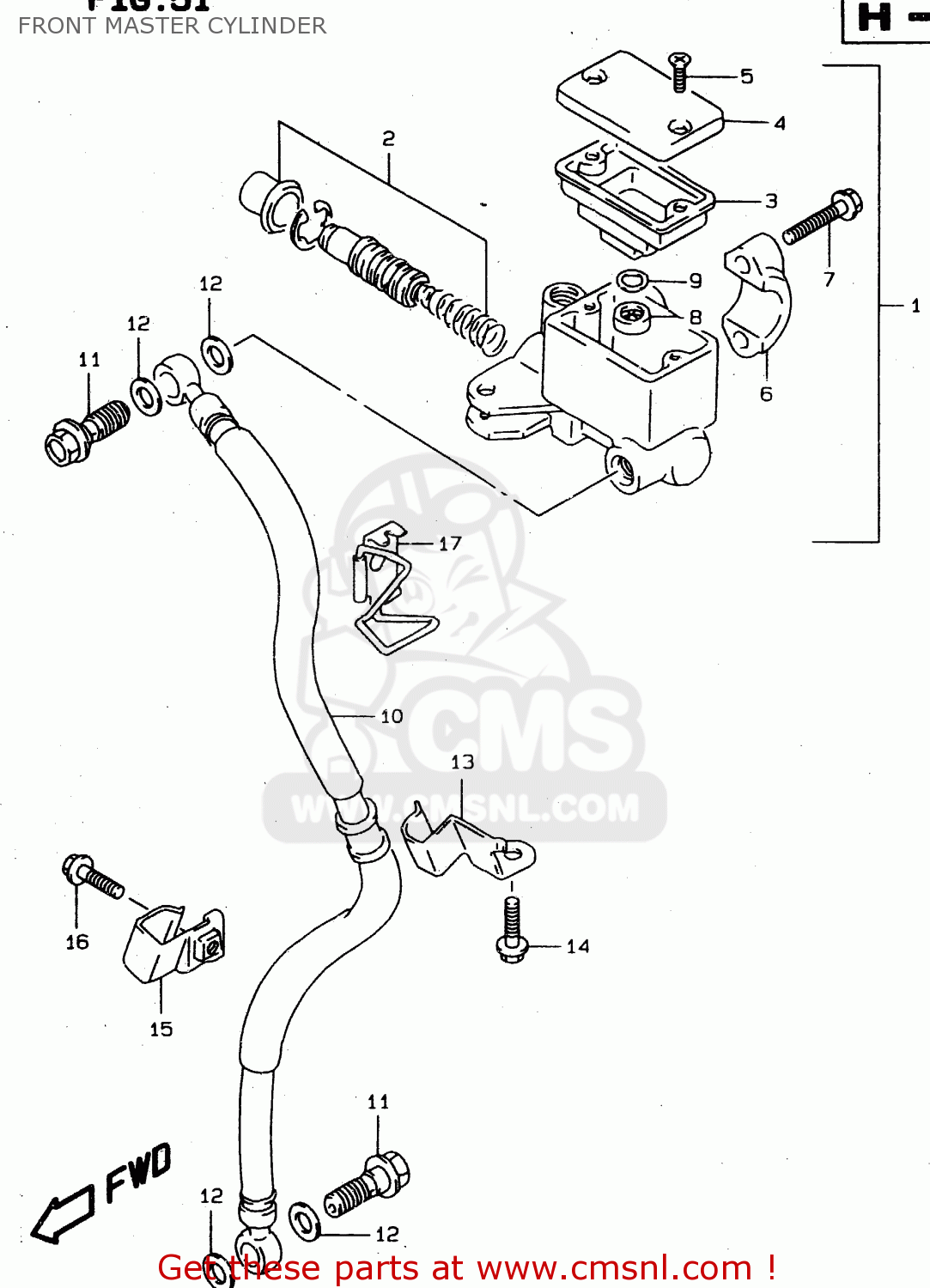

Front master cylinder diagram XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

prices are in EUR

ref

part #

description

quantity

5960031D00
ref: 1

CYLINDER ASSEMBLY,FRONT MASTER

€ 175.50

5960004810
ref: 2

PISTON/CUP SET

€ 37.50

5966744B00
ref: 3

DIAPHRAGM

€ 8.00

6966924A01
ref: 4

CAP

€ 12.00

6968949300
ref: 5

SCREW

€ 1.50

5967136500
ref: 6

HOLDER

€ 10.00

5967519C00
ref: 7

BOLT(6X25)

€ 3.00

5974815400
ref: 8

SEPERATOR

€ 7.50

5974915400
ref: 9

PLATE

€ 2.00

5948004F00
ref: 10

HOSE,FR BRAKE

€ 104.00

0936010042
ref: 11

BOLT UNION

€ 5.00

0916110009
ref: 12

WASHER(10X15X1.5)

€ 2.00

5926604F00
ref: 13

CLAMP, BRAKE HOSE UPPER

€ 6.50

0155006123
ref: 14

BOLT

€ 2.50

5927004F00
ref: 15

CLAMP,FR BRAKE HOSE LWR

€ 7.50

0155006163
ref: 16

BOLT

€ 2.50

5954004F00
ref: 17

GUIDE,FR BRAKE HOSE

€ 13.00

FRONT MASTER CYLINDER

all assemblies
