FRAME

XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

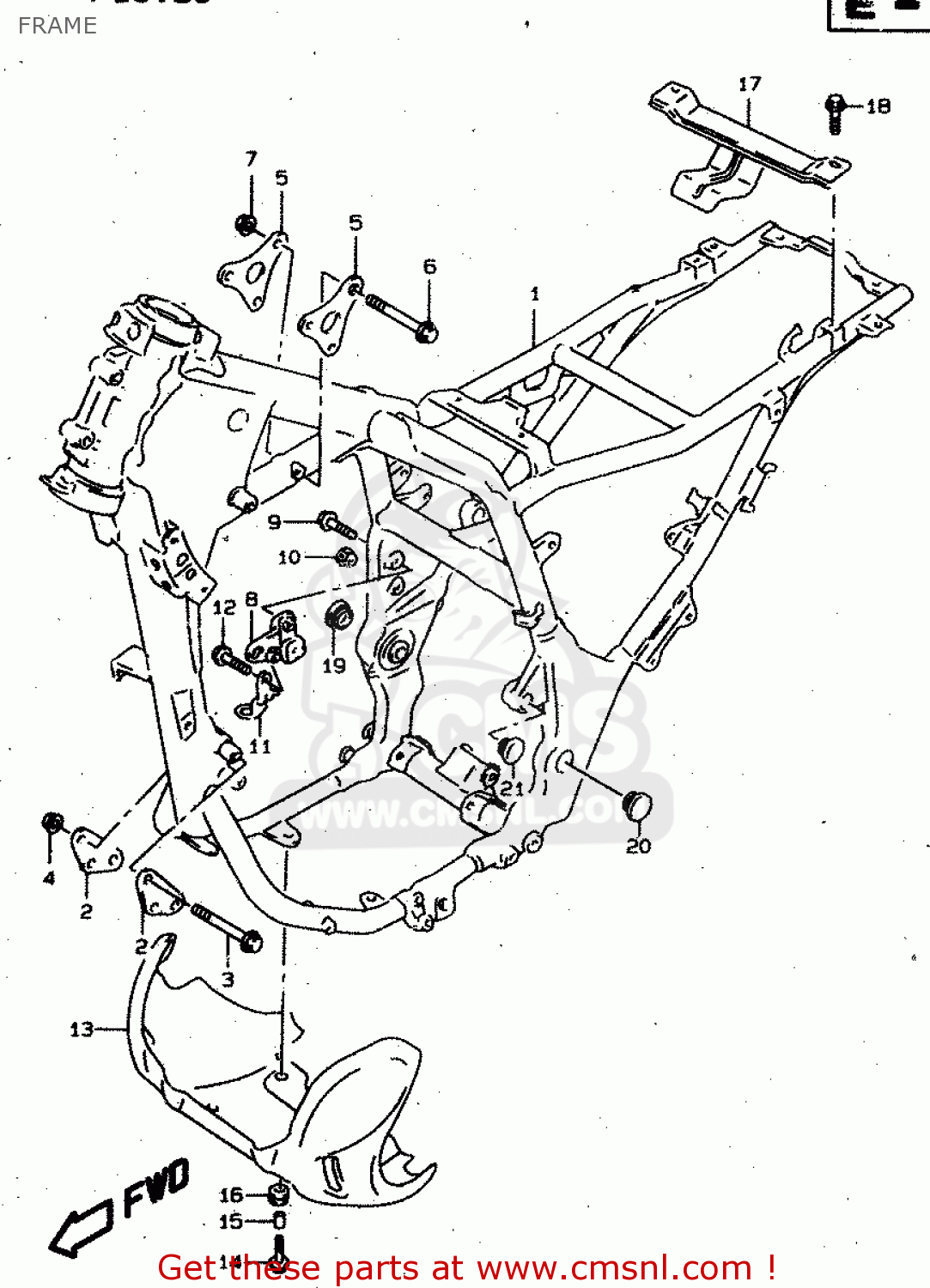

Frame diagram XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

FRAME XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9
FRAME XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9
FRAME XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9
prices are in EUR
ref
part #
description
quantity
1
4110004F0024K
ref: 1
FRAME (CHARCOAL)
€ 1,957.50
1
4110004F1024K
ref: 1
E18
FRAME(CHARCOAL)
4110004F1024K
€ 1,957.50
2
4191104F00
ref: 2
PLATE,ENG MTG FR
€ 10.00
3
0910308139
ref: 3
BOLT(8X100)
0910308139
€ 5.50
4
0831921083
ref: 4
MODEL V/W
NUT
€ 1.50
4
0831931083
ref: 4
MODEL X
NUT
0831931083
€ 2.50
5
4199104F00
ref: 5
PLATE,ENG MTG UPR
4199104F00
€ 15.00
6
0910308027
ref: 6
MODEL V
BOLT 8X55
€ 3.50
6
0910308170
ref: 6
MODEL W/X
BOLT
0910308170
€ 3.50
7
0831931083
ref: 7
NUT
0831931083
€ 2.50
8
4193004F00
ref: 8
PLATE,ENG MTG RR,R
4193004F00
€ 11.50
9
0910308254
ref: 9
BOLT(8X20)
0910308254
€ 3.00
10
0925020012
ref: 10
PLUG(OD:22)
0925020012
€ 5.50
11
4325132E00
ref: 11
BRACKET,STOP SWITCH
4325132E00
€ 8.00
12
0216206163
ref: 12
SCREW
0216206163
€ 2.50
13
4251004F00
ref: 13
PROTECTOR,ENG.
4251004F00
€ 318.50
14
0911606006
ref: 14
BOLT(6X16)
0911606006
€ 2.00
15
0918006259
ref: 15
SPACER(6.5X9X7)
0918006259
€ 2.50
16
0932008021
ref: 16
CUSHION
0932008021
€ 4.00
17
4156004F00
ref: 17
PLATE,BATT FITING
4156004F00
€ 18.00
18
0155006163
ref: 18
BOLT
0155006163
€ 2.50
19
4358504F00
ref: 19
PLUG,FRAME PIVOT,R
4358504F00
€ 9.00
20
4359504F00
ref: 20
PLUG,FRAME PIVOT,L
4359504F00
€ 8.00
21
4358632E00
ref: 21
PLUG,FRAME BOSS
4358632E00
€ 2.50
