CYLINDER

XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

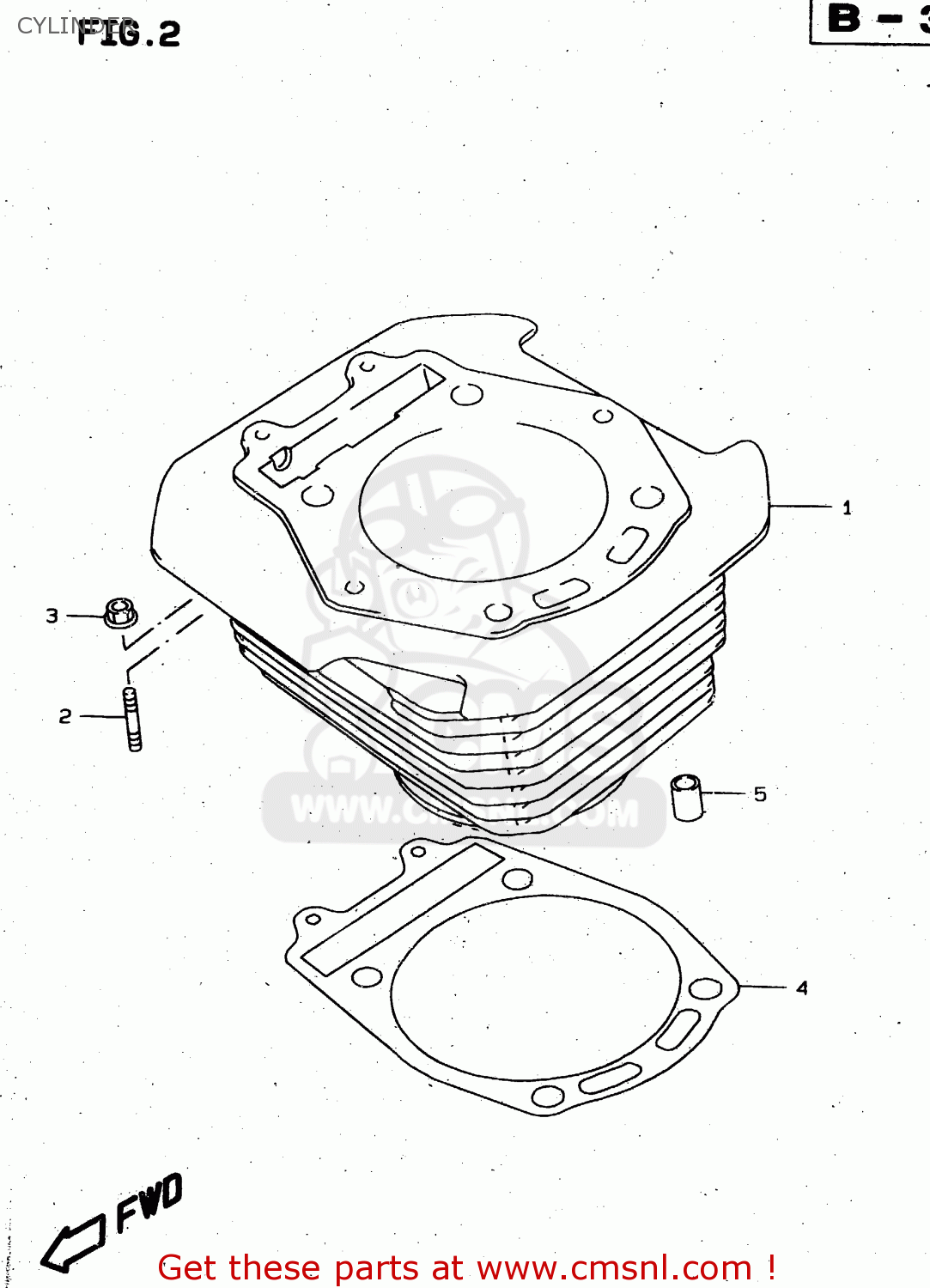

Cylinder diagram XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

CYLINDER XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

CYLINDER XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

prices are in EUR

ref

part #

description

quantity

1

1121132E020F0
ref: 1

CYLINDER

€ 759.50

2

0142106208
ref: 2

STUD 6X20

€ 2.50

3

0831610063
ref: 3

NUT

€ 2.50

4

1124104F00
ref: 4

GASKET,CYLINDER (NAS)

€ 17.00

5

0421113189
ref: 5

PIN

€ 2.50
