OIL PUMP

XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

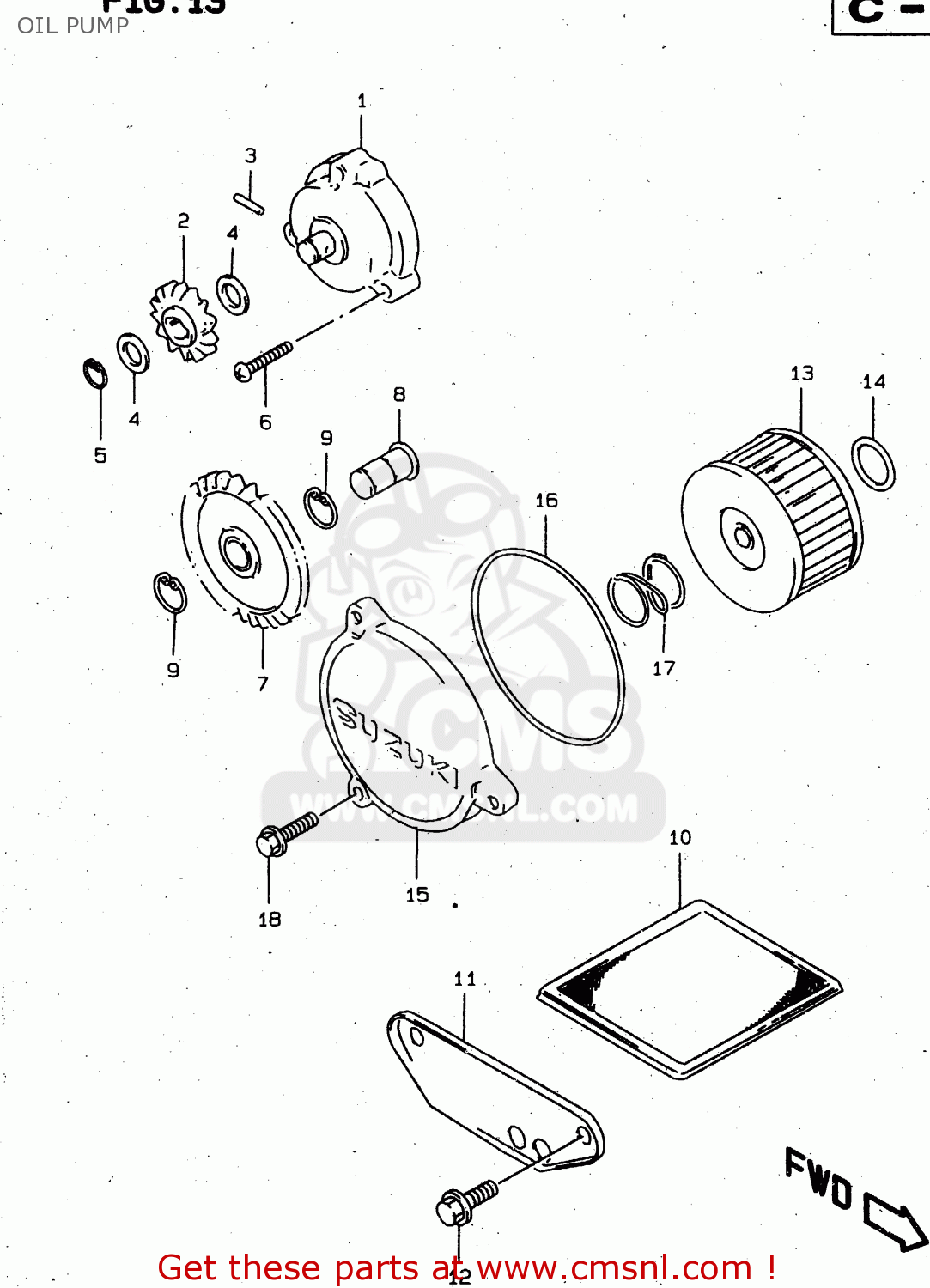

Oil pump diagram XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

OIL PUMP XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9
OIL PUMP XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9
OIL PUMP XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9
prices are in EUR
ref
part #
description
quantity
1
1640032E00
ref: 1
PUMP ASSY,ENGINE OIL
1640032E00
€ 127.00
2
1633144B00
ref: 2
MODEL V/W
GEAR,OIL PUMP DRIVEN(NT:15)
1633144B00
€ 32.50
2
1633132E00
ref: 2
MODEL X
GEAR,ENG OIL PUMP DRIVEN
€ 22.00
3
0926104009
ref: 3
PIN(4X15.8)
0926104009
€ 1.50
4
0822110185
ref: 4
MODEL V/W
SHIM
0822110185
€ 2.00
4
0918110186
ref: 4
MODEL X
SHIM(10X20X0.5)
0918110186
€ 2.00
5
0833131106
ref: 5
CIRCLIP,10MM
0833131106
€ 2.00
6
0211206253
ref: 6
SCREW
0211206253
€ 1.50
7
1632132E00
ref: 7
GEAR,OIL PUMP DRIVE(NT:30)
1632132E00
€ 18.50
8
1632232E00
ref: 8
SHAFT,ENGINE OIL PUMP DRIVE
€ 8.50
9
0833131126
ref: 9
CIRCLIP,12 MM
0833131126
€ 2.00
10
1652032E00
ref: 10
STRAINER,ENGINE OIL
1652032E00
€ 11.50
11
1652332E00
ref: 11
CAP,OIL STRAINER
1652332E00
€ 7.50
12
0910306083
ref: 12
BOLT 6X12
0910306083
€ 2.50
13
1651037450
ref: 13
FILTER ASSY,ENGINE OIL
1651037450
€ 7.50
14
0928015007
ref: 14
O RING(D:2.4,ID:15.8)
0928015007
€ 2.00
15
1651214D00
ref: 15
CAP,OIL FILTER
1651214D00
€ 23.50
16
0928072001
ref: 16
O RING(D:2.4,ID:73)
0928072001
€ 5.00
17
0944021006
ref: 17
SPRING
0944021006
€ 2.50
18
0154706167
ref: 18
BOLT
0154706167
€ 2.00
