Buy Suzuki XF Parts Online


STAND

XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

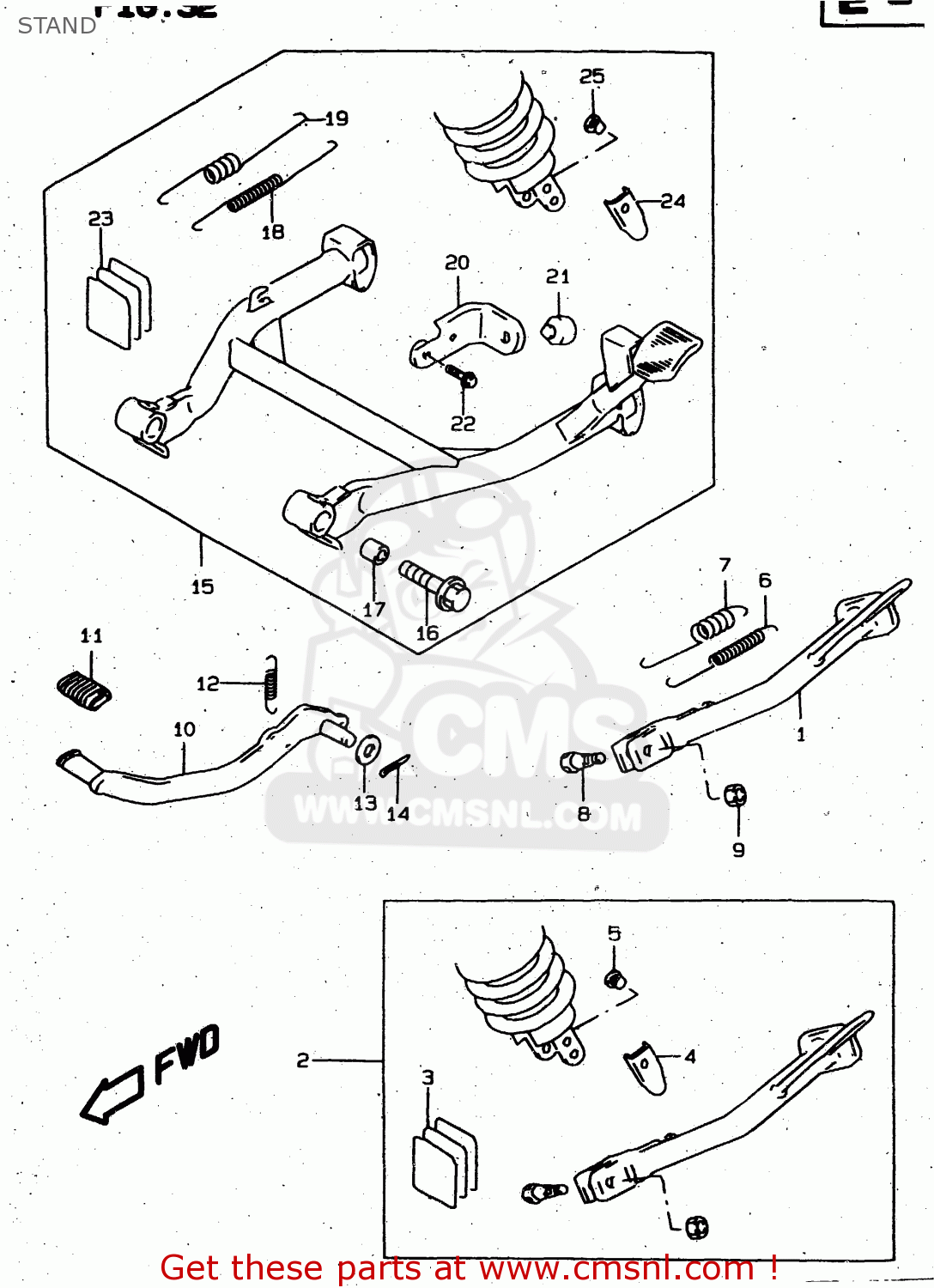

Stand diagram XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

STAND XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9
STAND XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9
STAND XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9
prices are in EUR
ref
part #
description
quantity
1
4231004F00
ref: 1
STAND COMP,PRO
4231004F00
€ 203.50
2
4230004820
ref: 2
OPT
STAND SET,PROP
€ 51.00
3
6838004F00
ref: 3
OPT
LABEL SET,SEAT HEIGHT WARNING
€ 23.00
4
6218432E00
ref: 4
OPT
PLATE,RR SHOCK ABSORBER LWR
6218432E00
€ 4.50
5
0924810006
ref: 5
OPT
PLUG
0924810006
€ 4.00
6
0944312025
ref: 6
SPRING
0944312025
€ 18.50
7
0944319006
ref: 7
SPRING
0944319006
€ 18.00
8
0911110047
ref: 8
BOLT(10X30)
0911110047
€ 4.50
9
0915910097
ref: 9
NUT
0915910097
€ 5.00
10
4311004F00
ref: 10
PEDAL,BRAKE
4311004F00
€ 48.00
11
2565249300
ref: 11
RUBBER,PEDAL
2565249300
€ 5.50
12
0944311030
ref: 12
SPRING
0944311030
€ 4.00
13
0916015002
ref: 13
MODEL V
WASHER(15.5X26X2.3)
0916015002
€ 2.00
13
0916015049
ref: 13
MODEL W/X
WASHER(15.5X24X2.3)
0916015049
€ 2.50
14
0411130308
ref: 14
COTTER PIN
0411130308
€ 1.50
15
4210004820
ref: 15
OPT
STAND,CNTR HIGH
€ 179.50
15
4210004830
ref: 15
OPT
STAND SET,CTR(LOW)
4210004830
€ 209.00
16
0910310126
ref: 16
OPT
BOLT(10X48)
0910310126
€ 4.50
17
0918010113
ref: 17
OPT
SPACER(10X16X25.5)
0918010113
€ 13.50
18
0944314059
ref: 18
OPT
SPRING
0944314059
€ 9.50
19
0944322013
ref: 19
OPT
SPRING OUTER
0944322013
€ 7.00
20
4226004F00
ref: 20
OPT
PLATE,CTR STAND CUSHION
€ 14.00
20
4226004F10
ref: 20
OPT
PLATE,CTR STAND CUSHION
4226004F10
€ 17.50
21
0932110001
ref: 21
OPT
CUSHION
0932110001
€ 2.50
22
0155006163
ref: 22
OPT
BOLT
0155006163
€ 2.50
23
6838004F00
ref: 23
OPT
LABEL SET,SEAT HEIGHT WARNING
€ 23.00
23
6838004F10
ref: 23
E24 OPT
LABEL SET
€ 23.00
24
6218432E00
ref: 24
OPT
PLATE,RR SHOCK ABSORBER LWR
6218432E00
€ 4.50
25
0924810006
ref: 25
OPT
PLUG
0924810006
€ 4.00
