CARBURETOR FITTINGS

XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

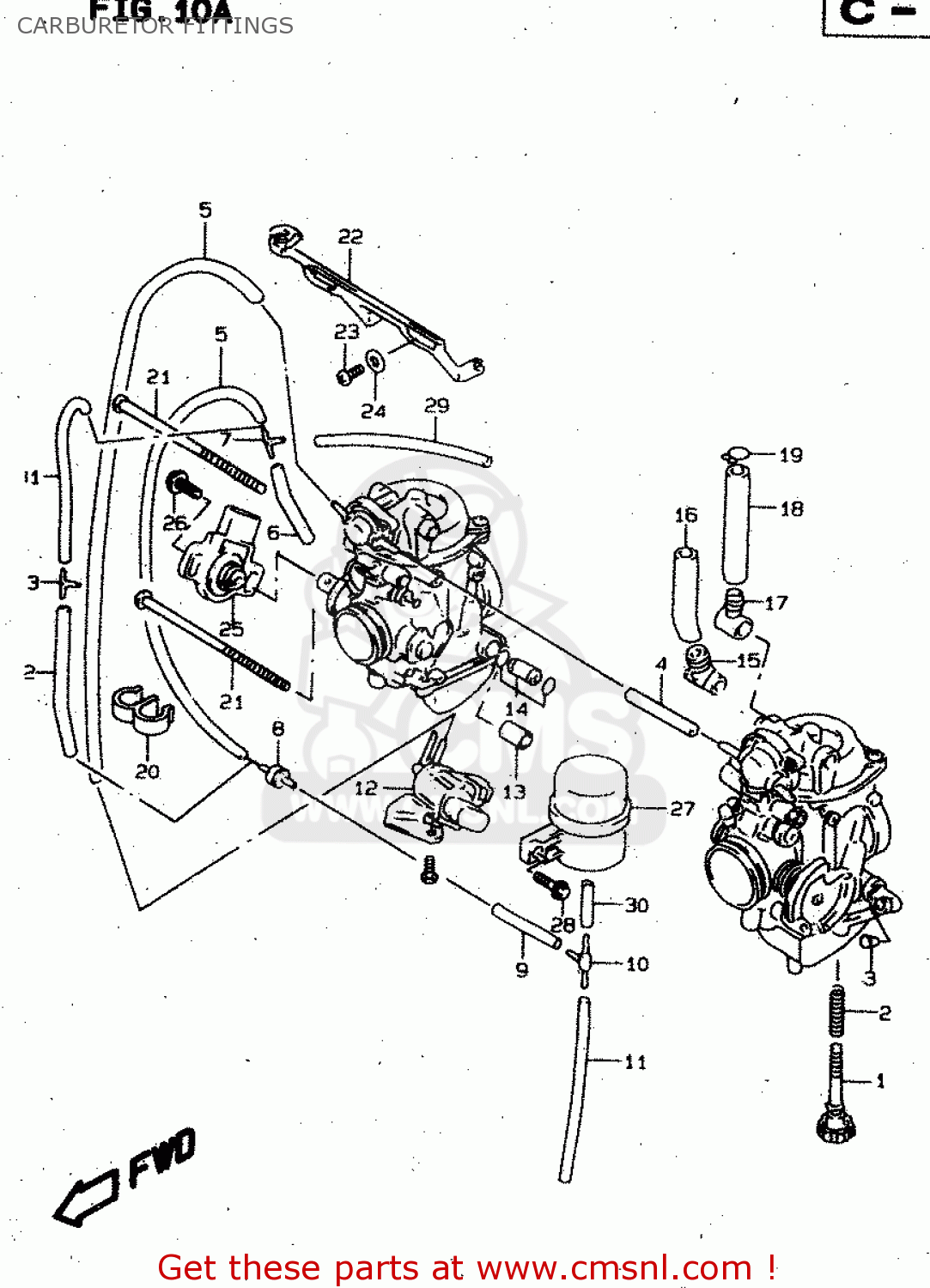

Carburetor fittings diagram XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

CARBURETOR FITTINGS XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9
CARBURETOR FITTINGS XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9
CARBURETOR FITTINGS XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9
prices are in EUR
ref
part #
description
quantity
1
1326704F00
ref: 1
ADJUSTER
€ 13.50
2
1327133C00
ref: 2
SPRING
1327133C00
€ 4.50
3
1323612C00
ref: 3
FILTER
1323612C00
€ 5.00
4
1368304F00
ref: 4
->13683-04F30
HOSE (3.2X7.4X45)
€ 11.00
5
1368304F30
ref: 5
HOSE
€ 11.00
6
1368304F40
ref: 6
->13683-04F30
HOSE (3.2X7.4X50)
€ 11.00
7
1368504F10
ref: 7
NIPPLE
€ 6.50
8
9556978040
ref: 8
VALVE,CHECK
€ 24.00
9
1368333E50
ref: 9
HOSE
€ 11.00
10
0936704007
ref: 10
3 WAY
0936704007
€ 3.50
11
1368304F50
ref: 11
->13683-04F30
HOSE (3.2X7.4X200)
€ 11.00
12
1811570G10
ref: 12
VALVE ASSY,3WAY SOLENOID
€ 73.50
13
1368504F00
ref: 13
PIPE
€ 6.00
14
1368534380
ref: 14
PIPE
€ 17.50
15
1368304F10
ref: 15
HOSE
1368304F10
€ 16.00
16
0935270121600
ref: 16
L:600->125
HOSE(7X12.1X600)
€ 20.00
17
1368334C00
ref: 17
3 WAY
1368334C00
€ 10.50
18
1368304F20
ref: 18
HOSE
€ 24.00
19
1367104F00
ref: 19
CLIP
€ 4.50
20
0940800033
ref: 20
CLAMP
€ 2.50
21
0912506003
ref: 21
SCREW(6X100)
0912506003
€ 4.00
22
1341304F00
ref: 22
LEVER
1341304F00
€ 13.00
23
0214204083
ref: 23
SCREW
0214204083
€ 1.50
24
1355733E00
ref: 24
PACKING
1355733E00
€ 3.00
25
1355013D60
ref: 25
SENSOR ASSY,THROTTLE
1355013D60
€ 129.50
26
1360255A00
ref: 26
SCREW, SENSOR
1360255A00
€ 3.00
27
1371504F00
ref: 27
CHAMBER,VACUUM
1371504F00
€ 20.00
28
0154706123
ref: 28
BOLT
0154706123
€ 2.00
29
0935550105600
ref: 29
L:600->230
HOSE(5X10X600)
€ 7.50
30
0935535755600
ref: 30
L:600->30
HOSE(3.5X7.5X600)
0935535755600
€ 10.00
31
1368304F60
ref: 31
E18
HOSE
€ 11.00
32
1368304F70
ref: 32
E18
HOSE
€ 11.00
33
0936704007
ref: 33
E18
3 WAY
0936704007
€ 3.50
