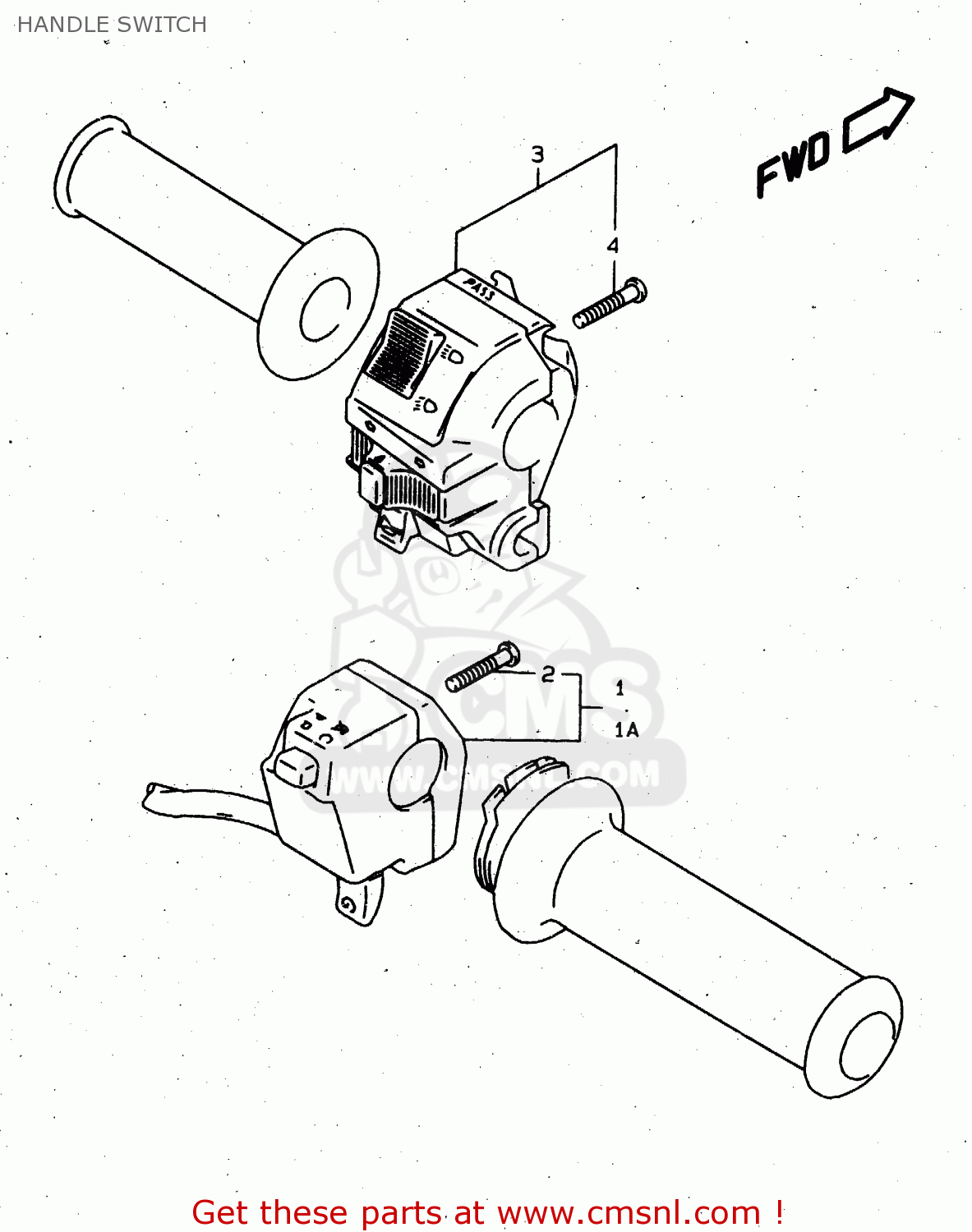

HANDLE SWITCH

XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

Handle switch diagram XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

HANDLE SWITCH XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

HANDLE SWITCH XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

prices are in EUR

ref

part #

description

quantity

1

3720004F00
ref: 1

SWITCH ASSY,HANDLE,R

€ 118.50

1A

3720004F10
ref: 1A
E24

SWITCH ASSY,HANDLE,R

€ 0.00

2

0912505066
ref: 2

SCREW(5X25)

€ 2.00

3

3740004F00
ref: 3

SWITCH ASSY,HANDLE,L

€ 118.50

4

0211205305
ref: 4

SCREW

€ 1.50
