WIRING HARNESS

XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

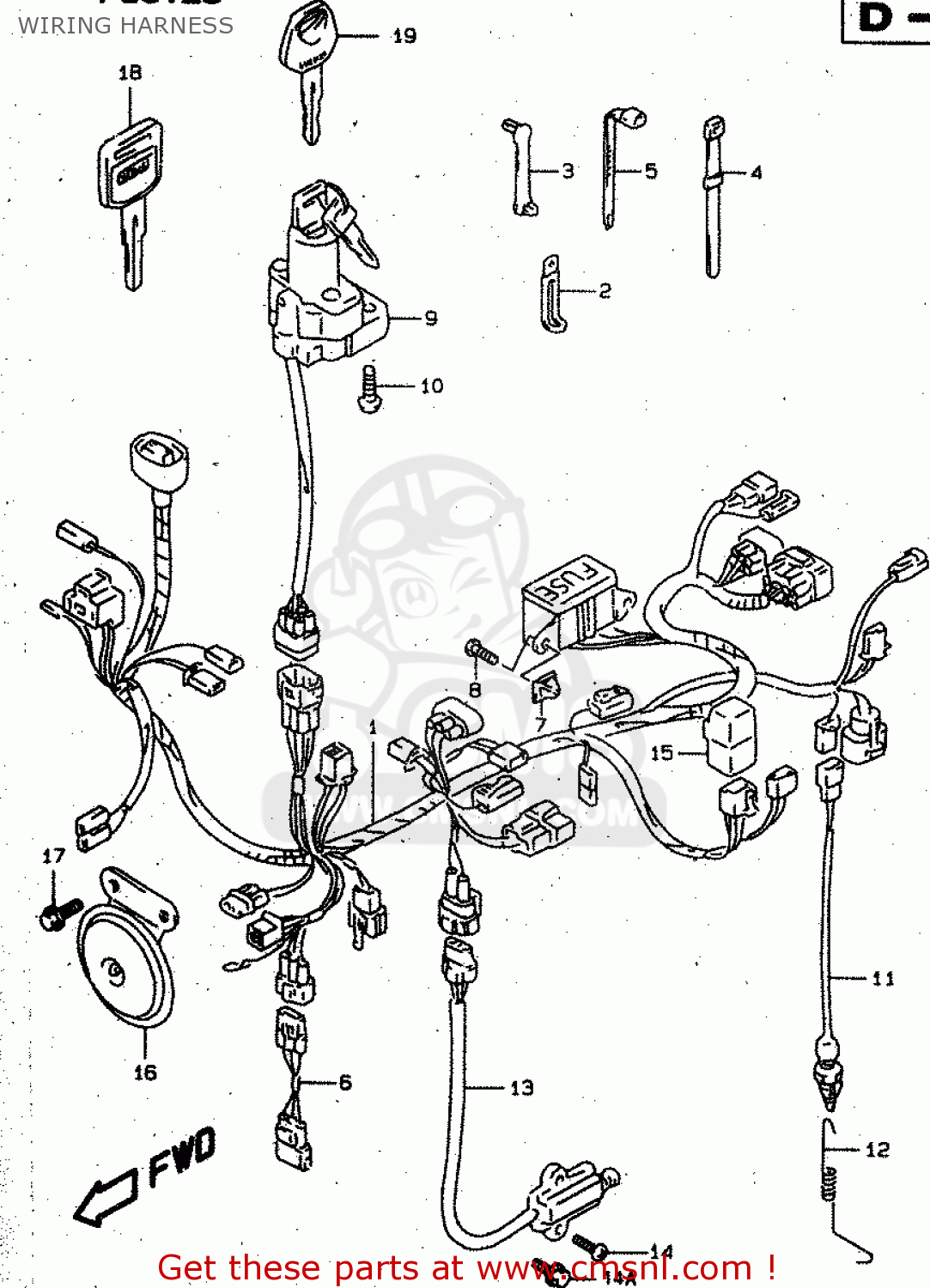

Wiring harness diagram XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

WIRING HARNESS XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9
WIRING HARNESS XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9
WIRING HARNESS XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9
prices are in EUR
ref
part #
description
quantity
1
3661004F00
ref: 1
HARNESS,WIRING
€ 453.50
2
0940406432
ref: 2
<-09404-06429
CLAMP(L:65)
0940406432
€ 2.50
3
0940703401
ref: 3
CLAMP(L:33)
0940703401
€ 3.50
4
0940712402
ref: 4
CLAMP(L:120)
0940712402
€ 3.00
5
0940714403
ref: 5
CLAMP(L:125)
0940714403
€ 2.50
5
0940718402
ref: 5
<-09407-18403
CLAMP(L:165)
0940718402
€ 2.50
5
0940725401
ref: 5
CLAMP(L:235)
0940725401
€ 4.00
6
3685132E00
ref: 6
MODEL V E18
WIRE,THROTTLE SENSOR
€ 6.50
7
0914806006
ref: 7
NUT
€ 1.50
8
0354206203
ref: 8
SCREW
0354206203
€ 2.00
9
3710004F00
ref: 9
LOCK ASSY,STEERING
3710004F00
€ 143.00
9
3710004F10
ref: 9
E24
LOCK ASSY,STEERING
3710004F10
€ 143.50
10
0913908016
ref: 10
BOLT(8X20)
0913908016
€ 3.50
11
3774032E00
ref: 11
SWITCH ASSY,STOP LAMP
3774032E00
€ 21.50
12
0944306058
ref: 12
SPRING
€ 18.00
13
3784044X50
ref: 13
SWITCH ASSY,SIDE STAND
3784044X50
€ 75.50
14
0211206163
ref: 14
MODEL V
SCREW 6X16
0211206163
€ 2.00
14A
0155006163
ref: 14A
MODEL W
BOLT
0155006163
€ 2.50
15
3874024X50
ref: 15
RELAY ASSY
3874024X50
€ 37.50
16
3850012D01
ref: 16
HORN ASSY
3850012D01
€ 48.00
17
0155006163
ref: 17
BOLT
0155006163
€ 2.50
18
3714646E00
ref: 18
OPT
KEY,BLANK
3714646E00
€ 13.00
19
3714633E00
ref: 19
OPT
KEY,BLANK
3714633E00
€ 13.00
