CYLINDER HEAD

XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

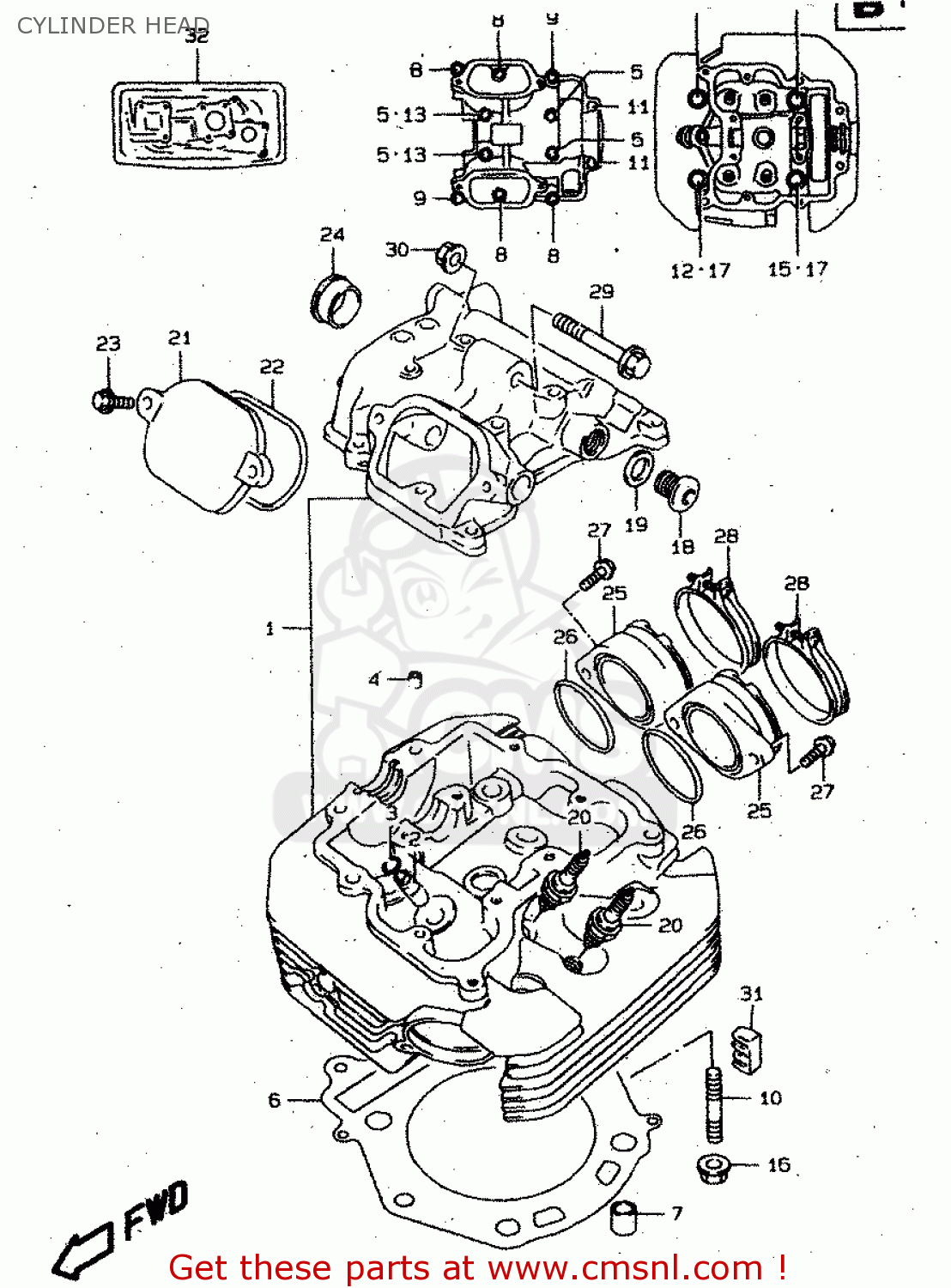

Cylinder head diagram XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

CYLINDER HEAD XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9
CYLINDER HEAD XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9
CYLINDER HEAD XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9
prices are in EUR
ref
part #
description
quantity
1
1110004F00
ref: 1
HEAD ASSY,CYLINDER
€ 1,222.50
1
1110004F10
ref: 1
E18
HEAD ASSY,CYLINDER
€ 945.00
2
1111532E70
ref: 2
GUIDE,VALVE
1111532E70
€ 18.50
3
0938110004
ref: 3
RING,SNAP
0938110004
€ 1.50
4
0920608001
ref: 4
PIN(6.2X8X11)
0920608001
€ 2.00
5
0910306102
ref: 5
BOLT(6X55)
0910306102
€ 2.50
6
1114132E00
ref: 6
GASKET,CYLINDER HEAD
1114132E00
€ 31.00
7
0421113189
ref: 7
PIN
0421113189
€ 2.50
8
0155006253
ref: 8
BOLT
0155006253
€ 2.50
9
0155006303
ref: 9
BOLT
0155006303
€ 2.50
10
0910808142
ref: 10
BOLT,STUD
0910808142
€ 3.00
11
0910306167
ref: 11
BOLT(6X115)
0910306167
€ 4.50
12
0910310178
ref: 12
BOLT(10X180)
0910310178
€ 12.50
13
0916806023
ref: 13
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
14
0910310179
ref: 14
BOLT(10X190)
0910310179
€ 12.50
15
0910310180
ref: 15
BOLT(10X200)
0910310180
€ 10.50
16
0831610083
ref: 16
NUT
0831610083
€ 3.00
17
0916810017
ref: 17
GASKET(10.5X22X2) (NAS)
0916810017
€ 3.50
18
0924814005
ref: 18
PLUG,14X12
0924814005
€ 5.00
19
0916814002
ref: 19
GASKET(13.8X18.8X4.8) (NAS)
0916814002
€ 2.50
20
0948200460
ref: 20
PLUG,SPARK(CR10E)
0948200460
€ 8.50
20
0948200461
ref: 20
PLUG,SPARK(U31ESR-N)
€ 8.50
20
0948200458
ref: 20
OPT
PLUG,SPARK(NGK CR9E)
0948200458
€ 8.50
20
0948200459
ref: 20
OPT
PLUG,SPARK(U27ESR-N)
0948200459
€ 8.50
21
1117544B00
ref: 21
CAP,INSPECTION
1117544B00
€ 14.50
22
1117744B01
ref: 22
O RING,INSPECTION CAP
1117744B01
€ 6.00
23
0155006203
ref: 23
BOLT
0155006203
€ 2.50
24
0924125007
ref: 24
PLUG,OD:30
0924125007
€ 6.00
25
1310004F00
ref: 25
PIPE ASSY,INTAKE
1310004F00
€ 40.00
26
0928040010
ref: 26
O RING(D:2.4,ID:39.7)
0928040010
€ 3.50
27
0912006010
ref: 27
SCREW
0912006010
€ 3.00
28
0940248208
ref: 28
CLAMP
0940248208
€ 4.50
29
0910308217
ref: 29
BOLT(8X60)
0910308217
€ 3.00
30
0831931083
ref: 30
NUT
0831931083
€ 2.50
31
1115132E00
ref: 31
PAD,CYLINDER HEAD RUBBER
1115132E00
€ 4.50
32
1140104821
ref: 32
NOT INCLUDE 2ND AIR
GASKET SET
€ 121.50
