REAR SWINGING ARM

XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

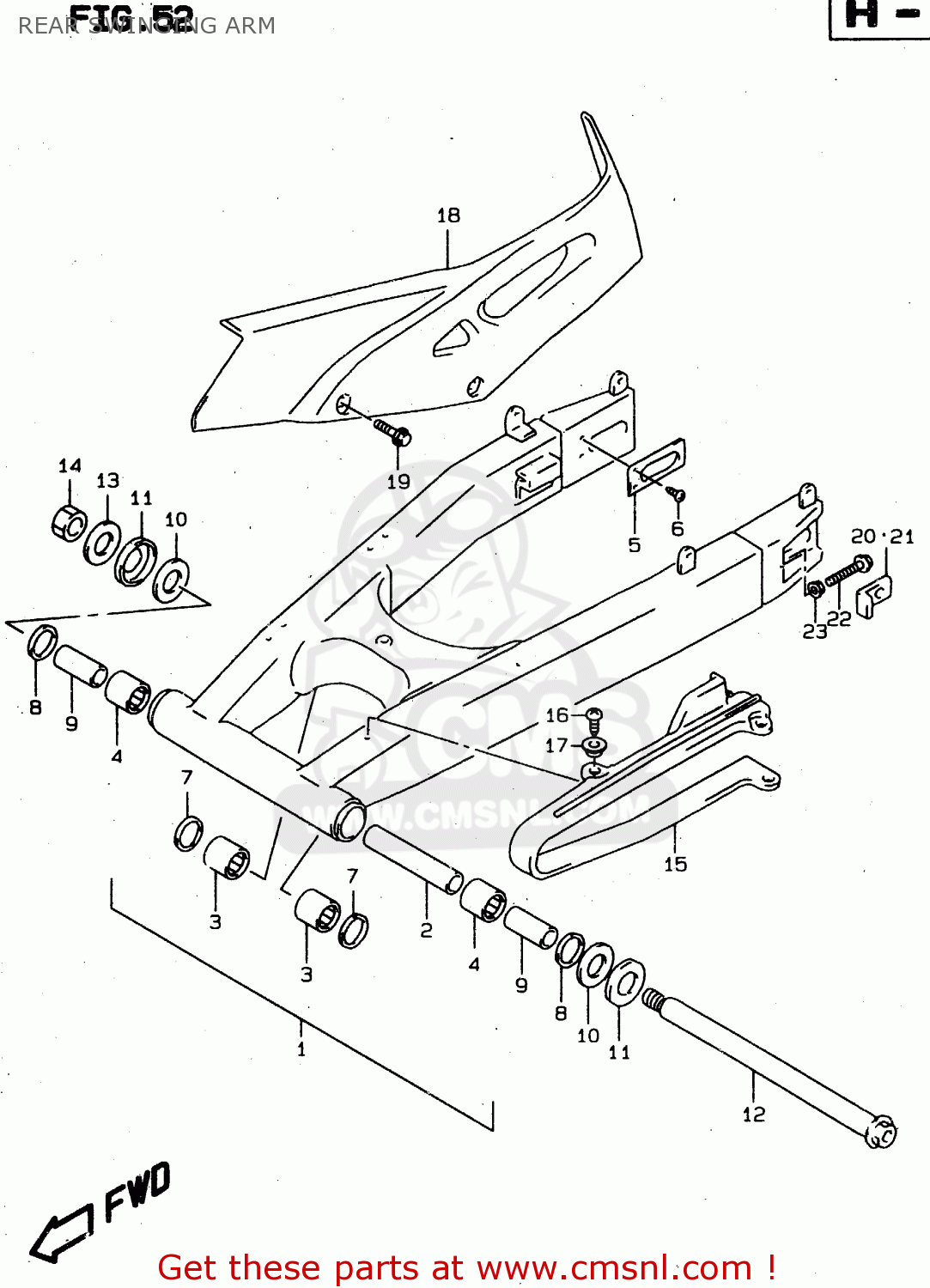

Rear swinging arm diagram XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

REAR SWINGING ARM XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9
REAR SWINGING ARM XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9
REAR SWINGING ARM XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9
prices are in EUR
ref
part #
description
quantity
1
6100004F00
ref: 1
SWINGINGARM ASSY,RR
€ 1,164.00
2
6128232E00
ref: 2
SPACER,SWGARM PIVOT CTR
6128232E00
€ 11.00
3
0926320071
ref: 3
BEARING(20X27X23.5)
0926320071
€ 21.50
4
0926322017
ref: 4
BEARING(22X29X30)
0926322017
€ 18.50
5
6112417E10
ref: 5
PLATE,RR SWING ARM BRKT
6112417E10
€ 4.50
6
0214206103
ref: 6
SCREW 6X10
0214206103
€ 2.00
7
0928320031
ref: 7
SEAL,OIL(20X27X5)
0928320031
€ 5.00
8
0928522001
ref: 8
SEAL,OIL(22X29X4)
0928522001
€ 5.00
9
6125114D00
ref: 9
SPACER,SWGARM PIVOT BRG
6125114D00
€ 11.00
10
0821117341
ref: 10
WASHER
0821117341
€ 2.00
11
6126228C10
ref: 11
COVER,SWINGINGARM PIVOT
6126228C10
€ 4.50
12
6471108D00
ref: 12
AXLE,RR
€ 74.00
13
0832201163
ref: 13
WASHER, FIXED DRIVE FACE
0832201163
€ 2.00
14
0915916007
ref: 14
NUT
0915916007
€ 10.50
15
6127313E01
ref: 15
BUFFER,CHAIN TOUCH DEFENSE
6127313E01
€ 30.00
16
0214206123
ref: 16
SCREW 6X12
0214206123
€ 2.00
17
0916906057
ref: 17
WASHER
0916906057
€ 4.00
18
6131104F00
ref: 18
CASE,CHAIN
6131104F00
€ 33.50
19
6316304F00
ref: 19
BOLT,CHAIN CASE
€ 4.50
20
6144617E10
ref: 20
RH
WASHER,CHAIN ADJUSTER
6144617E10
€ 28.50
21
6144627C20
ref: 21
LH
WASHER,CHAIN ADJUSTER
6144627C20
€ 23.50
22
0910008287
ref: 22
BOLT(8X50)
0910008287
€ 3.00
23
0831610083
ref: 23
NUT
0831610083
€ 3.00
