BATTERY

XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

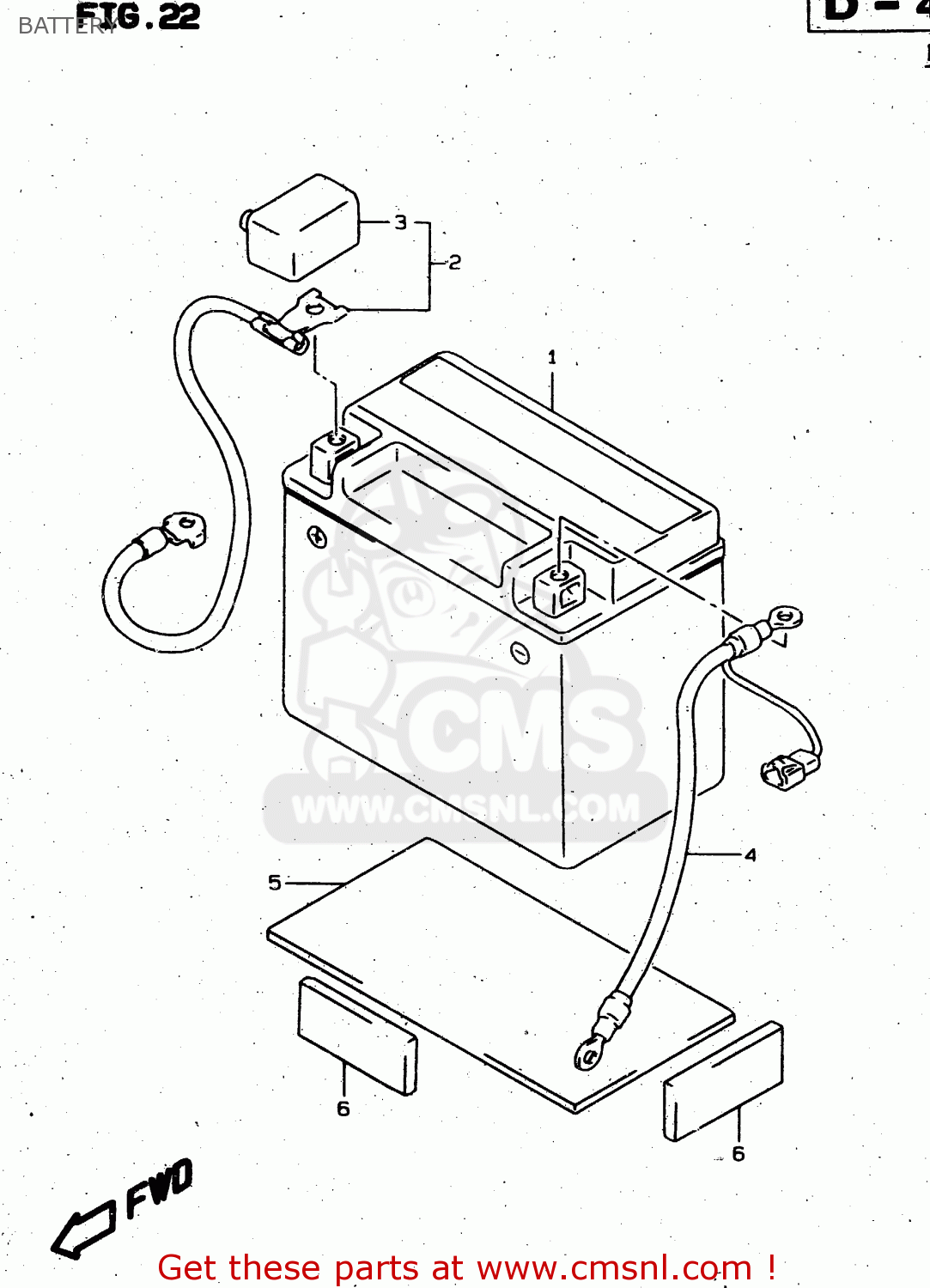

Battery diagram XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

BATTERY XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

BATTERY XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

prices are in EUR

ref

part #

description

quantity

1

3361032C10
ref: 1

BATTERY ASSY(YTX9-BS,12V8AH)

€ 108.50

2

3382004F00
ref: 2

WIRE,BATTERY PLUS

€ 19.50

3

3362405A00
ref: 3

CAP,BATTERY PLUS TERMINAL

€ 4.50

4

3386004F00
ref: 4

WIRE,BATTERY MINUS

€ 16.50

5

3365137000
ref: 5
CUT AS REQUIRED PROF

PROTECTOR(170X95X3.0)

€ 5.00

6

3365228000
ref: 6

CUSHION 20X45X6

€ 6.00
