CRANK BALANCER

XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

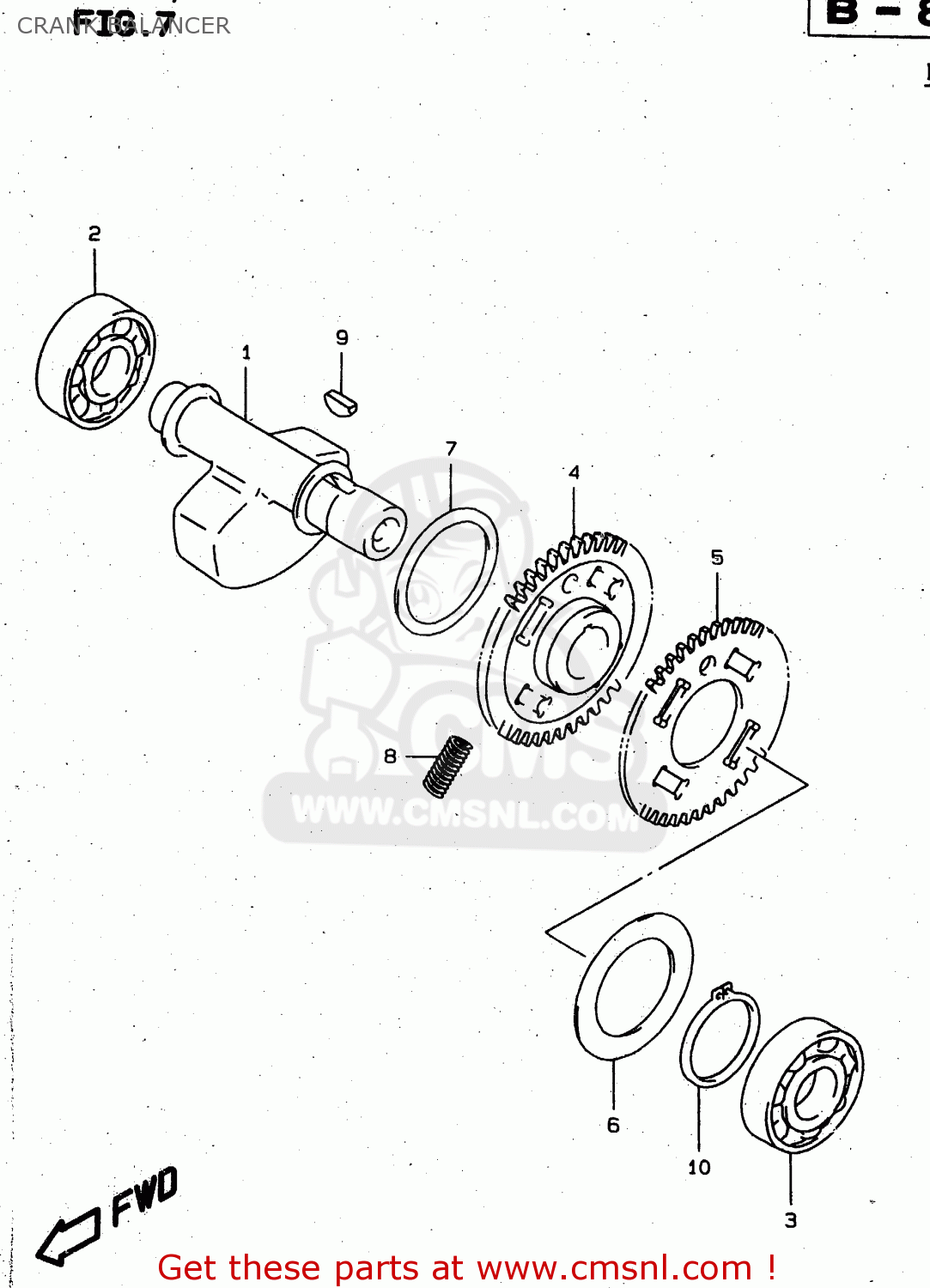

Crank balancer diagram XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

CRANK BALANCER XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

CRANK BALANCER XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

prices are in EUR

ref

part #

description

quantity

1

1265132E00
ref: 1

BALANCER,CRANK

€ 110.00

2

0926222029
ref: 2

BEARING(22X56X16)

€ 45.50

3

0926220121
ref: 3

BEARING(20X47X14)

€ 28.00

4

1266604F00
ref: 4

GEAR,CRANK BALANCER DRIVE

€ 85.50

5

1266704F00
ref: 5

GEAR,CRANK BALANCER DRIVE

€ 46.50

6

0916438004
ref: 6

WASHER

€ 4.00

7

0821138582
ref: 7

WASHER

€ 5.00

8

0944006020
ref: 8

SPRING

€ 14.00

9

0942004008
ref: 9

KEY

€ 3.50

10

0833131383
ref: 10

CIRCLIP

€ 2.50
