FUEL COCK

XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

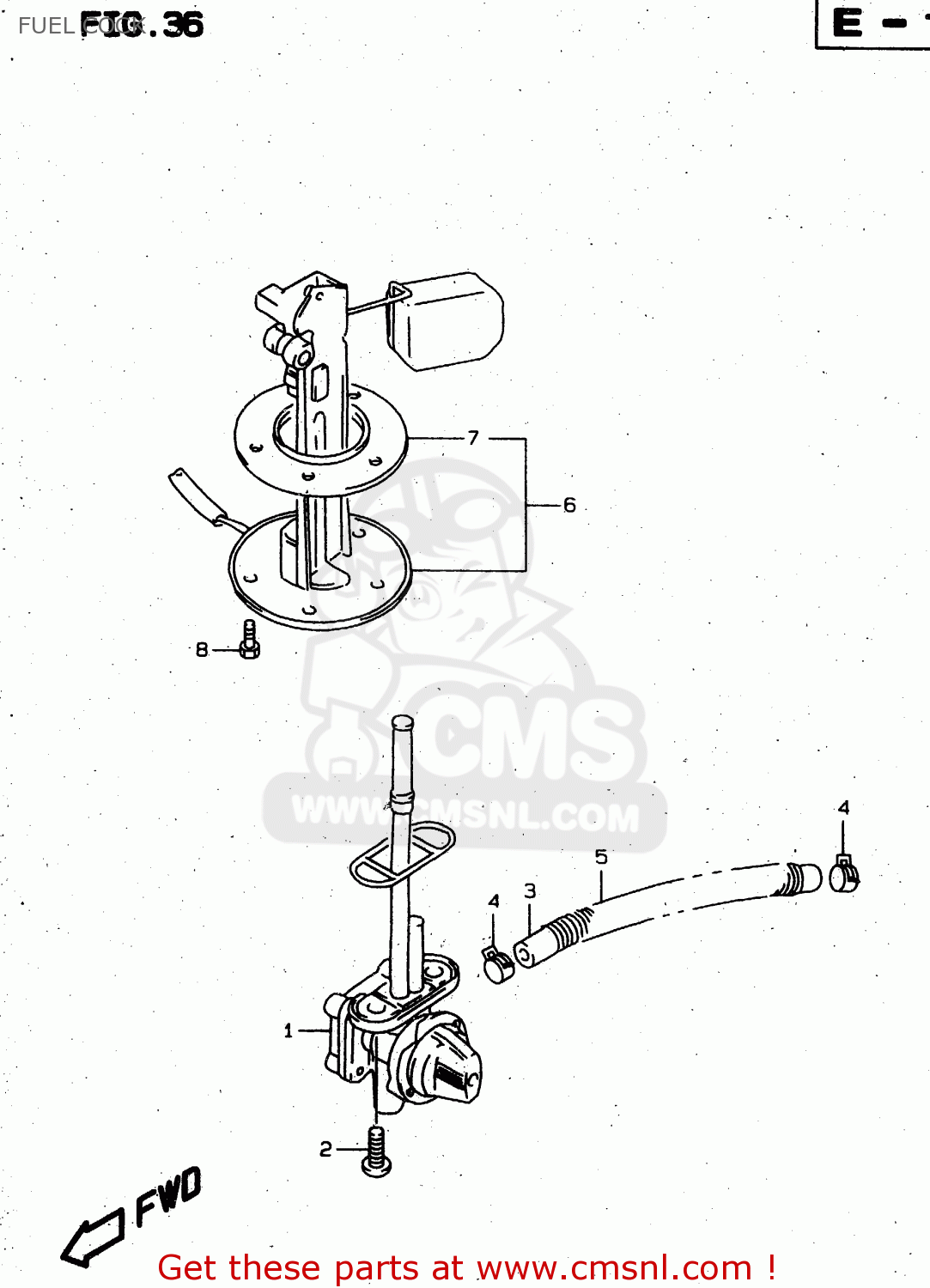

Fuel cock diagram XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

FUEL COCK XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

FUEL COCK XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

prices are in EUR

ref

part #

description

quantity

1

4430004F00
ref: 1
MODEL V

COCK ASSY,FUEL

€ 160.00

1

4430004F01
ref: 1
MODEL W/X

COCK ASSY,FUEL

€ 160.00

2

0211236163
ref: 2

SCREW

€ 2.50

3

0935570125600
ref: 3

HOSE(7X12X600)

€ 26.00

4

0940111407
ref: 4

CLIP

€ 2.50

5

0944014048
ref: 5

SPRING

€ 5.50

6

3481004F00
ref: 6

GAUGE ASSY,FUEL LEVEL SENDER

€ 162.00

7

3482504F00
ref: 7

GASKET (NAS)

€ 37.50

8

0911705003
ref: 8

BOLT 5X10

€ 2.00
