CLUTCH

XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

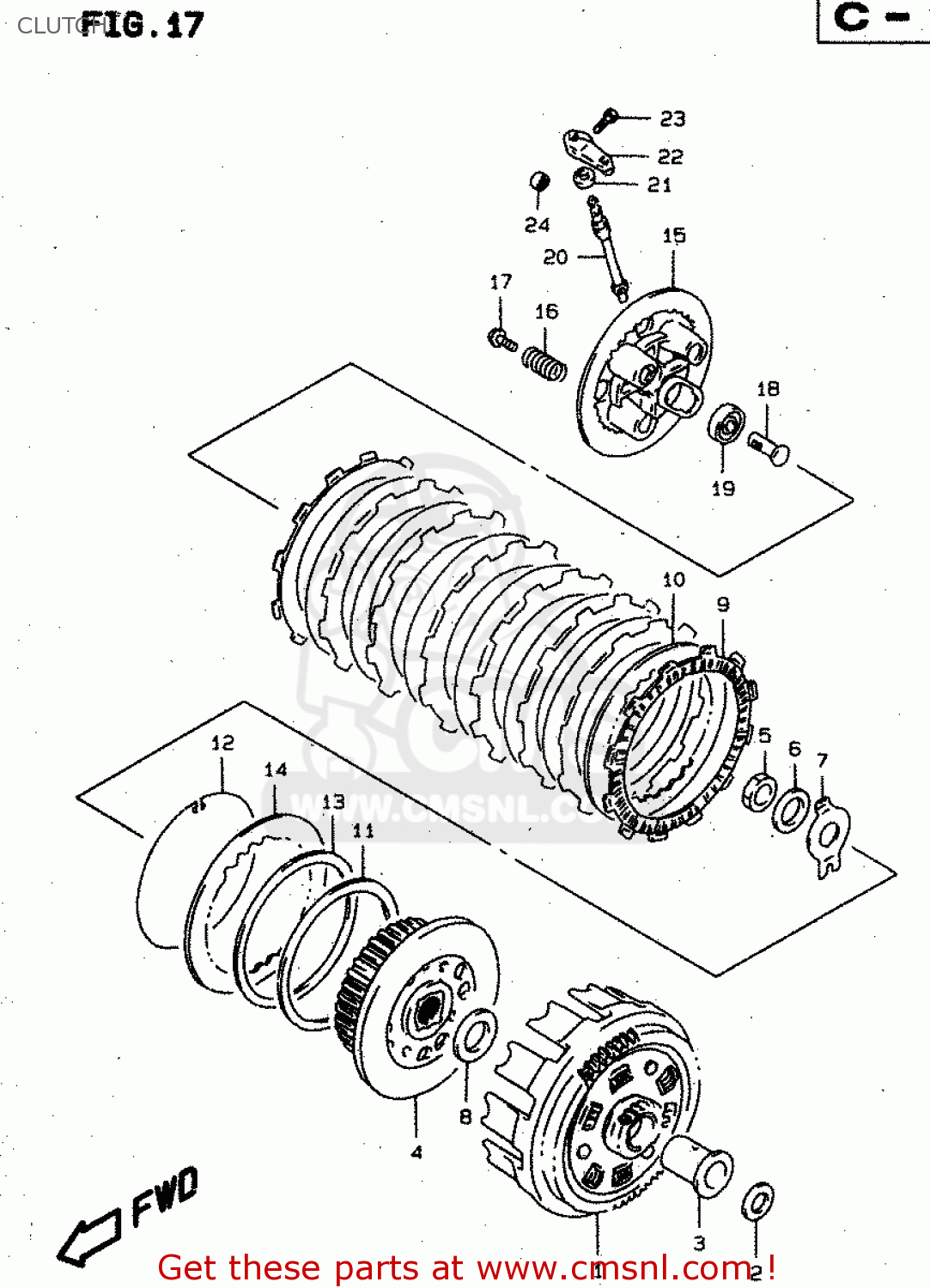

Clutch diagram XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

CLUTCH XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9
CLUTCH XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9
CLUTCH XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9
prices are in EUR
ref
part #
description
quantity
1
2120044B21
ref: 1
NT:61/20
GEAR ASSY,PRI DRIVEN
2120044B21
€ 296.00
2
0916022032
ref: 2
WASHER(22X32X3)
0916022032
€ 4.00
3
2125132E00
ref: 3
SPACER,PRIMARY DRIVEN GEAR
2125132E00
€ 18.00
4
2141044B00
ref: 4
HUB,CLUTCH SLEEVE
2141044B00
€ 95.50
5
0914020001
ref: 5
NUT
0914020001
€ 3.50
6
0916420002
ref: 6
WASHER
0916420002
€ 3.50
7
0916920005
ref: 7
WASHER
0916920005
€ 2.50
8
0916022068
ref: 8
WASHER(22X44X2)
0916022068
€ 9.00
9
2144131D10
ref: 9
PLATE,CLUTCH D
2144131D10
€ 16.00
10
2145144B00
ref: 10
T:1.6
PLATE,CLUTCH DRIVEN NO.1 (NAS)
2145144B00
€ 7.00
11
2147149100
ref: 11
SEAT,WAVE WASHER
2147149100
€ 8.00
12
2148145100
ref: 12
RING,STOPPER
2148145100
€ 5.00
13
0916400003
ref: 13
WASHER
0916400003
€ 9.00
14
2145149200
ref: 14
T:2
PLATE,CLUTCH DRIVEN (NAS)
2145149200
€ 6.00
15
2146231D00
ref: 15
DISC,CLUTCH PRESSURE
2146231D00
€ 38.50
16
0944020016
ref: 16
SPRING
0944020016
€ 5.00
17
0911606168
ref: 17
BOLT(6X16)
0911606168
€ 2.50
18
2316531D00
ref: 18
RACK,CLUTCH RELEASE
2316531D00
€ 17.00
19
0815062007
ref: 19
BEARING
0815062007
€ 15.50
20
2326132E00
ref: 20
PINION,CLUTCH RELEASE
2326132E00
€ 39.00
21
0928510004
ref: 21
SEAL,OIL(10X17X5)
0928510004
€ 3.50
22
2327131D00
ref: 22
ARM,CLUTCH RELEASE
2327131D00
€ 27.50
23
0150006163
ref: 23
BOLT
0150006163
€ 2.00
24
0926312024
ref: 24
BEARING(12X16X10)
0926312024
€ 11.00
