CARRIER

XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

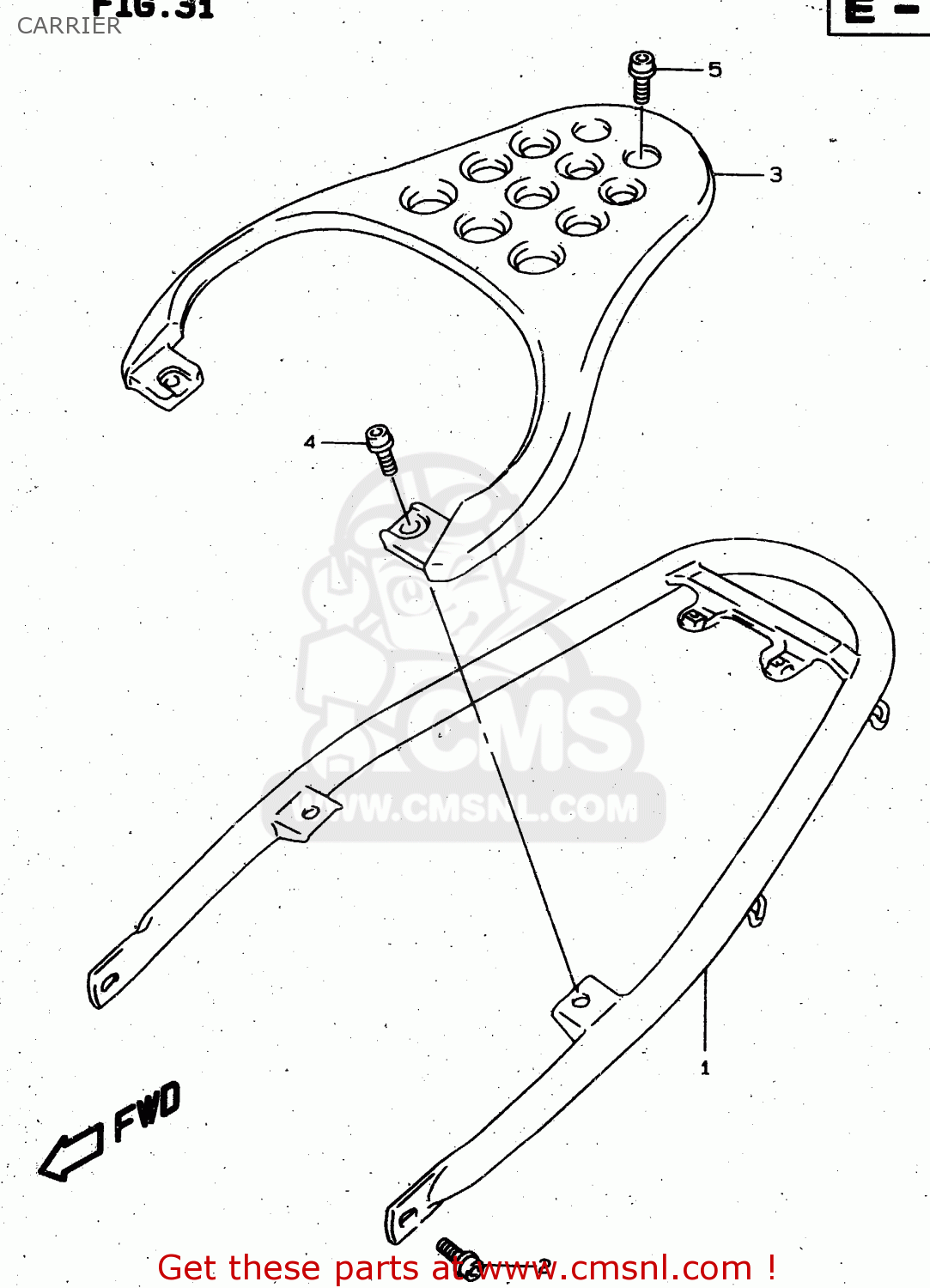

Carrier diagram XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

CARRIER XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

CARRIER XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

prices are in EUR

ref

part #

description

quantity

1

4120004F00Y0W
ref: 1
MODEL V FOR G7G

FRAME,RR(ORANGE)

€ 109.50

1

4120004F00Y2D
ref: 1
MODEL V FOR H3P

FRAME,RR(SILVER)

€ 234.00

1

4120004F00Y0P
ref: 1
MODEL V FOR H3R

FRAME, REAR (BLUE)

€ 109.50

1

4120004F00Y2D
ref: 1
MODEL W/X

FRAME,RR(SILVER)

€ 234.00

2

0712008163
ref: 2

BOLT

€ 3.00

3

4631104F00Y2D
ref: 3

CARRIER,SPORT

€ 154.50

4

0712008303
ref: 4

BOLT

€ 3.50

5

0712008203
ref: 5

BOLT

€ 3.00
