HEADLAMP (E2, E24)

XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

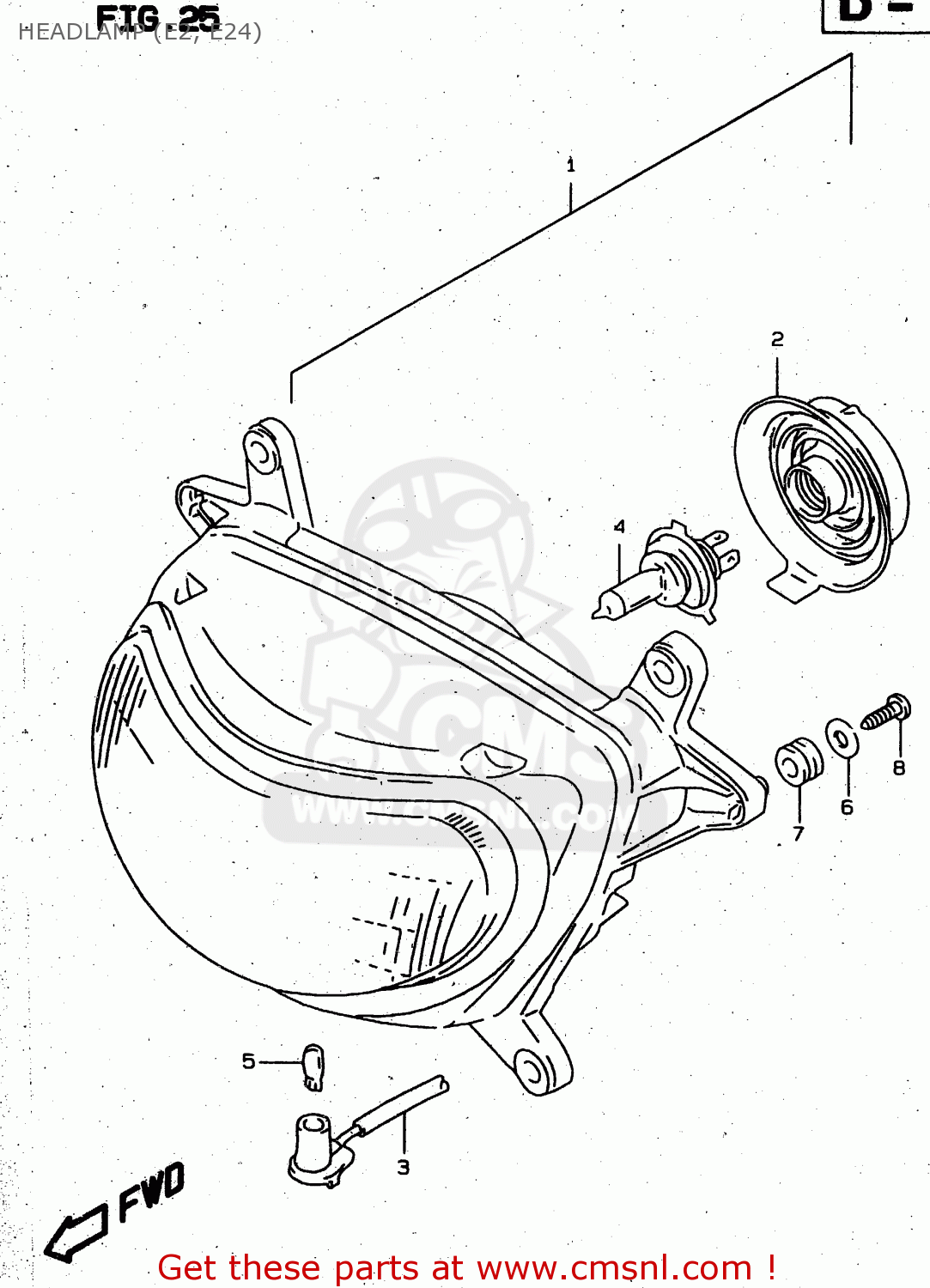

Headlamp (e2, e24) diagram XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

HEADLAMP (E2, E24) XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

HEADLAMP (E2, E24) XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

prices are in EUR

ref

part #

description

quantity

1

3510004F20999
ref: 1
E2

HEADLAMP ASSY

€ 373.00

1

3510004F30999
ref: 1
E24

HEADLAMP ASSY

€ 0.00

2

3517342E00
ref: 2

COVER

€ 20.50

3

3611804F20
ref: 3
E2

CORD ASSY

€ 16.50

4

0947112185
ref: 4

BULB(12V60/55W,H4)

€ 8.00

5

0947112081
ref: 5
E2

BULB(12V5W)

€ 1.50

6

0916005045
ref: 6
<-09160-05003

WASHER(5.5X18X1)

€ 2.00

7

0932008051
ref: 7

CUSHION

€ 7.50

8

0351205163
ref: 8

SCREW

€ 2.50
