FRONT DAMPER

XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

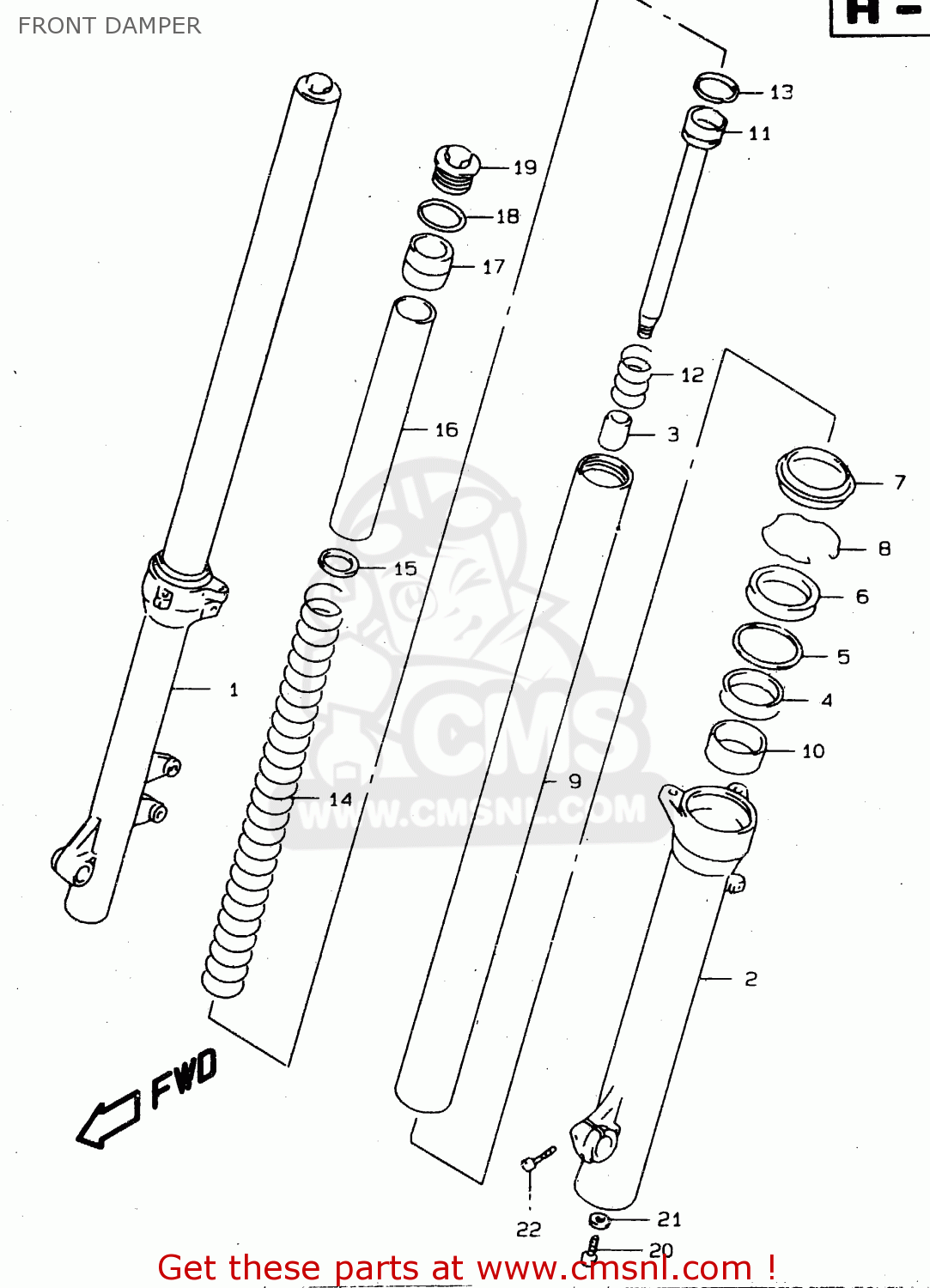

Front damper diagram XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

FRONT DAMPER XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9
FRONT DAMPER XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9
FRONT DAMPER XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9
prices are in EUR
ref
part #
description
quantity
0
5110304F00
ref: 0
DAMPER ASSY,FR FORK,R
€ 599.50
0
5110404F00
ref: 0
DAMPER ASSY,FR FORK,L
€ 599.50
1
5113004F00
ref: 1
TUBE,OUTER,R
€ 417.00
2
5114004F00
ref: 2
TUBE,OUTER,L
€ 409.50
3
5119506C00
ref: 3
PIECE,OIL LOCK
5119506C00
€ 13.00
4
5116740C00
ref: 4
METAL,SLIDE
5116740C00
€ 13.50
5
5115814200
ref: 5
WASHER
5115814200
€ 4.00
6
5115304F00
ref: 6
SEAL,OIL
5115304F00
€ 18.50
7
5117304F00
ref: 7
SEAL,DUST
5117304F00
€ 19.00
8
5115614200
ref: 8
RING,STOPPER
5115614200
€ 4.50
9
5111004F00
ref: 9
TUBE,INNER
€ 459.00
10
5112140C00
ref: 10
PISTON
5112140C00
€ 11.50
11
5119004F00
ref: 11
CYLINDER
€ 87.50
12
5117714330
ref: 12
SPRING,REBOUND
5117714330
€ 5.50
13
5119631D00
ref: 13
RING,PISTON
5119631D00
€ 6.00
14
5117104F00
ref: 14
SPRING,FR
5117104F00
€ 76.50
15
5117232E00
ref: 15
WASHER
€ 4.00
16
5117504F00
ref: 16
SPACER
5117504F00
€ 21.50
17
5117604F00
ref: 17
SPACER
5117604F00
€ 16.50
18
5111714200
ref: 18
O RING
5111714200
€ 2.00
19
5135131D00
ref: 19
CAP,FORK
5135131D00
€ 32.50
20
5114716510
ref: 20
BOLT,FORK CYLINDER(10X25)
5114716510
€ 3.50
21
5114841310
ref: 21
GASKET (NAS)
5114841310
€ 2.50
22
5113844B00
ref: 22
BOLT,SOCKET HEAD(8X22)
5113844B00
€ 4.00
