OIL COOLER

XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

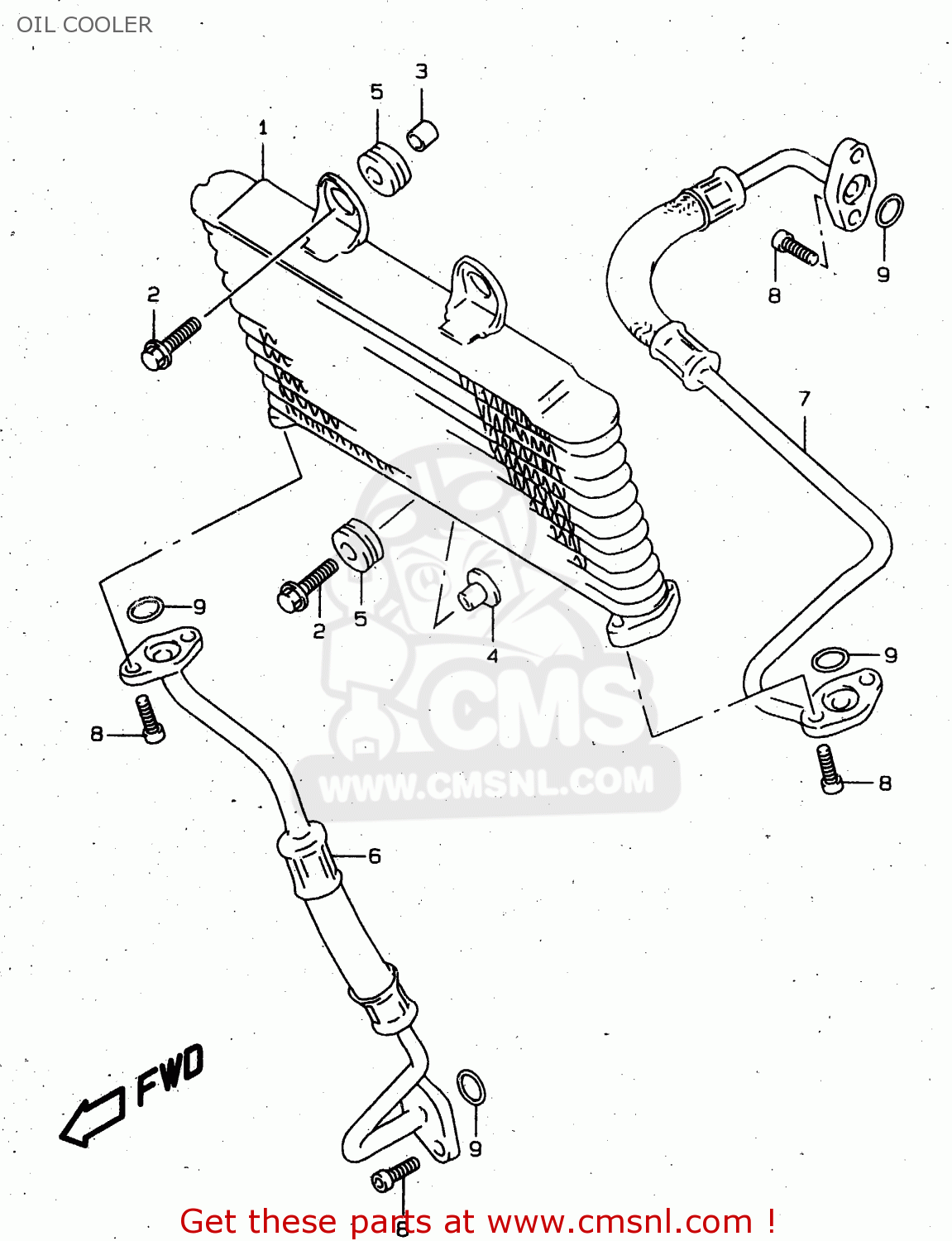

Oil cooler diagram XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

OIL COOLER XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

OIL COOLER XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

prices are in EUR

ref

part #

description

quantity

1

1660004F00
ref: 1

COOLER ASSY,OIL

€ 759.00

2

0911606129
ref: 2

BOLT(6X30)

€ 2.00

3

0918006310
ref: 3

SPACER(6.5X10X10)

€ 2.00

4

0918006319
ref: 4

SPACER(6.5X10X11.6)

€ 3.50

5

0932010015
ref: 5

CUSHION

€ 2.50

6

1646004F00
ref: 6

HOSE,OIL COOLER,R

€ 173.00

7

1647004F00
ref: 7

HOSE,OIL COOLER,L

€ 82.00

8

0713006163
ref: 8

BOLT,OIL FILLE

€ 3.00

9

0928012008
ref: 9

O RING(D:2.4,ID:12.3)

€ 3.00
