SPEEDOMETER

XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

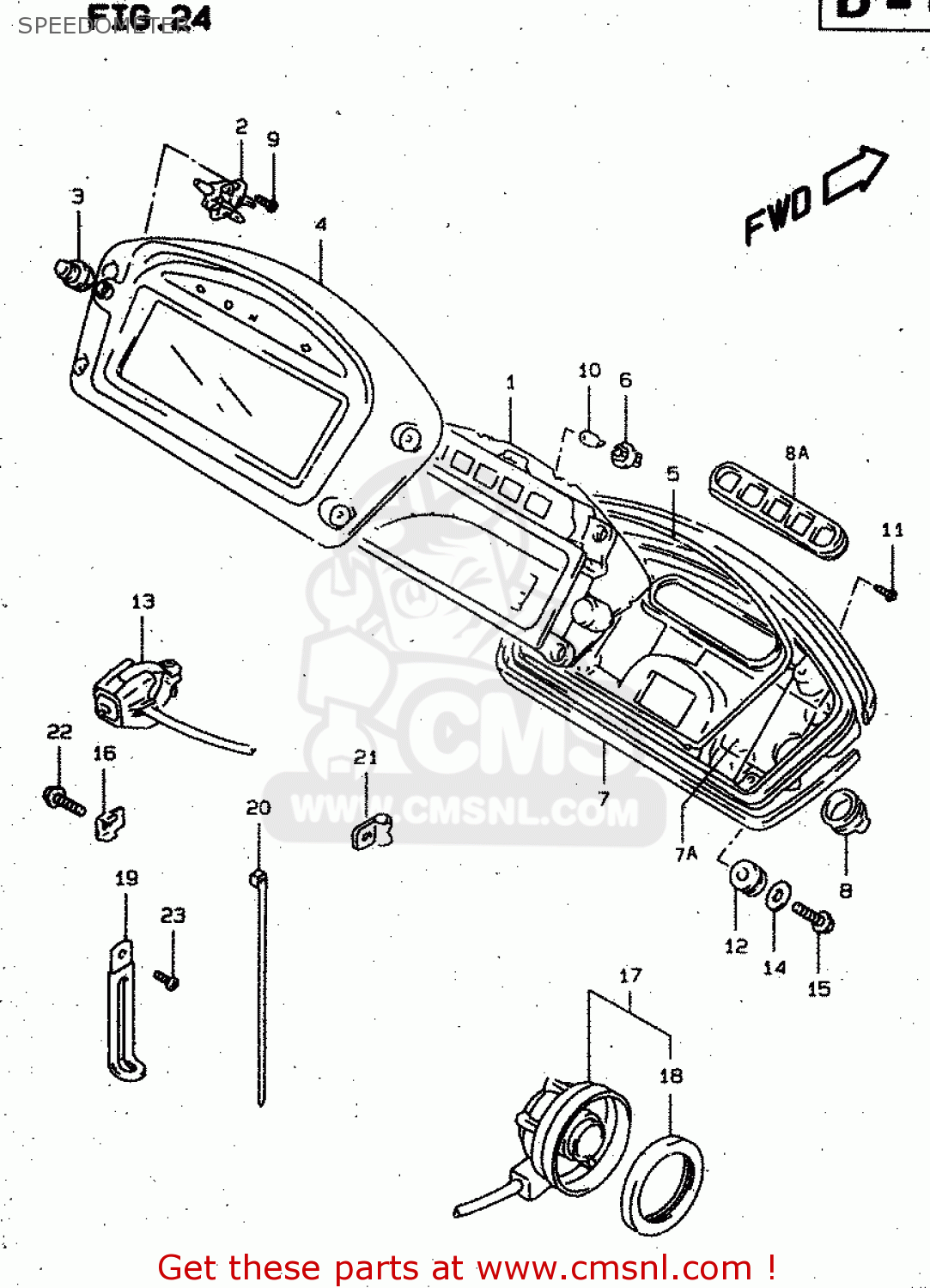

Speedometer diagram XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

SPEEDOMETER XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9
SPEEDOMETER XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9
SPEEDOMETER XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9
prices are in EUR
ref
part #
description
quantity
1
3412004F10
ref: 1
SPEED & TACHOMETER ASSY
€ 558.50
1
3412004F00
ref: 1
E4, E17, E18, E22, E
SPEED & TACHOMETER ASSY
3412004F00
€ 530.50
2
3412333E00
ref: 2
ATTACHMENT,SWITCH
3412333E00
€ 6.50
3
3412433E00
ref: 3
SWITCH,GUM
3412433E00
€ 5.50
4
3415004F00
ref: 4
VISOR
€ 60.50
5
3415304F00
ref: 5
PACKING
€ 7.50
6
3417233E00
ref: 6
SOCKET(T:6.5)
3417233E00
€ 5.00
7A
3411104F00
ref: 7A
CASE
€ 51.50
7
3418804F00
ref: 7
PACKING
€ 13.00
8
3419833E00
ref: 8
CAP,BLIND NO.1
3419833E00
€ 3.50
8A
3419804F00
ref: 8A
CAP,BLIND
€ 7.00
9
0913203005
ref: 9
SCREW(3X10)
0913203005
€ 1.50
10
0947112108
ref: 10
BULB(12V1.7W,T6.5)
0947112108
€ 2.00
11
0354104203
ref: 11
SCREW
0354104203
€ 2.50
12
3495533E00
ref: 12
CUSHION,METER
3495533E00
€ 3.00
13
3791004F00
ref: 13
E2
SWITCH ASSY,SPEEDOMETER
3791004F00
€ 38.00
14
0916005037
ref: 14
WASHER(5.5X16X1.2)
0916005037
€ 1.50
15
0216205083
ref: 15
SCREW
0216205083
€ 2.00
16
3493804F00
ref: 16
GUIDE,SENSOR LEAD
€ 3.00
17
3499004F00
ref: 17
SENSOR ,SPEED
€ 217.00
18
0928543001
ref: 18
OIL SEAL (43X58X7)
0928543001
€ 10.00
19
0940406432
ref: 19
<-09404-06429
CLAMP(L:65)
0940406432
€ 2.50
20
0940714407
ref: 20
CLAMP(L:145)
0940714407
€ 4.00
21
0940307401
ref: 21
CLAMP
0940307401
€ 3.00
22
0155005163
ref: 22
BOLT
€ 2.00
23
0214206103
ref: 23
SCREW 6X10
0214206103
€ 2.00
