MUFFLER

XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

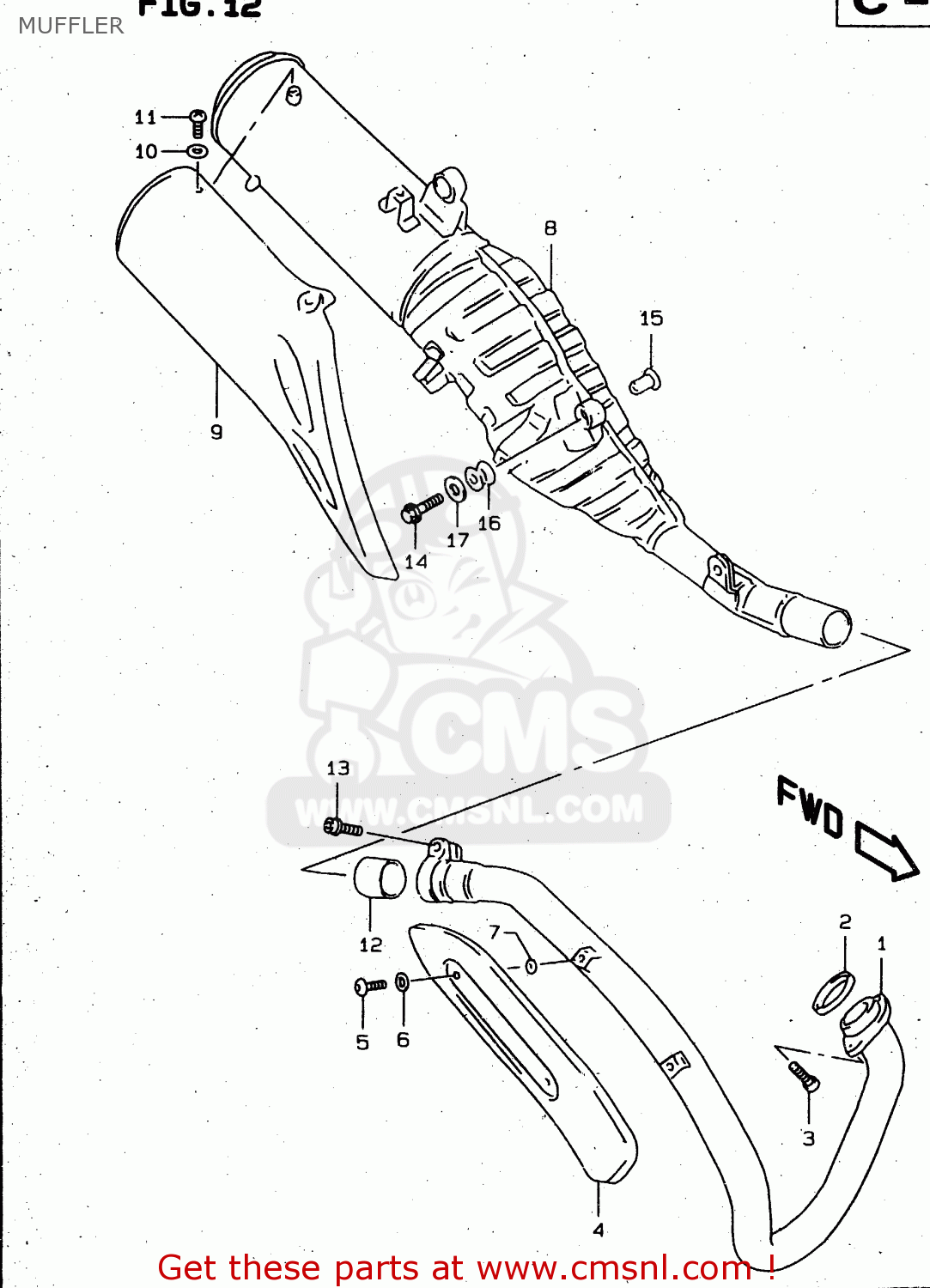

Muffler diagram XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

prices are in EUR

ref

part #

description

quantity

1415004F00
ref: 1

PIPE,EXHAUST

€ 412.50

1418122D01
ref: 2

GASKET,EXHAUST PIPE (NAS)

€ 9.00

0713008253
ref: 3

BOLT

€ 3.50

1418004F00
ref: 4

COVER,EXHAUST PIPE

€ 259.00

0913906078
ref: 5

SCREW(6X10)

€ 3.00

0916006082
ref: 6

WASHER(6.5X13X1.0)

€ 1.50

0916806122
ref: 7

GASKET(6X16X1.4) (NAS)

€ 2.50

1431004F00
ref: 8

BODY, MUFFLER

€ 606.00

1478004F00
ref: 9

COVER ASSY,MUFFLER

€ 116.50

0916006082
ref: 10

WASHER(6.5X13X1.0)

€ 1.50

0913906078
ref: 11

SCREW(6X10)

€ 3.00

1477132E00
ref: 12

CONNECTOR,MUFFLER

€ 12.50

0712008403
ref: 13

BOLT

€ 3.50

0910608131
ref: 14

BOLT(8X30)

€ 3.50

0918008151
ref: 15

SPACER(8.6X12X17.5)

€ 6.00

0932012043
ref: 16

CUSHION

€ 8.00

0916008057
ref: 17
MODEL V

WASHER (8.5X20X1.6)

€ 2.00

0916008135
ref: 17
MODEL W/X

WASHER(8.5X28X1.6)

€ 2.00
