FOOTREST

XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

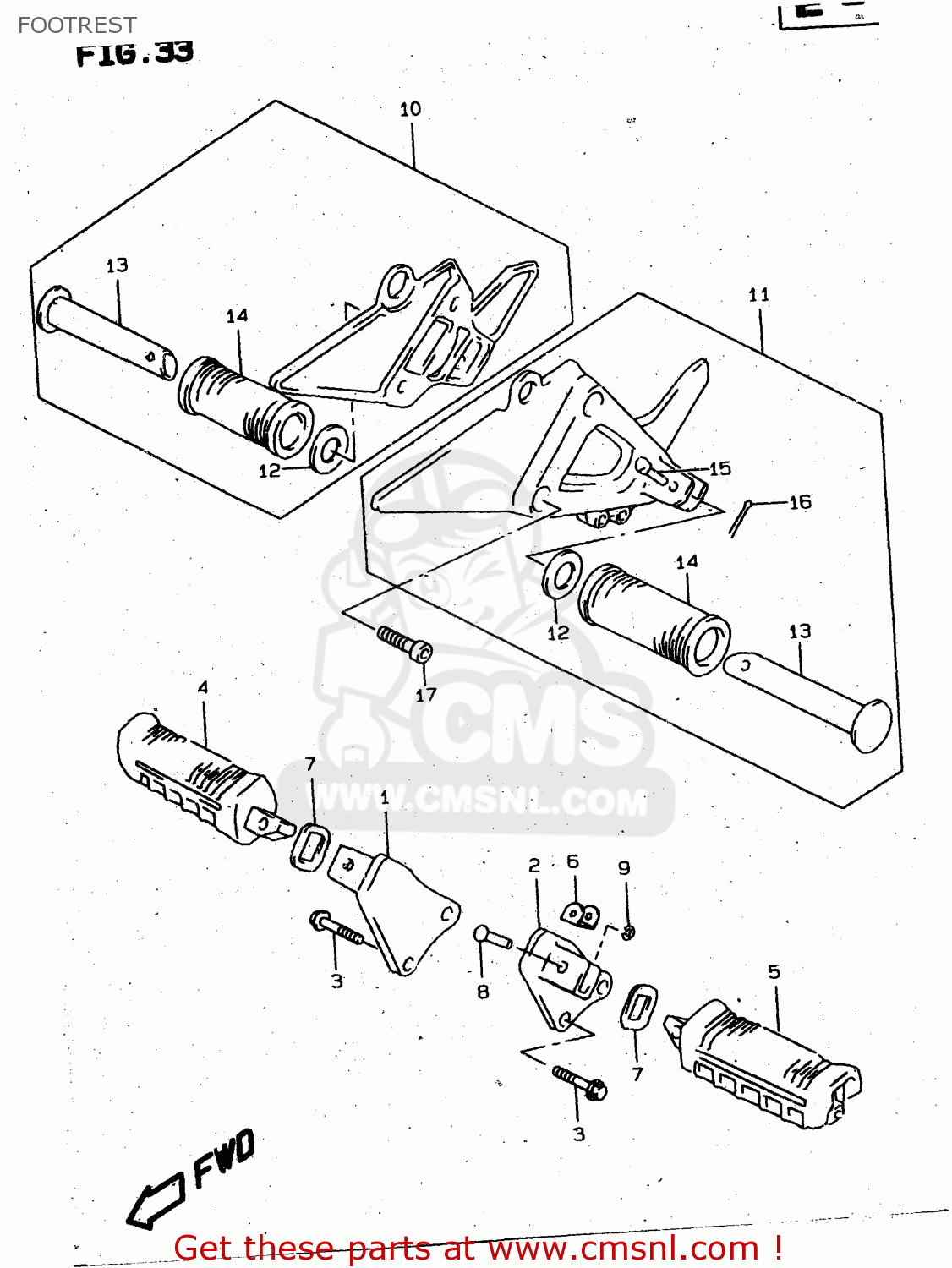

Footrest diagram XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

prices are in EUR

ref

part #

description

quantity

4351004F00
ref: 1

BRACKET,FR FOOTREST,R

€ 59.50

4352004F00
ref: 2

BRACKET,FR FOOTREST,L

€ 50.50

0910310218
ref: 3

BOLT(10X45)

€ 4.00

4355004F00
ref: 4

RUBBER,FRONT FOOTREST,RIGHT

€ 14.00

4356004F00
ref: 5

RUBBER,FRONT FOOTREST,LEFT

€ 23.50

4357004F00
ref: 6

CUSHION,FR FOOTREST

€ 17.00

4363134A01
ref: 7

WASHER,FOOTREST RUBBER

€ 6.50

0920806005
ref: 8

PIN

€ 3.00

0833211043
ref: 9

E-RING

€ 2.00

4360004F00
ref: 10

FOOTREST ASSY,PILLION,R

€ 137.50

4370004F00
ref: 11

FOOTREST ASSY,PILLION,L

€ 137.50

0916019006
ref: 12
MODEL V

WASHER (19.5X32X2)

€ 2.00

0916019024
ref: 12
MODEL W/X

WASHER(19.5X32X2)

€ 2.00

4361003001
ref: 13

BAR,FOOTREST RUBBER

€ 5.50

4361233200
ref: 14

RUBBER,PILLION FOOTREST

€ 4.50

0920006041
ref: 15

PIN

€ 3.00

0411120158
ref: 16

PIN

€ 1.50

0713008203
ref: 17

BOLT

€ 3.00
