OIL PIPE

XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

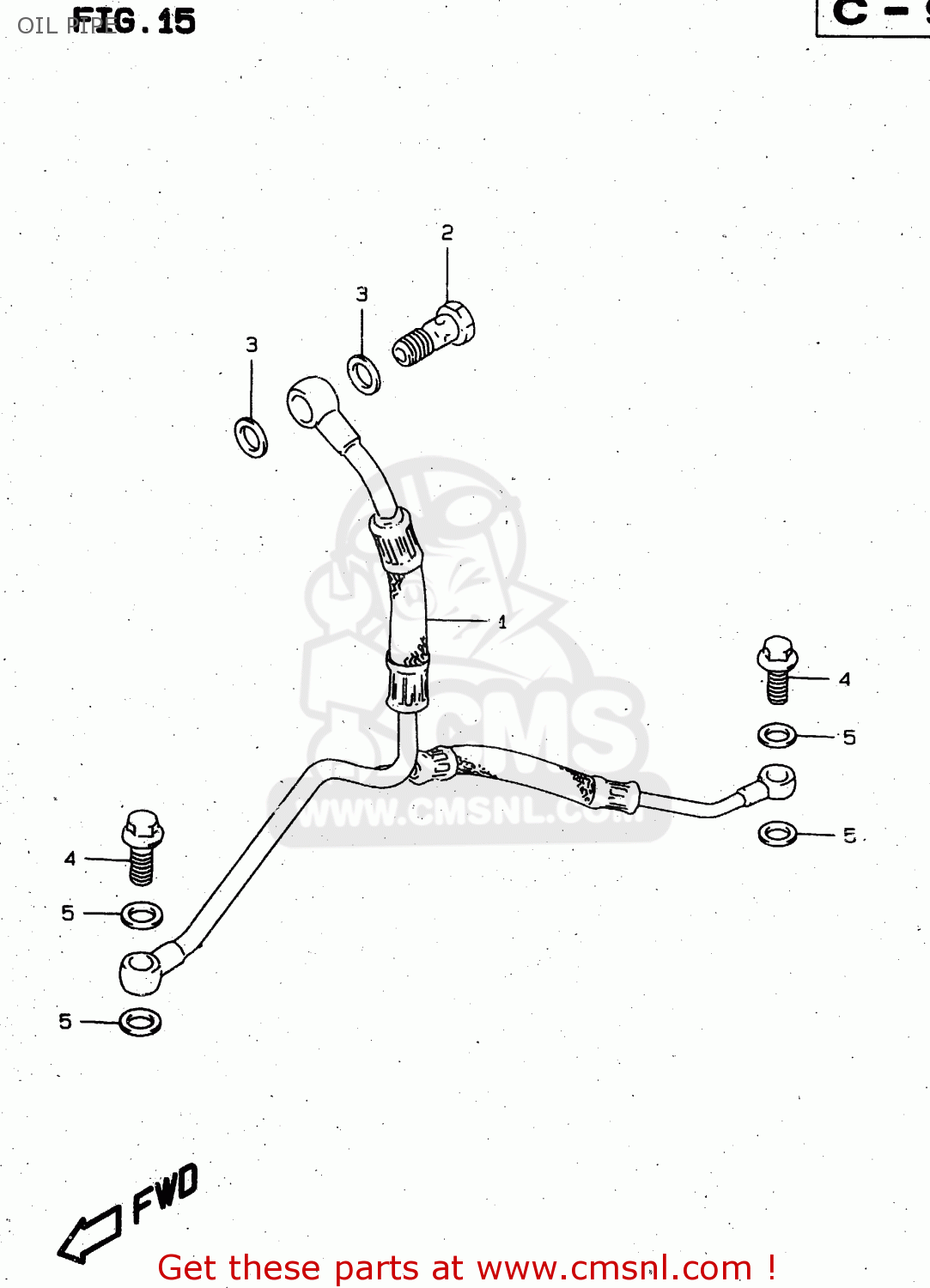

Oil pipe diagram XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

OIL PIPE XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

OIL PIPE XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

prices are in EUR

ref

part #

description

quantity

1

1648004F00
ref: 1

PIPE,T/M & CSHAFT OIL

€ 350.00

2

0936012010
ref: 2

BOLT UNION

€ 7.50

3

0916812017
ref: 3

GASKET(12X17X1) (NAS)

€ 2.00

4

0936010032
ref: 4

BOLT UNION

€ 3.00

5

0916810007
ref: 5

GASKET(10.1X16X1) (NAS)

€ 2.00
