STEERING STEM

XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

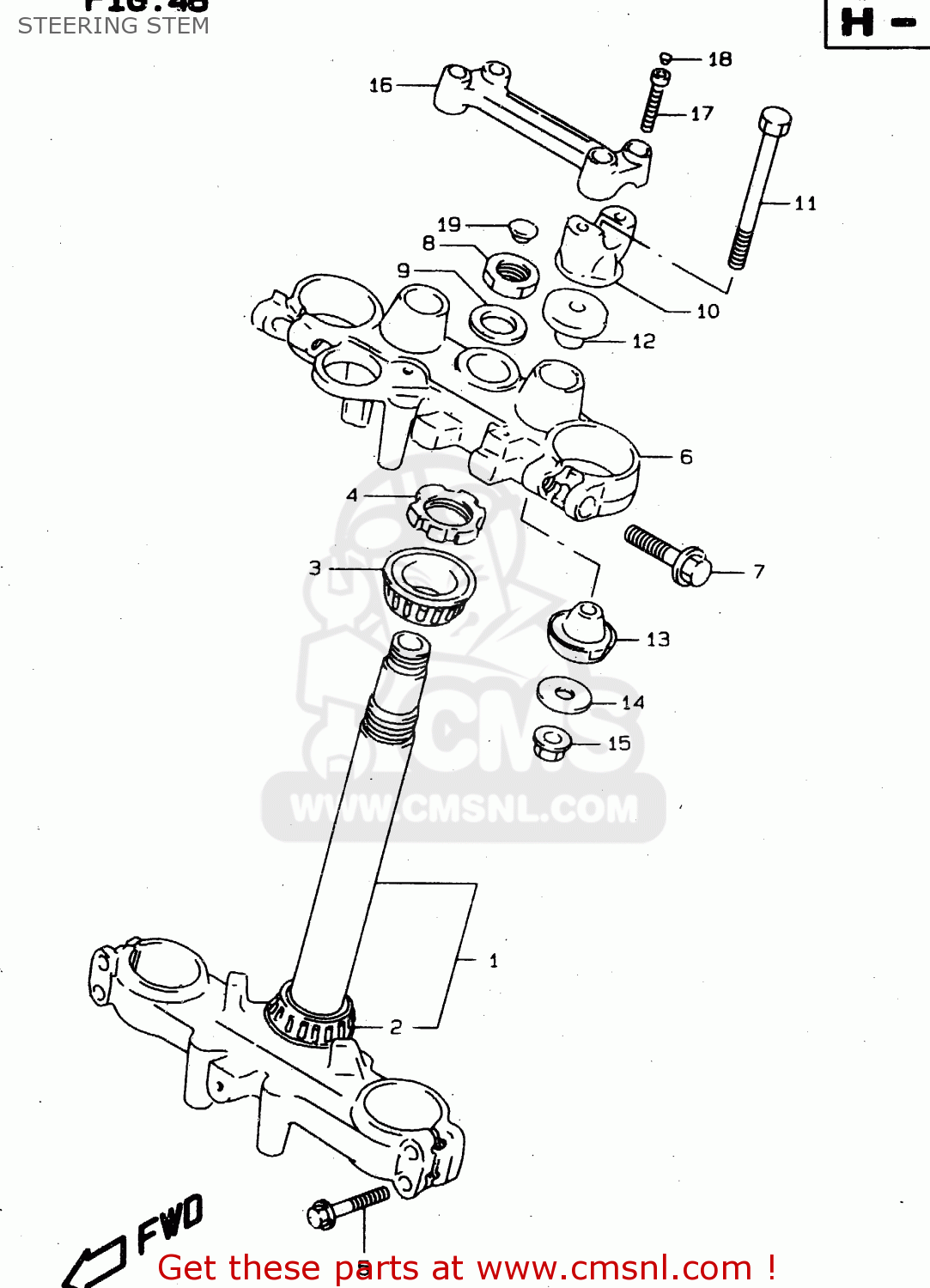

Steering stem diagram XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

prices are in EUR

ref

part #

description

quantity

5141004F00
ref: 1

STEM,STEERING

€ 731.50

0926530014
ref: 2

BEARING(30X52X16)

€ 49.50

0926530014
ref: 3

BEARING(30X52X16)

€ 49.50

5163128E00
ref: 4

NUT,STEERING

€ 11.00

0155008407
ref: 5

BOLT

€ 3.50

5131104F00
ref: 6

HEAD,STEERING STEM

€ 269.50

0155010407
ref: 7

BOLT

€ 3.50

5135304F00
ref: 8

NUT

€ 25.00

5135627C00
ref: 9

WASHER,STEM HEAD(24.5X34X1.6)

€ 2.50

5622112E00
ref: 10

HOLDER,HANDLE LWR

€ 33.50

5632128C00
ref: 11

BOLT

€ 6.50

5624114200
ref: 12

DAMPER,UPR

€ 32.00

5624214200
ref: 13

DAMPER,LWR

€ 21.50

5135640400
ref: 14

WASHER,HANDLEBAR HOLDER

€ 2.00

0831931107
ref: 15

NUT

€ 3.00

5621104F01
ref: 16

HOLDER,HANDLE UPR

€ 44.00

0713008307
ref: 17

BOLT

€ 4.50

0925006009
ref: 18

CAP(OD:14.5)

€ 3.50

0925012006
ref: 19

CAP(OD:20)

€ 3.00
