COWLING INSTALLATION PARTS

XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

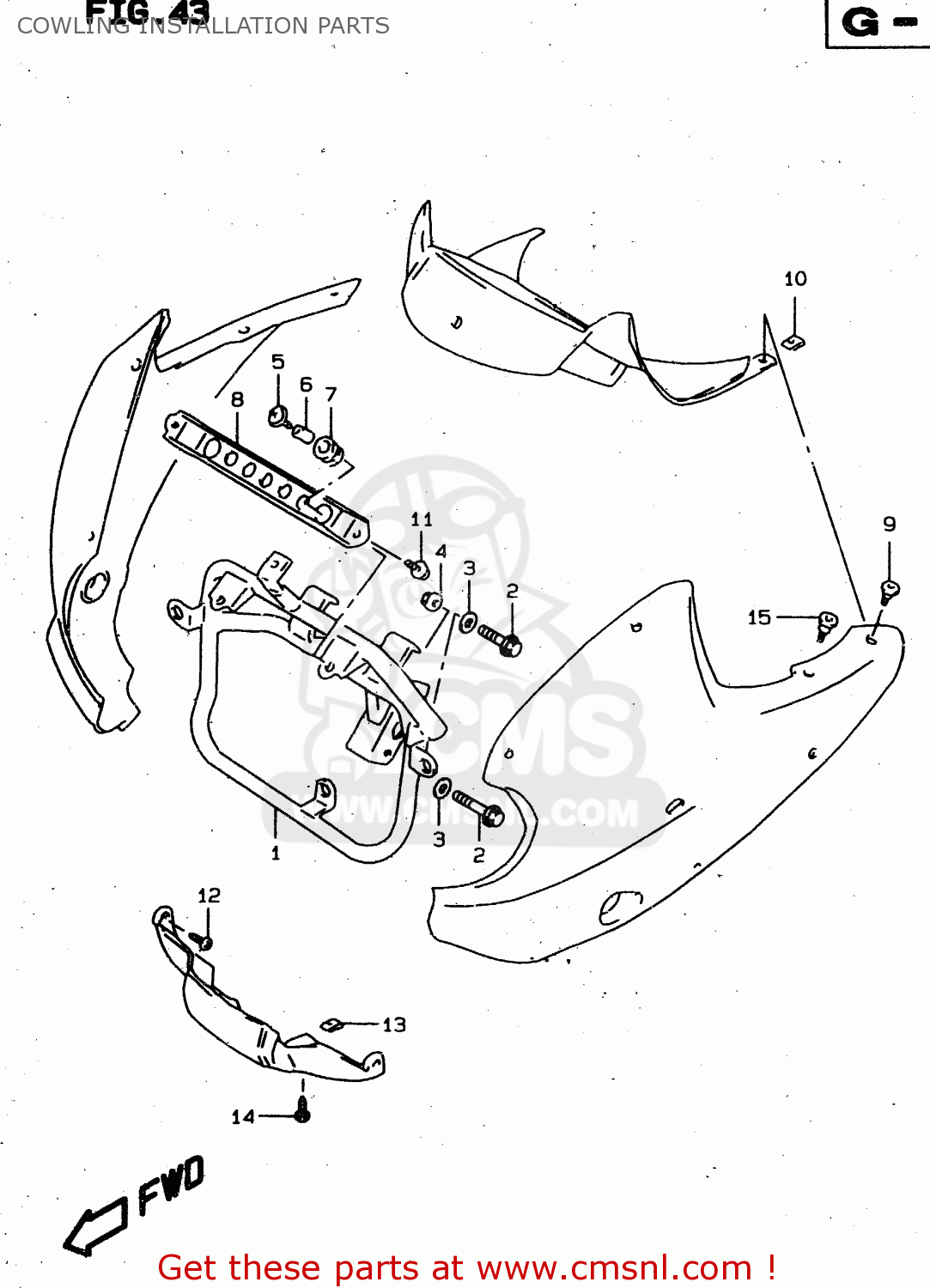

Cowling installation parts diagram XF650 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) / P9

prices are in EUR

ref

part #

description

quantity

9451004F00
ref: 1

BRACE,COWLING

€ 159.50

0910308068
ref: 2

BOLT 8X45

€ 4.50

0916408020
ref: 3

WASHER

€ 2.50

0831320083
ref: 4

NUT

€ 2.50

0913606085
ref: 5

SCREW (6X20) WITH WASHER

€ 2.50

0918006258
ref: 6

SPACER(6.5X9X6.7)

€ 3.00

0932009009
ref: 7

CUSHION

€ 5.00

9452004F00
ref: 8

BRACKET,COWLING UPR

€ 19.50

0913905054
ref: 9

SCREW(5X16)

€ 6.00

9448432B00
ref: 10

NUT,HEADLAMP HOUSING,UPPER

€ 4.00

0214205123
ref: 11

SCREW 5X12

€ 1.50

0324115123
ref: 12

SCREW

€ 2.50

0914805038
ref: 13

NUT

€ 2.50

0354105123
ref: 14

SCREW

€ 2.00

0913905055
ref: 15

SCREW(5X16)

€ 6.00
