AIR CLEANER

GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

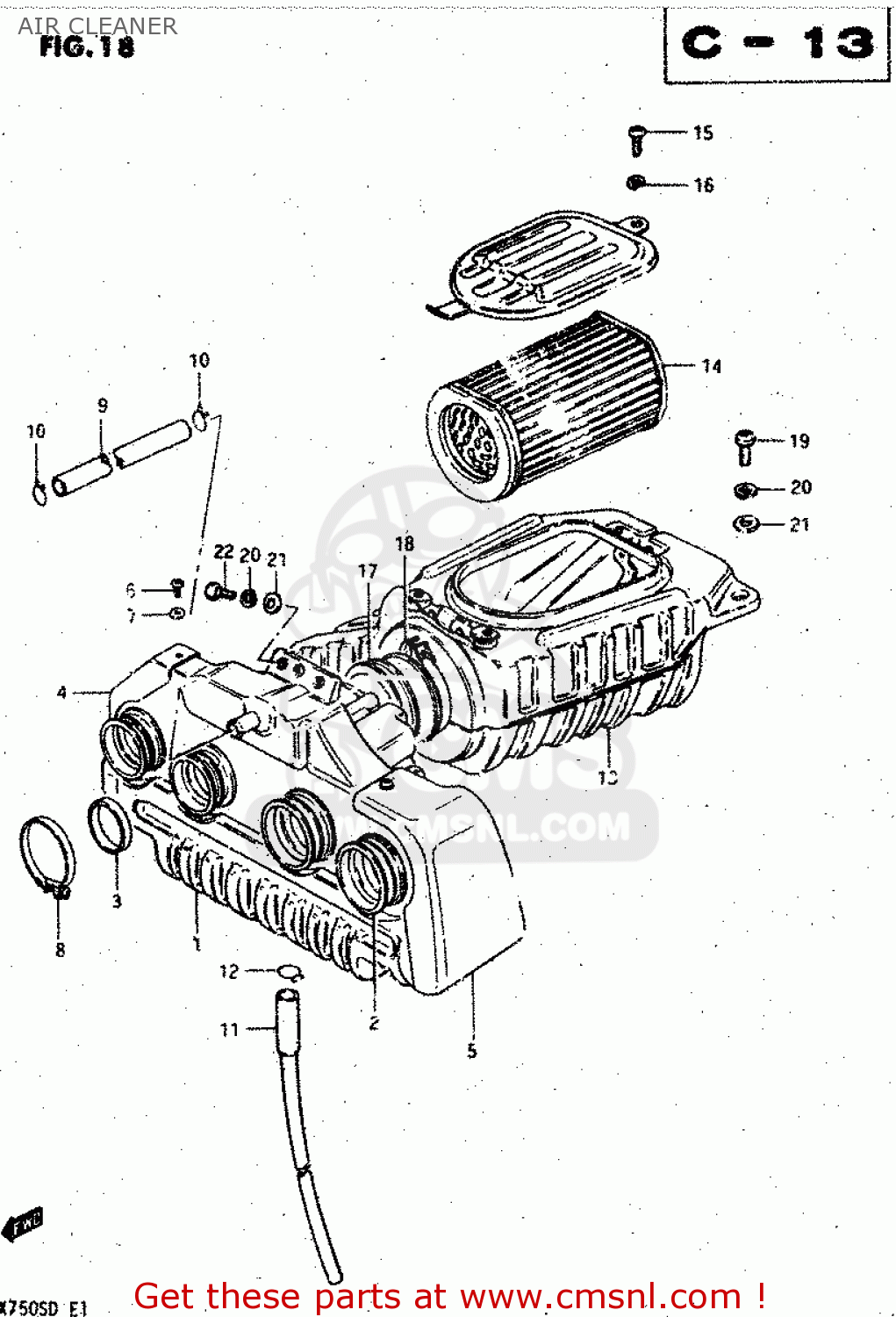

Air cleaner diagram GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

AIR CLEANER GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)
AIR CLEANER GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)
AIR CLEANER GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)
prices are in EUR
ref
part #
description
quantity
1
1371045500
ref: 1
CASE COMP,AIR CLEANER
€ 0.00
2
1388145500
ref: 2
TUBE,OUTLET
1388145500
€ 18.00
3
1388547030
ref: 3
RING,CARBURETOR AIR INLET HOSE
1388547030
€ 8.00
4
1383145500
ref: 4
COVER,AIR CLEA
1383145500
€ 30.50
5
1383245500
ref: 5
COVER
1383245500
€ 25.00
6
0211204068
ref: 6
SCREW 4X6
0211204068
€ 2.00
7
0832221048
ref: 7
WASHER
0832221048
€ 2.00
8
0940262306
ref: 8
CLAMP
€ 6.00
9
1385100220
ref: 9
TUBE,BREATHER
1385100220
€ 13.50
10
0940114301
ref: 10
CLIP
0940114301
€ 2.00
11
1387000010
ref: 11
DRAIN TUBE
€ 13.50
12
0940114301
ref: 12
CLIP
0940114301
€ 2.00
13
1370045810
ref: 13
CLEANER SET,AIR,REAR
1370045810
€ 176.50
14
1378045500
ref: 14
FILTER,AIR CLEANER
1378045500
€ 41.00
15
0211205128
ref: 15
SCREW
€ 2.50
16
0832121058
ref: 16
LOCK WASHER
0832121058
€ 2.00
17
1379549000
ref: 17
HOSE,AIR CLEANER
1379549000
€ 34.50
18
1379649000
ref: 18
BAND
1379649000
€ 6.00
19
0211206208
ref: 19
MODEL Z
SCREW
€ 2.00
20
0832121068
ref: 20
LOCK WASHER
0832121068
€ 2.50
21
0832211068
ref: 21
WASHER 6MM
€ 2.00
22-1
0110706208
ref: 22-1
MODEL Z
BOLT
0110706208
€ 2.00
22-2
0110706208
ref: 22-2
MODEL D
BOLT
0110706208
€ 2.00
