FRONT DAMPER (MODEL Z)

GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

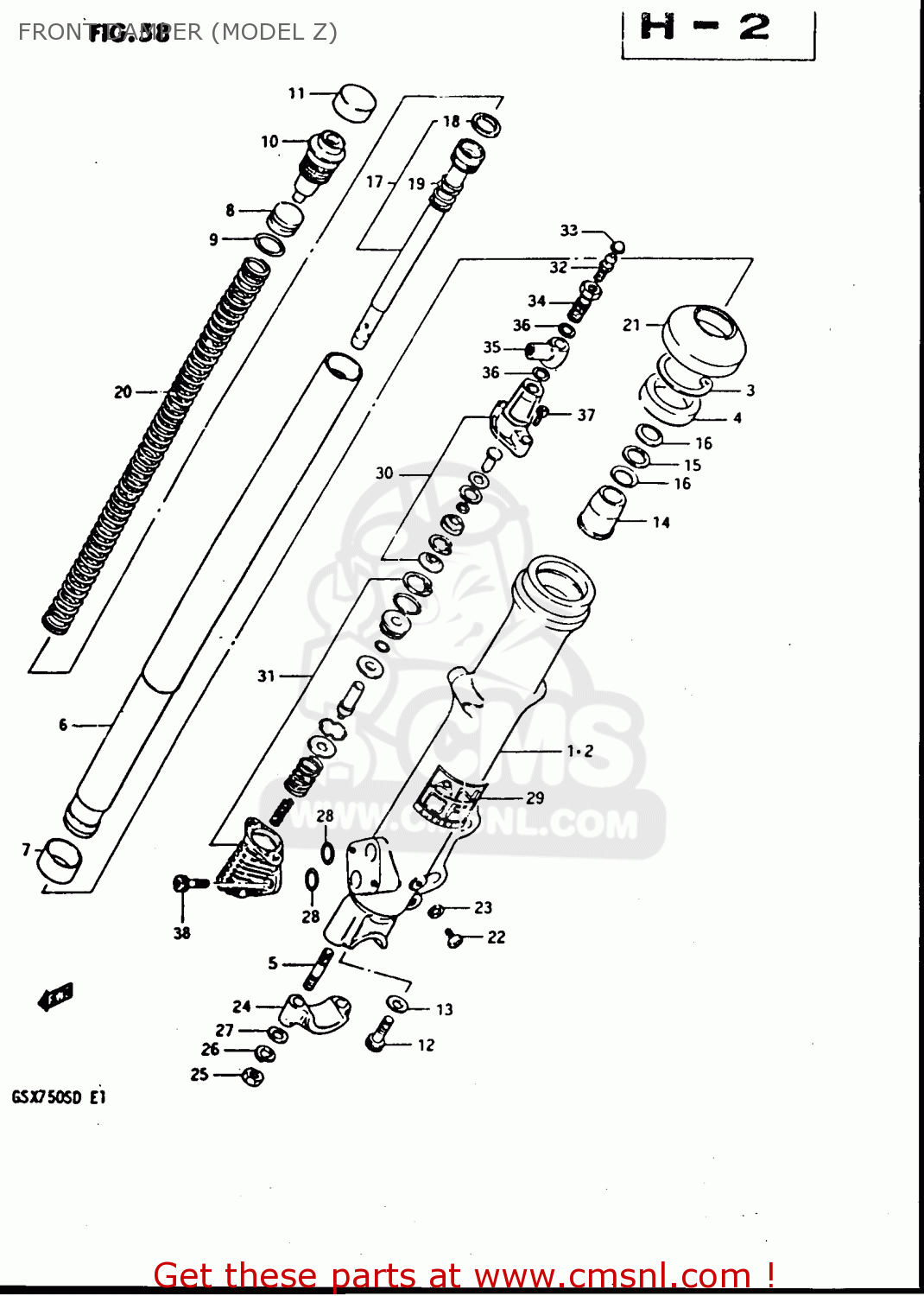

Front damper (model z) diagram GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

FRONT DAMPER (MODEL Z) GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)
FRONT DAMPER (MODEL Z) GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)
FRONT DAMPER (MODEL Z) GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)
prices are in EUR
ref
part #
description
quantity
0
5110349310
ref: 0
DAMPER ASSY, RH
€ 0.00
0
5110449310
ref: 0
DAMPER ASSY, LH
€ 0.00
1
5113049300
ref: 1
OUTER TUBE, RH
5113049300
€ 117.50
2
5114049300
ref: 2
OUTER TUBE, LH
5114049300
€ 142.50
3
5115640301
ref: 3
RING,STOPPER
5115640301
€ 4.50
4
5115349000
ref: 4
TO 51153-49001
OIL SEAL,FRONT FORK
5115349000
€ 16.50
5
0141108308
ref: 5
STUD 8X30
0141108308
€ 2.00
6
5111049300
ref: 6
TUBE,INNER
5111049300
€ 294.50
7
5112149200
ref: 7
PISTON
5112149200
€ 18.00
8
5117245110
ref: 8
PISTON,FREE
5117245110
€ 10.50
9
5111745110
ref: 9
O-RING
5111745110
€ 4.00
10
5135149200
ref: 10
CAP
5135149200
€ 59.00
11
5118949300
ref: 11
CAP,RUBBER
5118949300
€ 9.00
12
5114716510
ref: 12
BOLT,FORK CYLINDER(10X25)
5114716510
€ 3.50
13
5114841310
ref: 13
GASKET (NAS)
5114841310
€ 2.50
14
5119545420
ref: 14
PIECE,OIL LOCK
5119545420
€ 15.50
15
5112345420
ref: 15
WASHER
5112345420
€ 3.50
16
5112545420
ref: 16
SPRING,LEAF
5112545420
€ 3.50
17
5114649300
ref: 17
CYLINDER,FRONT FORK
€ 118.00
18
5119649000
ref: 18
RING,PISTON
5119649000
€ 9.00
19
5117749000
ref: 19
SPRING,REBOUND
5117749000
€ 7.50
20
5117149310
ref: 20
SPRING,FRONT FORK
€ 74.50
21
5117349002
ref: 21
SEAL,DUST
5117349002
€ 13.00
22
0211204088
ref: 22
SCREW
€ 1.50
23
5118303010
ref: 23
GASKET,DRAIN,PLUG (NAS)
5118303010
€ 3.00
24
5113249000
ref: 24
HOLDER,AXLE
5113249000
€ 30.00
25
0914008005
ref: 25
NUT (8MM)
0914008005
€ 1.50
26
0832121088
ref: 26
LOCK WASHER
0832121088
€ 2.00
27
0832221088
ref: 27
WASHER
0832221088
€ 2.00
28
5179944130
ref: 28
O RING
5179944130
€ 5.00
29
5114944130
ref: 29
LABEL
€ 5.50
30
5170044832
ref: 30
MODULATOR PARTS SET,FRONT
5170044832
€ 100.00
31
5170049811
ref: 31
VALVE SET,MODULATOR
5170049811
€ 122.00
32
5177844130
ref: 32
BREATHER,AIR
5177844130
€ 12.50
33
5177944130
ref: 33
CAP,BREADER
€ 6.00
34
5175349300
ref: 34
BOLT,UNION
€ 10.50
35
5176549300
ref: 35
SPACER,FRONT FORK MODULATOR
€ 7.50
36
0916110005
ref: 36
WASHER
0916110005
€ 2.00
37
5179744160
ref: 37
BOLT,FR FORK
€ 2.00
38
5179644130
ref: 38
BOLT,FRONT FORK
5179644130
€ 3.00
