CRANKCASE COVER (MODEL Z)

GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

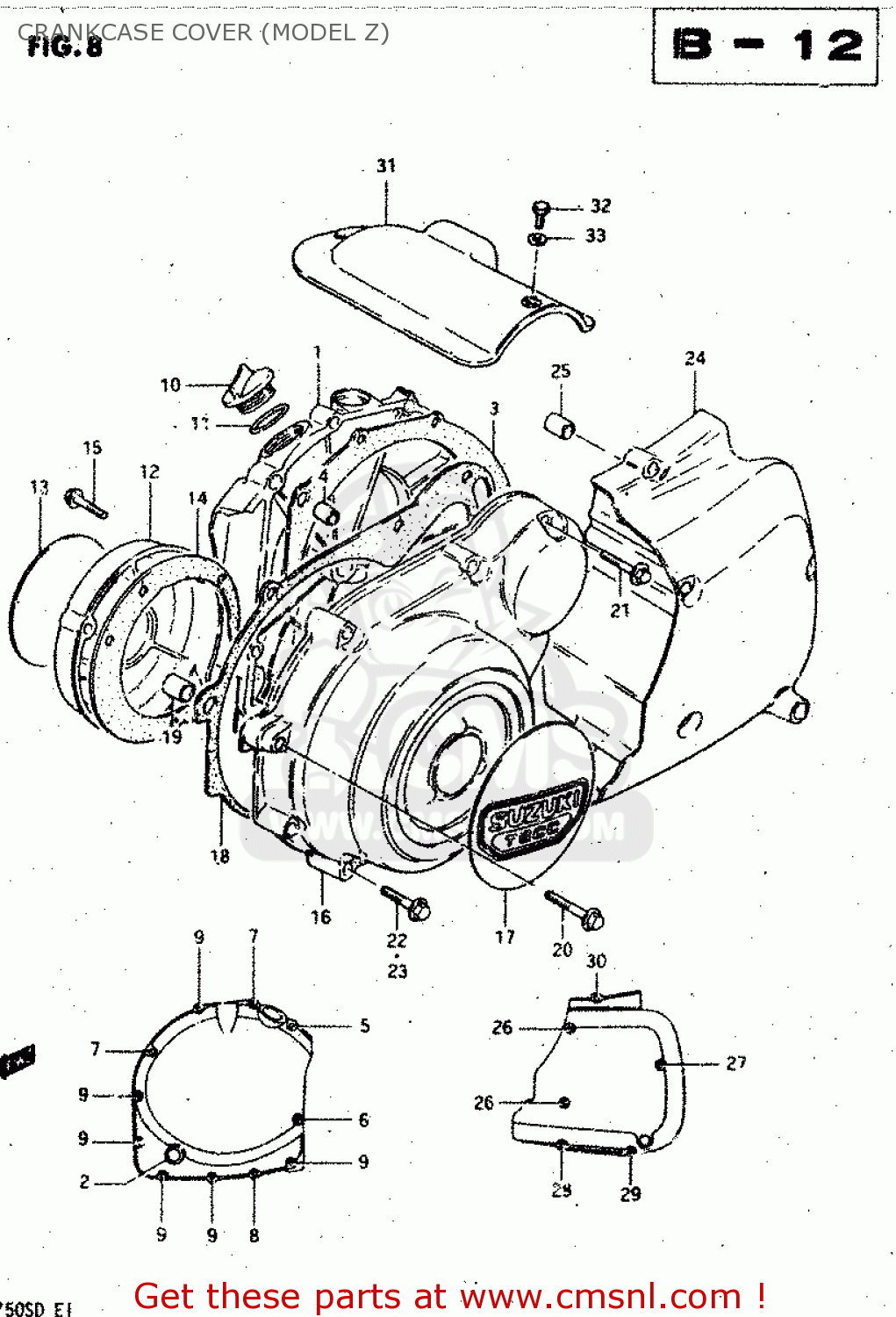

Crankcase cover (model z) diagram GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

CRANKCASE COVER (MODEL Z) GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

CRANKCASE COVER (MODEL Z) GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

prices are in EUR

ref

part #

description

quantity

1

1134045401
ref: 1

COVER,CLUTCH

€ 292.00

2

1197145010
ref: 2

LENS,OIL LEVEL CHECK

€ 13.00

3

1148245400
ref: 3

GASKET,CLUTCH COVER (MCA)

€ 20.00

4

0421109129
ref: 4

PIN

€ 2.00

5

0154706408
ref: 5

BOLT (6X40)

€ 2.50

6

0154706358
ref: 6

BOLT (6X35)

€ 2.50

7

0154706308
ref: 7

BOLT (6X30)

€ 2.50

8

0154706258
ref: 8

BOLT

€ 2.50

9

0154706208
ref: 9

BOLT (6X20)

€ 2.50

10

0925930001
ref: 10

CAP

€ 8.50

11

0928032005
ref: 11

O RING(D:2.2,ID:32)

€ 2.00

12

1138149202
ref: 12

COVER,CONTACT BREAKER

€ 49.00

13

6823549200
ref: 13

EMBLEM

€ 19.50

14

1149149200
ref: 14

GASKET,CONTACT BREAKER COVER (NAS)

€ 14.50

15

0154705308
ref: 15

BOLT (5X30)

€ 2.00

16

1135145401
ref: 16

COVER,MAGNETO

€ 293.00

17

6825349200
ref: 17

EMBLEM

€ 0.00

18

1148349200
ref: 18

GASKET,MAGNETO COVER (MCA)

€ 13.00

19

0920613001
ref: 19

PIN

€ 2.50

20

0154706458
ref: 20

BOLT

€ 2.50

21

0154706408
ref: 21

BOLT (6X40)

€ 2.50

22

0154706358
ref: 22

BOLT (6X35)

€ 2.50

23

0154706308
ref: 23

BOLT (6X30)

€ 2.50

24

1136049201
ref: 24

COVER,ENGINE SPROCKET

€ 127.00

25

0421109129
ref: 25

PIN

€ 2.00

26

0154706958
ref: 26

BOLT 6X95

€ 4.00

27

0154706858
ref: 27

BOLT (6X85)

€ 2.50

28

0154706708
ref: 28

BOLT (6X70)

€ 2.50

29

0154706558
ref: 29

BOLT (6X55)

€ 2.50

30

0154706308
ref: 30

BOLT (6X30)

€ 2.50

31

1138249002
ref: 31

COVER,STARTER MOTOR

€ 43.00

32

0110705108
ref: 32

BOLT 5X10

€ 1.50

33

0832221058
ref: 33

WASHER

€ 2.50
